MTD016538

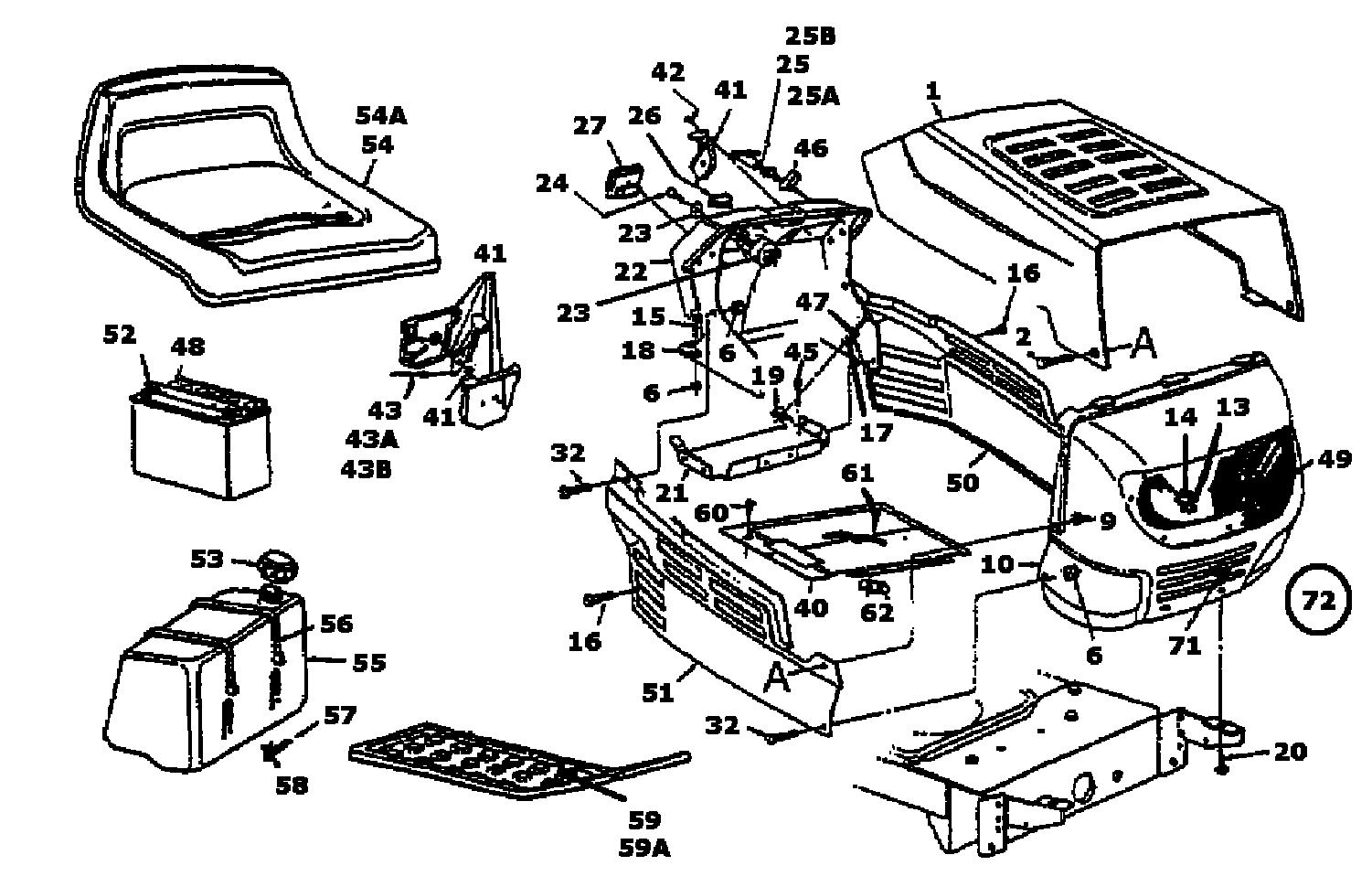

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD016538

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 783-0250-0638 HOOD:STY'0'W/LOUVERS-FORME 783-0250 £177.22 Add
002 738-0952A SHOULD. SCREW .375x.125:1/4-20 £3.70 Add
006 712-0271 NUT:SEMS:1/4-20 £3.03 Add
009 712-3027 LOCK NUT £2.79 Add
010 783-0156A GRILL:3 STYLE N/A POA
013 725-0963 BULB £7.18 Add
014 725-1651 LAMP SOCKET, LONG £24.91 Add
015 710-0703 SCR:CRG:1/4-20:.75:GR5 £3.07 Add
016 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
017 736-0173 WASH:FL:.28ID:.74OD:.063 £3.31 Add
018 726-0233 NUT:PUSH:.25 ID X .50 OD £3.58 Add
019 712-0185 ZIP TWIST FASTENER (FOR Ò 1/4 £4.62 Add
020 710-3008 HEX BOLT £3.03 Add
021 17632A-0637 BRKT:BAT:SUPT 17632A £24.41 Add
022 731-1096B Instrument panel £92.72 Add
023 725-0267B IGNITION SWITCH £25.04 Add
024 725-0201 IGNITION KEY £6.47 Add
025 746-0616A CHOKE CONTROL CABLE ASSY £12.71 Add
026 725-0634 SW:ROCKER £19.29 Add
027 725-0925 AMMETER 620 £30.37 Add
032 710-0924 TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE) N/A
040 17286B COVER-HARD TOP (OBSOLETE) £56.26 Add
041 931-0823A THROTTLE CONTROL BOX ASSY £25.49 Add
042 710-0779A SELF TAP SCREW £3.58 Add
043 746-0638 CABLE-THROTTLE £11.28 Add
045 710-0603 SCR:B:5/16-12:0.500:HXINDWSH £11.34 Add
046 17782 CHOKE CABLE RETAINER CLIP £13.39 Add
047 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add
048 759-3750 NO LONGER AVAILABLE N/A POA
049 783-0265A637 ENGINE BELT GUARD N/A POA
050 783-0151 END PLATE £103.27 Add
051 783-0150A PANEL, SIDE 7CU FT 783-0150 £108.34 Add
052 EPB3118 BATTERY Y50-N18L-A2 (OBSOLETE) (OBSOLETE) N/A
053 751-0603A CAP:FUEL £9.01 Add
054 757-04107 SEAT £187.38 Add
055 751-0555B TANK:FUEL:1.5 GAL £80.00 Add
056 726-0209 NO LONGER AVAILABLE N/A POA
057 751-10349-54 FUEL LINE HOSE BLACK £25.38 Add
058 726-0205 HOSE CLAMP 1/2 INCH DIA. £3.44 Add
059 731-0909 PAD-LH FOOT £31.52 Add
060 710-1388 SCREW £3.23 Add
061 710-0227 SCR:AB:#8-18:0.500:HXINDWH £3.07 Add
062 726-0211 U NUT £3.96 Add
071 726-0211 U NUT £3.96 Add
072 629-0309 HARN ASM:600/700:12.5 HDLIGHT £16.55 Add
25A 746-0614A CHOKE CONTROL £21.70 Add
25B 746-3021 CHOKE CONTROL £37.35 Add
43A 746-0634 THROTTLE CABLE £17.09 Add
43B 746-0638 CABLE-THROTTLE £11.28 Add
54A 757-0348A SEAT-MED BACK BLACK 757-0348 £317.51 Add
59A 731-0910 PAD-RH FOOT £42.25 Add
