FG015_0160

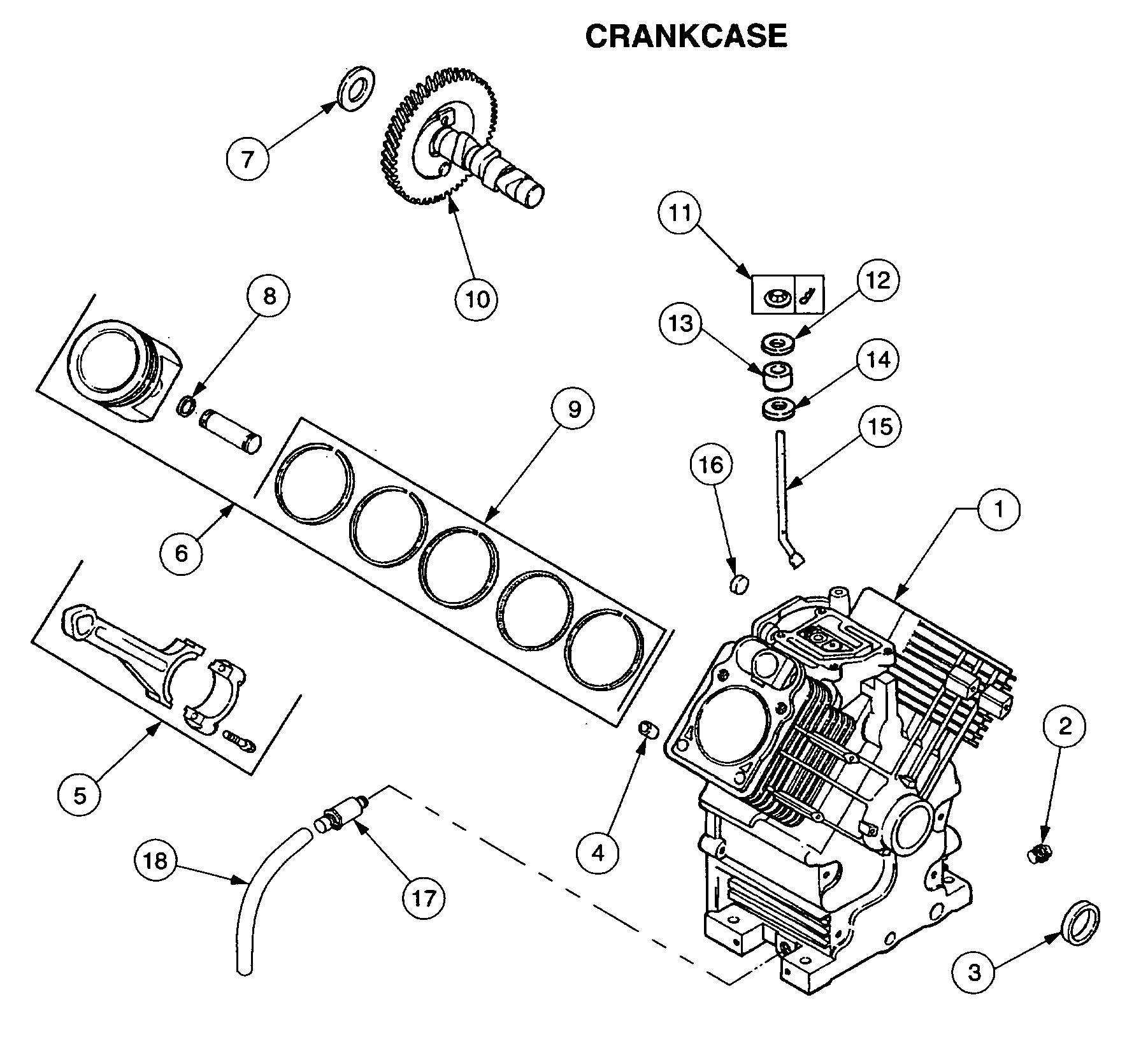

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG015_0160

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
KH-62588 COMPLETE ENGINE N/A POA
KH-24-522-04 SHORT BLOCK (6MM) N/A POA
KH-24-522-130 SHORT BLOCK (8MM) N/A POA
KH-24-018-09 N/A POA
751-3142 CAP:DRAIN:OIL £18.69 Add
KH-24-755-107 GASKET SET N/A POA
001 KH-24-782-01 CYLINDER BLOCK, (MINIBLOCK) (6MM) N/A POA
001 KH-24-782-15 MINIBLOCK N/A POA
002 KH-X-75-10 CONNECTOR £4.29 Add
003 KH-24-032-01 SEAL-OIL £15.87 Add
004 KH-12-380-17 BUSHING N/A POA
005 KH-24-067-13 ROD, CONNECTING, STD N/A POA
005 KH-24-067-14 ROD-CONNECTING .010 £150.05 Add
006 KH-24-874-01 PISTON W/RING SET, STD N/A POA
006 KH-24-874-02 PISTON W/RINGS 010 £266.20 Add
006 KH-24-874-03 PISTON W/RINGS 020 £258.51 Add
006 KH-24-874-14-S PISTON W/RING SET, .08MM N/A POA
007 KH-12-422-09 SHIM-CAMSHAFT .032 N/A POA
007 KH-12-422-13 SHIM-CAMSHAFT .040 N/A POA
007 KH-12-422-07 SHIM-CAMSHAFT .028 N/A POA
007 KH-12-422-08 SHIM-CAMSHAFT .030 N/A POA
007 KH-12-422-10 SHIM-CAMSHAFT .034 N/A POA
007 KH-12-422-11 SHIM-CAMSHAFT .036 N/A POA
007 KH-12-422-12 SHIM-CAMSHAFT .038 N/A POA
008 KH-24-018-01 RETAINER-PISTON £5.75 Add
009 KH-24-108-01 RING SET, STD N/A POA
009 KH-24-108-02 RING SET .010 £151.99 Add
009 KH-24-108-03 RING SET .020 £151.99 Add
010 KH-24-012-10-S CAMSHAFT ASSEMBLY N/A POA
011 KH-12-380-04 PIN, GOVERNOR HITCH £3.12 Add
012 KH-M-631005 WASHER £2.59 Add
012 KH-M-931010 N/A POA
013 KH-12-032-01 SEAL £12.38 Add
013 KH-28-032-09 N/A POA
014 KH-X-25-102 WASHER. 1.59x1.032x.060 £5.13 Add
014 KH-24-468-15 washer N/A POA
015 KH-24-144-01 SHAFT, GOV. CROSS (6MM) £62.44 Add
015 KH-24-144-33 N/A POA
016 KH-52-139-09 PLUG-VENT N/A POA
017 751-10517A OIL DRAIN £32.40 Add
018 751-3141-12 HOSE OIL DRAIN N/A POA
