FG015_0010

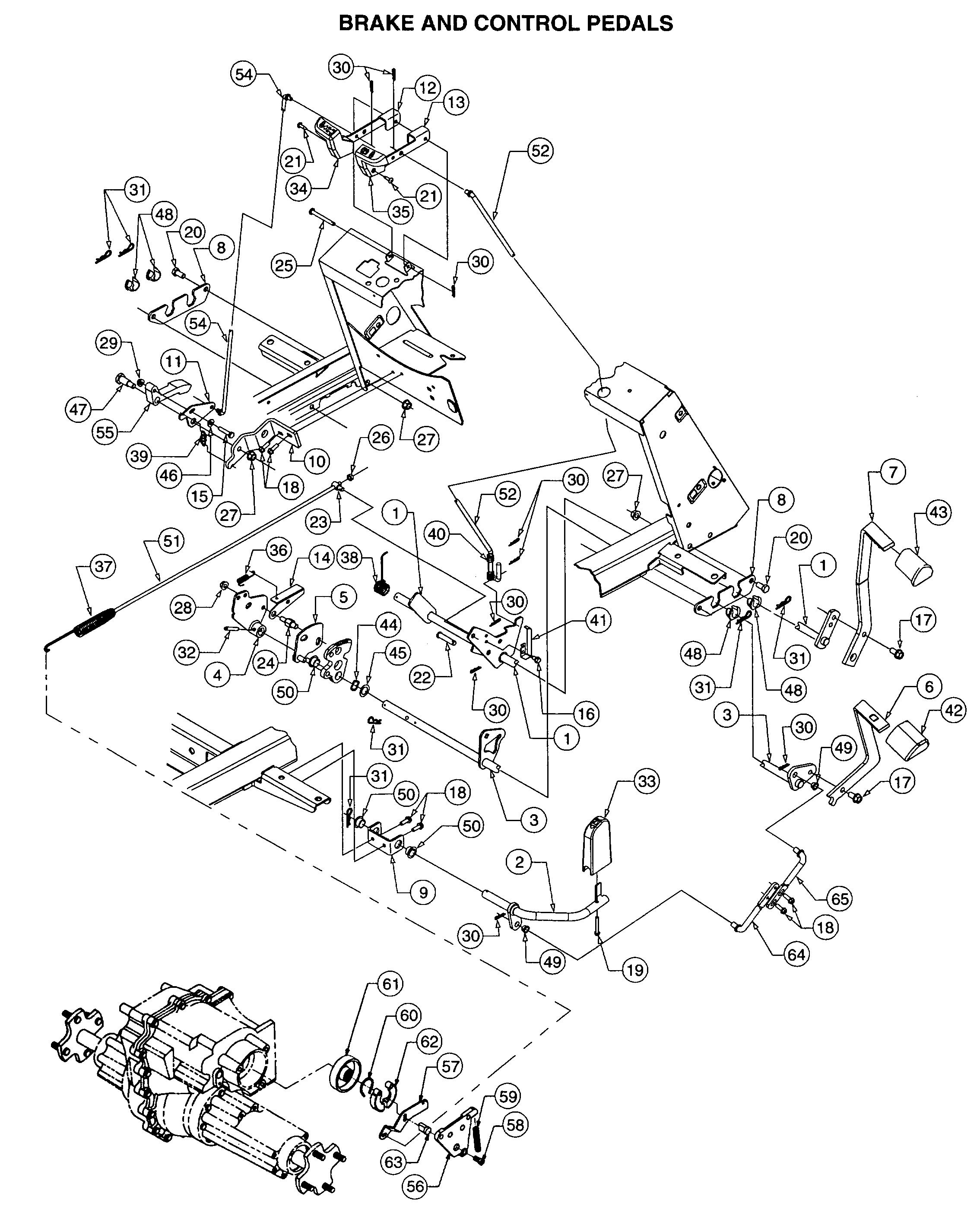

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG015_0010

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0321A SHAFT ASSY.-BRAKE £147.53 Add
002 603-0412 PEDAL-REVERSE £114.91 Add
003 603-0697 SHAFT ASSY. FWD/REV £87.83 Add
004 603-0419 CAM ASSY. CONTROL £97.29 Add
005 603-0421A PLATTE £74.72 Add
006 703-2570A-0716 PEDAL, FORWARD N/A POA
007 703-2573A-0716 PEDAL, BRAKE N/A POA
008 703-2804 PLATE-BEARING MOUNTING £18.56 Add
009 703-2938 IDLER BRACKET ASSY. £46.12 Add
010 703-2941 BRACKET-HOUSING BRACE £23.27 Add
011 703-2942 ADJUSTING PLATE £7.53 Add
012 703-2962 LEVER-CRUISE £12.79 Add
013 703-2963 LEVER, PARK BRAKE ENGAGEMENT £12.79 Add
014 703-2965 ACTUATOR-REV SWITCH £11.03 Add
015 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.93 Add
016 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
017 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £5.77 Add
018 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
019 710-0796 SCREW £4.64 Add
020 710-0216 HHCS:3/8-16:.75:GR5:STD £2.95 Add
021 710-3009 SCR:T:#10-24:0.750:PANPHI N/A POA
022 711-0415 CLEVIS PIN £4.44 Add
023 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £18.73 Add
024 711-1138 STUD-ACTUATOR £11.38 Add
025 711-3295 PIN,CLEVIS,.25X2.38LG £4.38 Add
026 712-0271 NUT:SEMS:1/4-20 £2.68 Add
027 712-0431 NUT £2.71 Add
028 712-3004A HEX FLANGE NUT £2.52 Add
029 712-3027 LOCK NUT £2.38 Add
030 714-0104 PIN INTERNAL COTTER £2.36 Add
031 714-0145 R CLIP £2.46 Add
032 715-0114A SPRING PIN 715-0114 £4.45 Add
033 731-3205 PAD-REVERSE PEDAL £23.56 Add
034 731-3206 HANDLE £19.32 Add
035 731-3207 KNOB-BRAKE LOCK £17.25 Add
036 732-0418 SPR:EXTN:.38 OD X 2.10 £4.38 Add
037 732-0463A SPRING, GOVERNOR £19.05 Add
038 732-0756A SPR:TORSN: £6.03 Add
039 732-0824 Spring £5.66 Add
040 732-3099 spring £3.21 Add
041 732-3117 ACTUATOR NEUTRAL SWITCH £9.32 Add
042 735-3048 PAD,FORWARD FOOT CONTROL £11.25 Add
043 735-3049A FOOTBRAKE PAD £19.70 Add
044 736-0174 WASHER £2.89 Add
045 736-0349 WASHER:SHIM:.630x1.000x.020:HD £2.95 Add
046 736-0463 WASH:FLAT: .250 x .630 x .052 N/A POA
047 738-0145 SCREW-SHLD £7.66 Add
048 741-3065A BRG:HEX FLG:.628 ID:SPLIT £6.24 Add
049 741-3073 BEARING, HEX FLANGE £4.84 Add
050 741-3074 BRG:FLG:.626x.938x.344 £6.75 Add
051 747-3216 ROD £42.24 Add
052 747-3219 Base pin £42.24 Add
054 747-3307 ROD-CRUISE CONTROL £28.21 Add
055 748-3060 LATCH-CRUISE £71.48 Add
056 618-3060 PLATE,BRAKE £46.02 Add
057 703-2191 BRACKET-PTO £7.53 Add
058 710-3262 SCREW,LOW HD CAP,3/8-16X.75 £17.51 Add
059 732-0152 spring £3.51 Add
060 732-3077 SPRING,BRAKE £3.64 Add
061 761-3019 Brake drum £36.42 Add
062 761-3020 BRAKE SHOE £32.03 Add
063 761-3028 FITTING,5/16SAE5/32TUBE £16.52 Add
064 747-3341A ROD-REAR CONNECTING £37.21 Add
065 747-3383 ROD:CONN:FRT £43.44 Add
