MTD009983

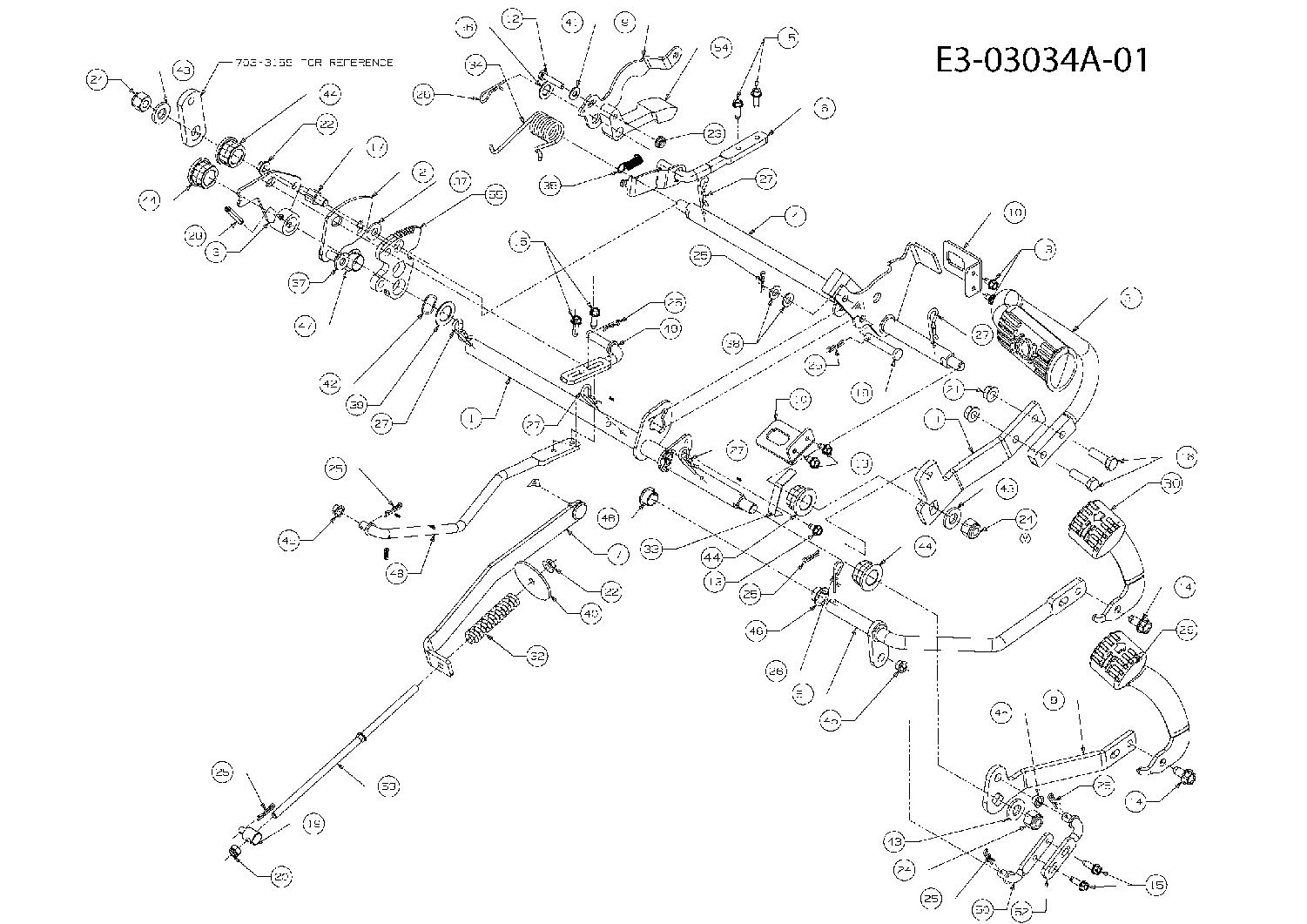

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0379	SHAFT ASSY-PEDAL	£83.15	Add
002	603-0421A	NO LONGER AVAILABLE	N/A	POA
003	603-0437	CAM ASSY-CLUTCH	£70.15	Add
004	603-0445A	BRAKE SHAFT	£179.39	Add
005	603-0449B	SHAFT ASM-REVERSE	£117.67	Add
006	603-0634	ROD ASSY-CRUISE	£173.45	Add
007	603-0738	LEVER, PARK BRAKE ENGAGEMENT	£55.59	Add
008	703-3012	MOUNTING PLATE - PEDAL	£29.20	Add
009	703-3020	BRACKED-ROD ADJUSTMENT	£12.86	Add
010	703-3152	BRACKET-REV SWITCH	£8.54	Add
011	703-3156A	LINK-BRAKE PEDAL	N/A	POA
012	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
015	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
016	710-3005	BOLT	£3.24	Add
017	711-04035	Bolt	£44.63	Add
018	711-0679A	CLEVIS PIN	£6.70	Add
019	711-1530	FERRULE:.325 ID x .312 OD	£24.80	Add
020	712-0429	NUT HEX.INS L NUT	£4.92	Add
021	712-0431	NUT	£3.20	Add
022	712-3004A	HEX FLANGE NUT	£2.97	Add
023	712-3027	LOCK NUT	£2.79	Add
024	712-3058	NUT-HEX CENTER LOCK 1/2-20	£15.75	Add
025	714-0104	PIN INTERNAL COTTER	£2.78	Add
026	714-0145	R CLIP	£2.78	Add
027	714-0147	COTTER PIN	£3.51	Add
028	715-0114A	SPRING PIN 715-0114	£5.15	Add
029	731-3247	PEDAL-FORWARD	£87.61	Add
030	731-3248	PEDAL-REVERSE	£83.30	Add
031	731-3249A	BRAKE PEDAL	£136.72	Add
032	732-0324	NO LONGER AVAILABLE	N/A	POA
033	732-0859A	Spring	£21.79	Add
034	732-0871	Spring	£8.85	Add
035	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
036	736-0160	WASH:FLAT:.530x.930x.050	£3.39	Add
037	736-0300	WASHER	£2.81	Add
038	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
039	736-0287	FLAT WASHER .78" X 1.25" X .062"	£7.92	Add
040	736-0418A	FLAT WASHER .34 ID X 2.25 OD X	£5.81	Add
041	736-0463	WASH:FLAT: .250 x .630 x .052	£3.31	Add
042	736-0621	WASHER-WAVE	£6.32	Add
043	736-3019	WASHER FLAT	£5.39	Add
044	741-0598	FLANGE BEARING	£11.63	Add
045	741-3073	BEARING, HEX FLANGE	£7.51	Add
046	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
047	741-3084	BUSH	£11.51	Add
048	747-3319	ROD-REAR CONNECTOR	£51.75	Add
049	747-3320	ROD-FRONT CONNECTOR	£30.70	Add
050	747-3324	ROD-FWD PED RR CONN	£55.05	Add
051	747-3325B	SHAFT REVERSE	£117.67	Add
052	747-3353	ROD-FWD PED FRT CONN	£44.23	Add
053	747-3422	ROD-BRAKE	£68.04	Add
054	748-04001	LATCH:CRUISE	£83.70	Add
055	748-3080A	PLATE-CRUISE	£66.44	Add
