MTD017796

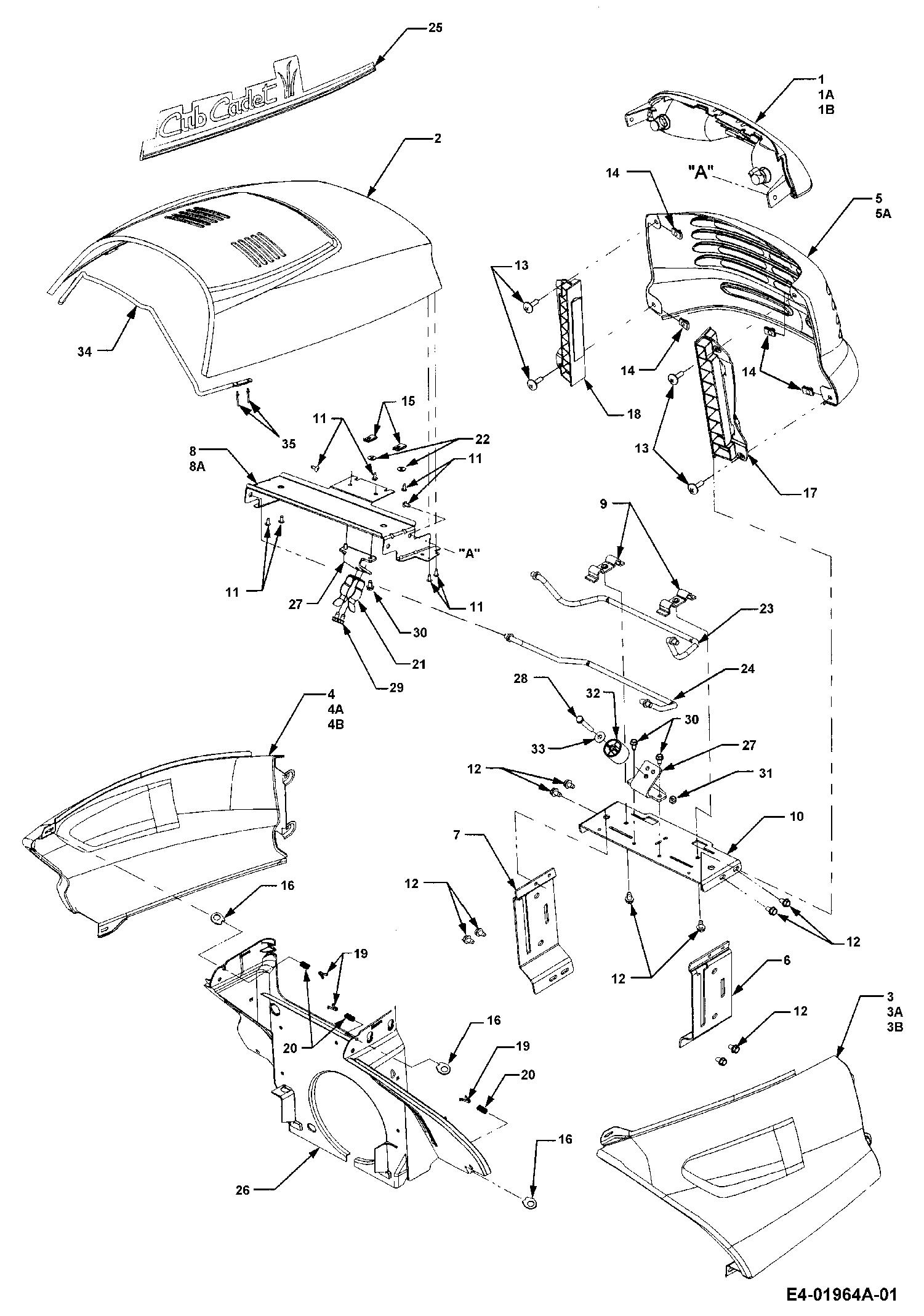

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017796

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 625-04001A HEADLIGHT ASM FRONT:CUB LT/GT £101.82 Add
002 703-05000A-C HOOD 759-3865 N/A POA
003 703-2946 side panel,rh £176.30 Add
004 703-2947 SIDE PANEL-LH £197.86 Add
005 703-2950 GRILLE N/A POA
006 703-2984 SUPPORT-RH GRILLE £22.92 Add
007 703-2985 SUPPORT-LH GRILLE £22.92 Add
008 703-3070B BRACKET-UPPER HOOD N/A POA
009 703-3071 BRACKET-ROD RETAINER £7.34 Add
010 703-3101B SUPPORT HOOD N/A POA
011 710-1388 SCREW £2.74 Add
012 710-0607 SELF TAP SCREW £3.97 Add
013 710-0924 TRUSS SCREW (OBSOLETE) (OBSOLETE) N/A
014 726-3054 NUT,U-CLIP £3.11 Add
015 726-0139 SPEED NUT 10Z U-TYPE £3.89 Add
016 726-3056 LATCH 1/4 TURN £16.43 Add
017 731-3227 MOUNT-RH FRONT GRILLE/SIDE £57.01 Add
018 731-3228 MOUNT-LH FRONT GRILLE/SIDE £45.72 Add
019 732-0936 CLIP-SPRING £8.29 Add
01A 725-0963 BULB £6.02 Add
01B 725-1649 SOCKET HEADLIGHT £5.81 Add
020 732-0937 COMPRESSION SPRING £4.78 Add
021 732-1178 Spring £17.06 Add
022 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
023 747-3478 ROD-HOOD UPPER PIVOT £56.03 Add
024 747-3338 ROD-HOOD LOWER PIVOT £66.74 Add
025 777D07681 N/A POA
026 731-3221A BAFFLE-LOWER AIR COOL £78.60 Add
027 703-4088 BRACKET SUPPORT HOOD LATCH £69.78 Add
028 710-0136 Bolt, Hex 1/4-20 x 1-3/4" 1509-069 £3.57 Add
029 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
030 710-1005 SCR:B:1/4-14:0.500:HXINDWSH N/A POA
031 712-3051 712-3051 £2.61 Add
032 731-3232 ROLLER,HOOD LATCH £10.11 Add
033 736-0342 FLAT WASHER £2.52 Add
034 747-04085 ROD-HOOD SUPPORT £51.03 Add
035 728-0117 RIV:POP:.125 OD:#42 £2.35 Add
03A 777D07676 N/A POA
03B 777X41482 N/A POA
04A 777D07676 N/A POA
04B 777X41482 N/A POA
05A 777I20314 LABEL N/A POA
08A 777S30538 N/A POA
25A 777D07682 N/A POA
