MTD017784

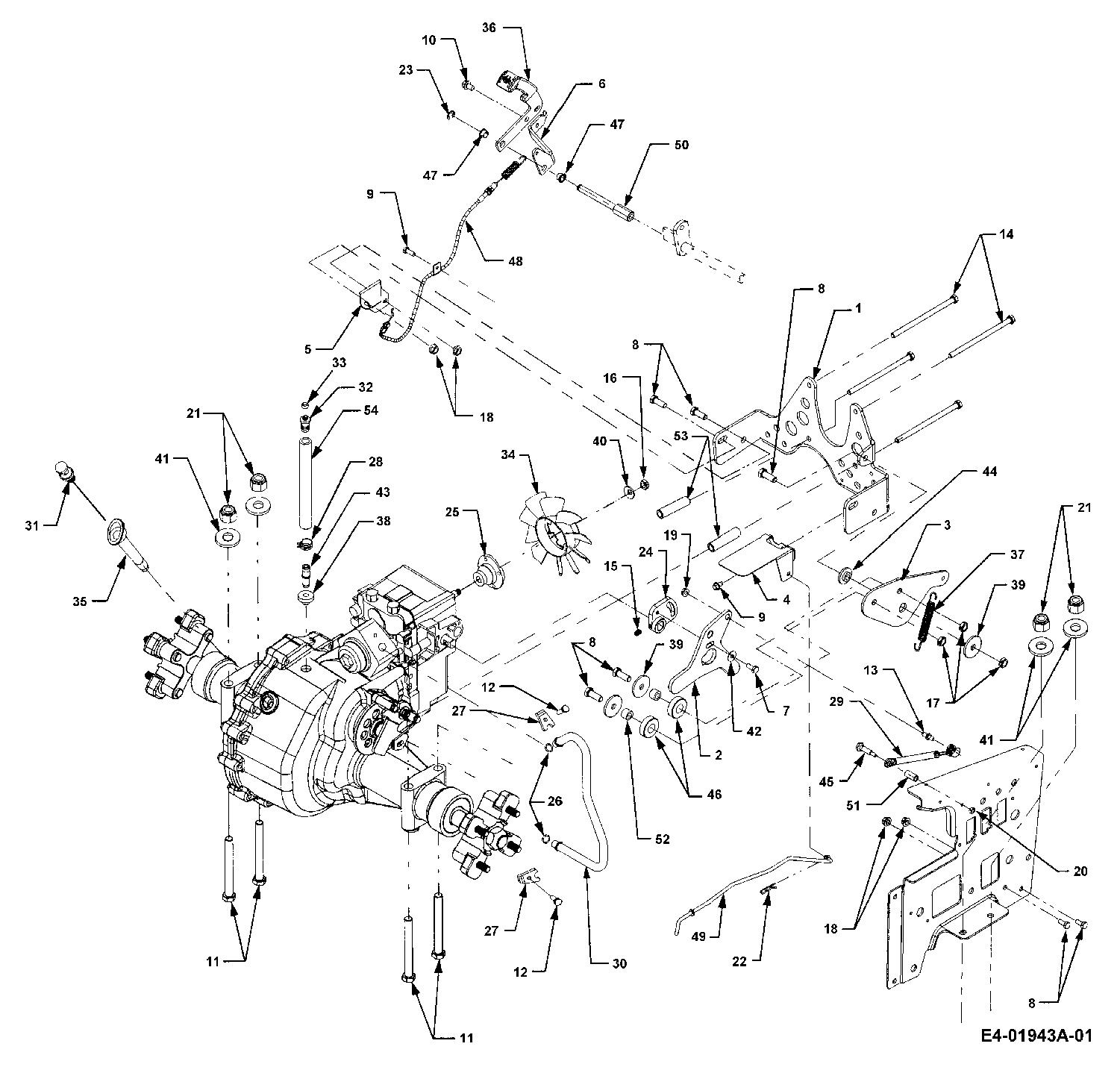

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0698	BRACKET-TORQUE	£74.45	Add
002	703-3478	CAM ASSY. CONTROL	£93.81	Add
003	703-3477	SUPPORT PLATE	£73.96	Add
004	703-4093	ARM BLADE ANGLE	£27.52	Add
005	703-3175	BRACKET-CABLE RETAINER	£21.01	Add
006	703-3183	BRACKET-PEDAL BRACE	£94.45	Add
007	710-0433	HEX BOLT	£6.66	Add
008	710-0514	HEX BOLT	£3.81	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
010	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
011	710-0465	SCREW-HEX	£16.85	Add
012	710-3015	SCREW HEX CAP	£3.33	Add
013	710-3170	BALL SCREW, 5/16-18X.56	£4.76	Add
014	710-1506	SCREW:TT:5/16-18:5.500HXINDWSH	£13.07	Add
015	710-3242	SCREW,SET, 5/16X.5	£6.72	Add
016	712-3059	USE 712-0375	£10.32	Add
017	712-0266	L-nut 092.15.201	N/A	POA
018	712-0431	NUT	£3.20	Add
019	712-3004A	HEX FLANGE NUT	£2.97	Add
020	712-3006	NUT	£2.77	Add
021	712-3058	NUT-HEX CENTER LOCK 1/2-20	£15.75	Add
022	714-0104	PIN INTERNAL COTTER	£2.78	Add
023	716-0104	RETAINING RING 1650-001	£3.58	Add
024	718-3097	ARM-HYDRO CONTROL	£33.04	Add
025	748-3093	ADAPTER	£150.30	Add
026	721-0459	O RING .426X.566X.070	£14.30	Add
027	726-0295	CLAMP-TUBE	£13.43	Add
028	726-0324	CLIP-SPRING	£11.98	Add
029	727-3090	CYLINDER,DAMPER	£95.55	Add
030	727-3139	TUBE-HYDRO PICKUP	£71.46	Add
031	727-3148	DIPSTICK	£52.33	Add
032	731-1480	PLASTIC VENT FOR .50 ID HOSE	£13.94	Add
033	731-1481	PLASTIC VENT CAP	£4.50	Add
034	731-3297	FAN,10 BLADE COOLING	£109.83	Add
035	731-3245	HOLDER-DIPSTICK	£63.25	Add
036	731-3250	PEDAL-DIFF LOCK	£84.20	Add
037	732-0429A	SPRING EXTENSION	£8.73	Add
038	735-0279	GROMMET VENT FITTING	£15.25	Add
039	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
040	736-0253	WASH:BLVL:.525 x 1.000 x.050	£3.87	Add
041	736-3019	WASHER FLAT	£5.39	Add
042	736-3090	FL.WASHER:.260 X .720 X .060	£3.11	Add
043	737-3092	HOSE CLAMP	£18.36	Add
044	738-0347	SPACER	£4.16	Add
045	738-0572	SHOULDER BOLT	£8.74	Add
046	741-0155	BRG:BALL:.62x1.38x.43:1623:DS	£28.42	Add
047	741-0491	BEARING-NYLINER	£12.94	Add
048	746-3081	CABLE-DIFF LOCK	£110.32	Add
049	747-3424	ROD	£145.66	Add
050	747-3366	SHAFT ASSY.-DIFFERENTIAL	£72.33	Add
051	750-0434	SPACER:.375 x.50 x 1.02 LG	£3.69	Add
052	750-0497	SPCR:.375 IDX .625 ODX .445 LG	£5.50	Add
053	750-3212	BUSHING	£8.18	Add
054	751-0588	LINE:FLUEL:1/2" ID.	N/A	POA
