MTD017783

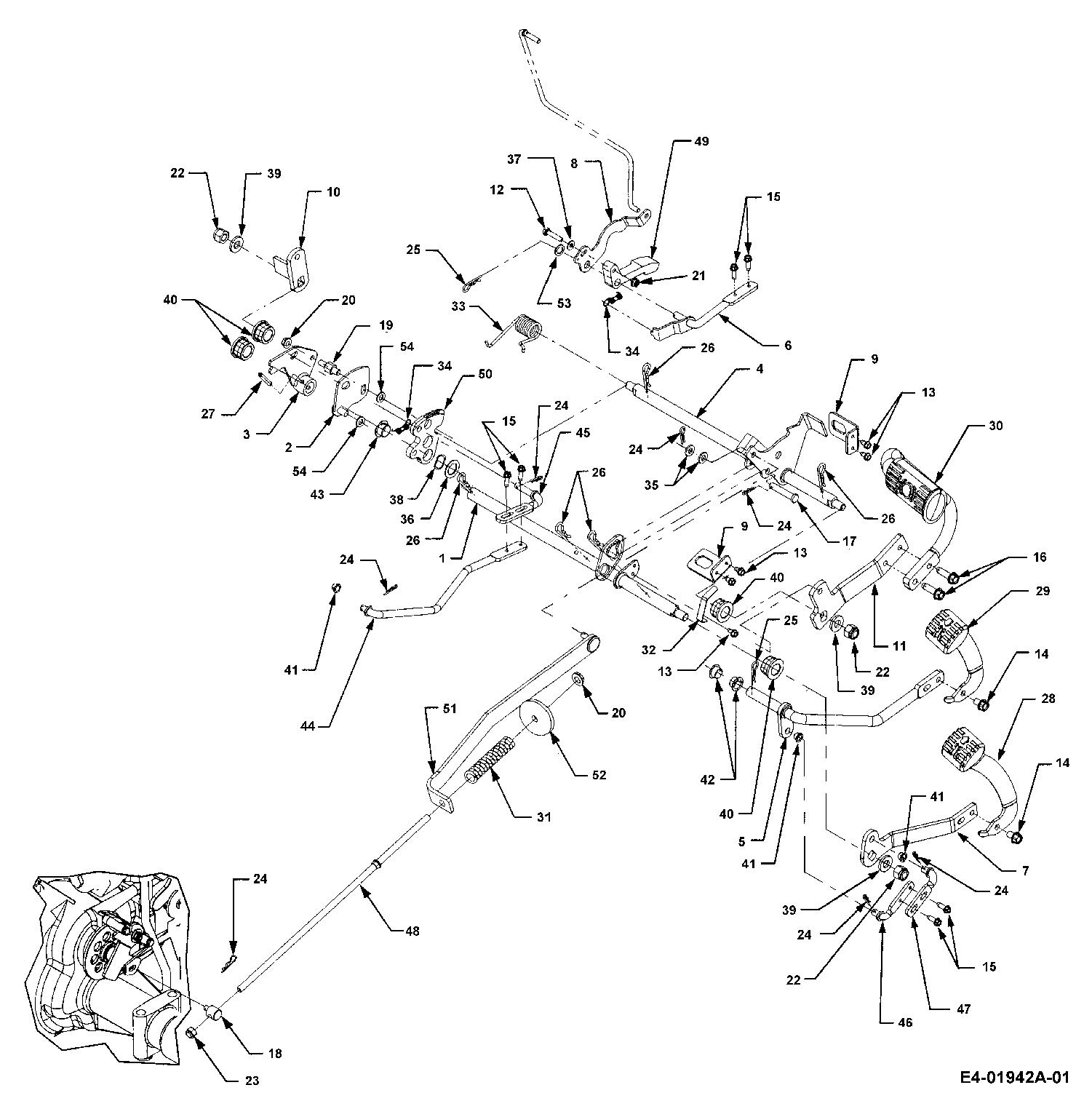

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017783

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0379 SHAFT ASSY-PEDAL £83.15 Add
002 603-0421A NO LONGER AVAILABLE N/A POA
003 603-0437 CAM ASSY-CLUTCH £70.15 Add
004 603-0445A BRAKE SHAFT £179.39 Add
005 603-0449A SHAFT-ASM REVERSE N/A POA
006 603-0634 ROD ASSY-CRUISE £173.45 Add
007 703-3012 MOUNTING PLATE - PEDAL £29.20 Add
008 703-3020 BRACKED-ROD ADJUSTMENT £12.86 Add
009 703-3152 BRACKET-REV SWITCH £8.54 Add
010 603-0733 LEVER-DIFF LCK BRAKE £69.29 Add
011 703-3156 FIXATION PLATE BRAKE PEDAL £45.26 Add
012 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.95 Add
013 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
014 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £6.30 Add
015 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.68 Add
016 710-1315 SCR TT 3/8-16 1.250 HXINDWSH S £5.70 Add
017 711-0679A CLEVIS PIN £6.70 Add
018 711-1530 FERRULE:.325 ID x .312 OD £24.80 Add
019 711-04035 Bolt £44.63 Add
020 712-3004A HEX FLANGE NUT £2.97 Add
021 712-3027 LOCK NUT £2.79 Add
022 712-3058 NUT-HEX CENTER LOCK 1/2-20 £15.75 Add
023 712-0429 NUT HEX.INS L NUT £4.92 Add
024 714-0104 PIN INTERNAL COTTER £2.78 Add
025 714-0145 R CLIP £2.78 Add
026 714-0147 COTTER PIN £3.51 Add
027 715-0114A SPRING PIN 715-0114 £5.15 Add
028 731-3247 PEDAL-FORWARD £87.61 Add
029 731-3248 PEDAL-REVERSE £83.30 Add
030 731-3249 BRAKE PEDAL £104.53 Add
031 732-0324 NO LONGER AVAILABLE N/A POA
032 732-0859A Spring £21.79 Add
033 732-0871 Spring £8.85 Add
034 732-3118 SPR:EXTN:.375 OD x 1.44 LG £13.84 Add
035 736-0275 WASH:FLAT:.344 x .688 x.065 £3.07 Add
036 736-0287 FLAT WASHER .78" X 1.25" X .062" £7.92 Add
037 736-0463 WASH:FLAT: .250 x .630 x .052 £3.31 Add
038 736-0621 WASHER-WAVE £6.32 Add
039 736-3019 WASHER FLAT £5.39 Add
040 741-0598 FLANGE BEARING £11.63 Add
041 741-3073 BEARING, HEX FLANGE £7.51 Add
042 741-3074 BRG:FLG:.626x.938x.344 £8.34 Add
043 741-3084 BUSH £11.51 Add
044 747-3319 ROD-REAR CONNECTOR £51.75 Add
045 747-3320 ROD-FRONT CONNECTOR £30.70 Add
046 747-3324 ROD-FWD PED RR CONN £55.05 Add
047 747-3353 ROD-FWD PED FRT CONN £44.23 Add
048 747-3422 ROD-BRAKE £68.04 Add
049 748-04001 LATCH:CRUISE £83.70 Add
050 748-3080A PLATE-CRUISE £66.44 Add
051 603-0738 LEVER, PARK BRAKE ENGAGEMENT £55.59 Add
052 736-0418A FLAT WASHER .34 ID X 2.25 OD X £5.81 Add
053 736-0160 WASH:FLAT:.530x.930x.050 £3.39 Add
054 736-0300 WASHER £2.81 Add
