MTD017874

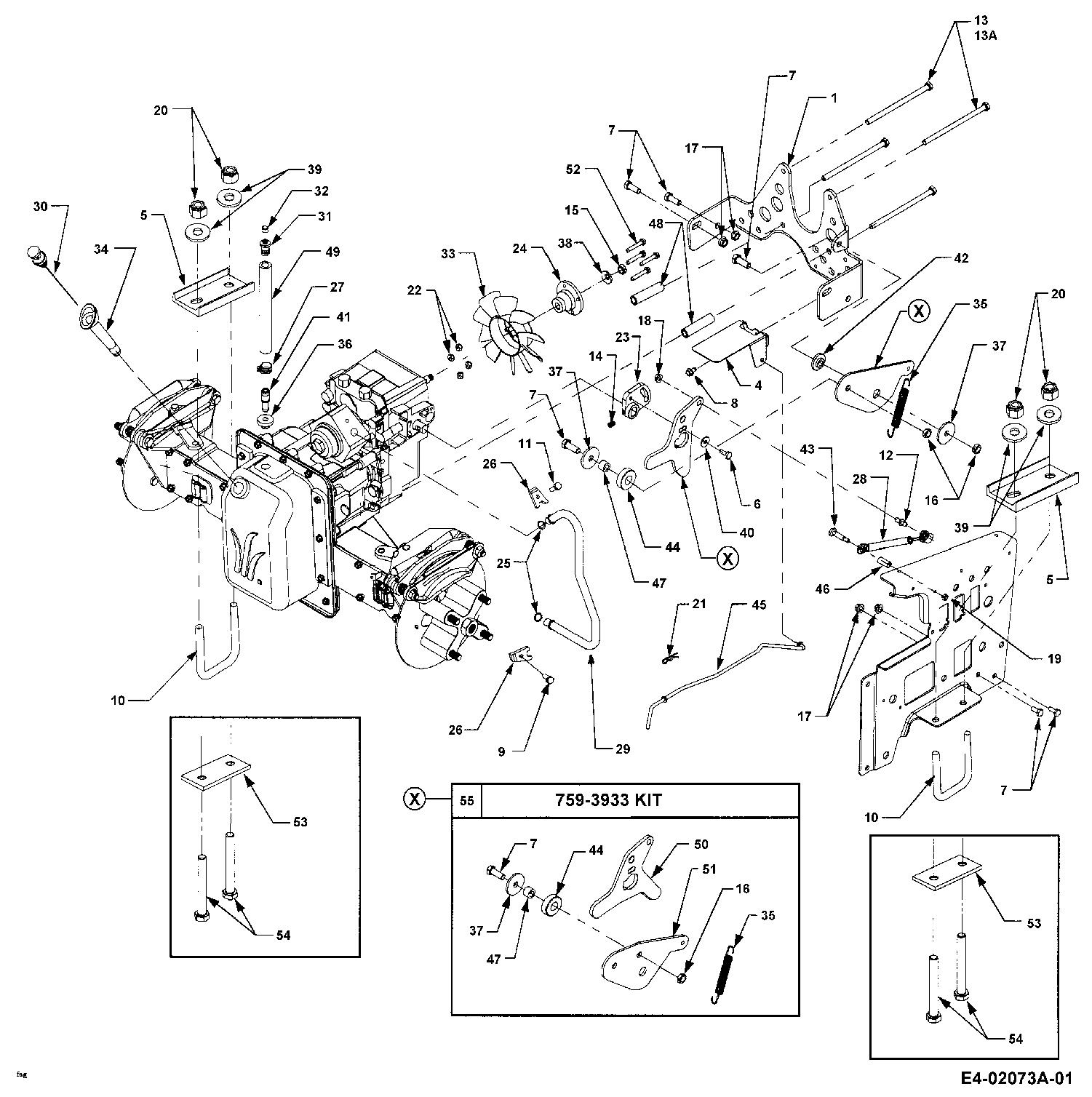

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017874

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0698 BRACKET-TORQUE £67.26 Add
004 703-3187 PLATE-HYDRO BYPASS £29.35 Add
005 703-3292 N/A POA
006 710-0433 HEX BOLT £5.58 Add
007 710-0514 HEX BOLT £3.22 Add
008 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
009 710-0642 SCREW-HEX HD TAP 4-20 x 7.5 £3.11 Add
010 710-1632 BOLT-U STYLE N/A POA
011 710-3015 SCREW HEX CAP £2.82 Add
012 710-3170 BALL SCREW, 5/16-18X.56 £4.48 Add
013 710-3226 SKT-SCHRAUBE: 5/16-18X5.5GR5 L £11.38 Add
014 710-3242 SCREW,SET, 5/16X.5 £6.24 Add
015 712-0262 NUT:JAMLK:3/8-24:GR2 £10.85 Add
016 712-0266 L-nut 092.15.201 N/A POA
017 712-0431 NUT £2.71 Add
018 712-3004A HEX FLANGE NUT £2.52 Add
019 712-3006 NUT £2.35 Add
020 712-3058 NUT-HEX CENTER LOCK 1/2-20 £18.26 Add
021 714-0104 PIN INTERNAL COTTER £2.36 Add
022 748-3037 NUT,FAN,1/4-20 £8.44 Add
023 718-3097 ARM-HYDRO CONTROL £29.97 Add
024 748-3052 FLANGE £53.44 Add
025 721-0459 O RING .426X.566X.070 £10.67 Add
026 726-0295 CLAMP-TUBE £8.16 Add
027 726-0324 CLIP-SPRING £3.41 Add
028 727-3090 CYLINDER,DAMPER £83.09 Add
029 727-3139 TUBE-HYDRO PICKUP £64.58 Add
030 727-3148 DIPSTICK £41.76 Add
031 731-1480 PLASTIC VENT FOR .50 ID HOSE £16.65 Add
032 731-1481 PLASTIC VENT CAP £5.26 Add
033 731-3095 IMPELLER ASSY £34.99 Add
034 731-3245 HOLDER-DIPSTICK £17.88 Add
035 732-0429A SPRING EXTENSION £7.31 Add
036 735-0279 GROMMET VENT FITTING £6.71 Add
037 736-0227 WASH:FLAT:.390x1.500x.134 N/A POA
038 736-0105 BELL WASHER £2.82 Add
039 736-3019 WASHER FLAT £4.52 Add
040 736-3090 FL.WASHER:.260 X .720 X .060 £2.62 Add
041 737-3092 HOSE CLAMP £19.12 Add
042 738-0347 SPACER £3.50 Add
043 738-0572 SHOULDER BOLT £7.32 Add
044 741-0155 BRG:BALL:.62x1.38x.43:1623:DS £27.63 Add
045 747-3359A ROD-PUMP RELEASE £63.37 Add
046 750-0434 SPACER:.375 x.50 x 1.02 LG £3.51 Add
047 750-0497 SPCR:.375 IDX .625 ODX .445 LG £5.01 Add
048 750-3212 BUSHING £7.55 Add
049 751-0588 LINE:FLUEL:1/2" ID. N/A POA
050 703-3478 CAM ASSY. CONTROL £84.73 Add
051 703-3477 SUPPORT PLATE £66.84 Add
052 710-3288 SCRE.HHCS:1/4-20:1.62:GR5:LOCK £7.23 Add
053 703-3410 CAM ASSY. CONTROL £26.08 Add
054 710-0465 SCREW-HEX £10.11 Add
055 759-3933 KIT N/A POA
13A 710-1506 SCREW:TT:5/16-18:5.500HXINDWSH £11.97 Add
