MTD017869

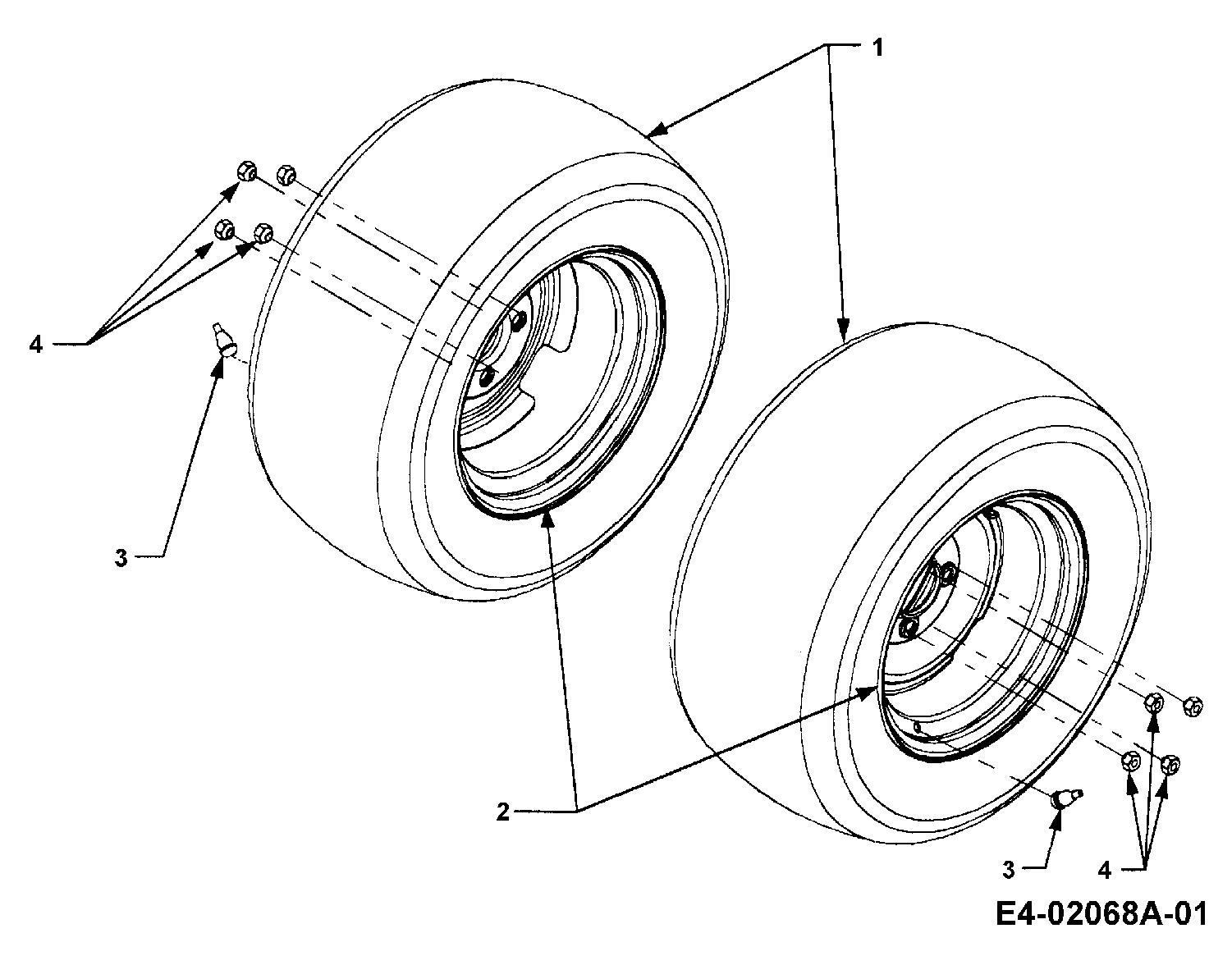

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017869

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 734-3194 TIRE-TURFF £355.70 Add
002 634-3037B WHEEL RIM £218.22 Add
003 734-0255 VALVE - TUBELESS AIR £6.69 Add
004 712-3050 NUT:LUG:7/16-14 £7.11 Add
