MTD010005

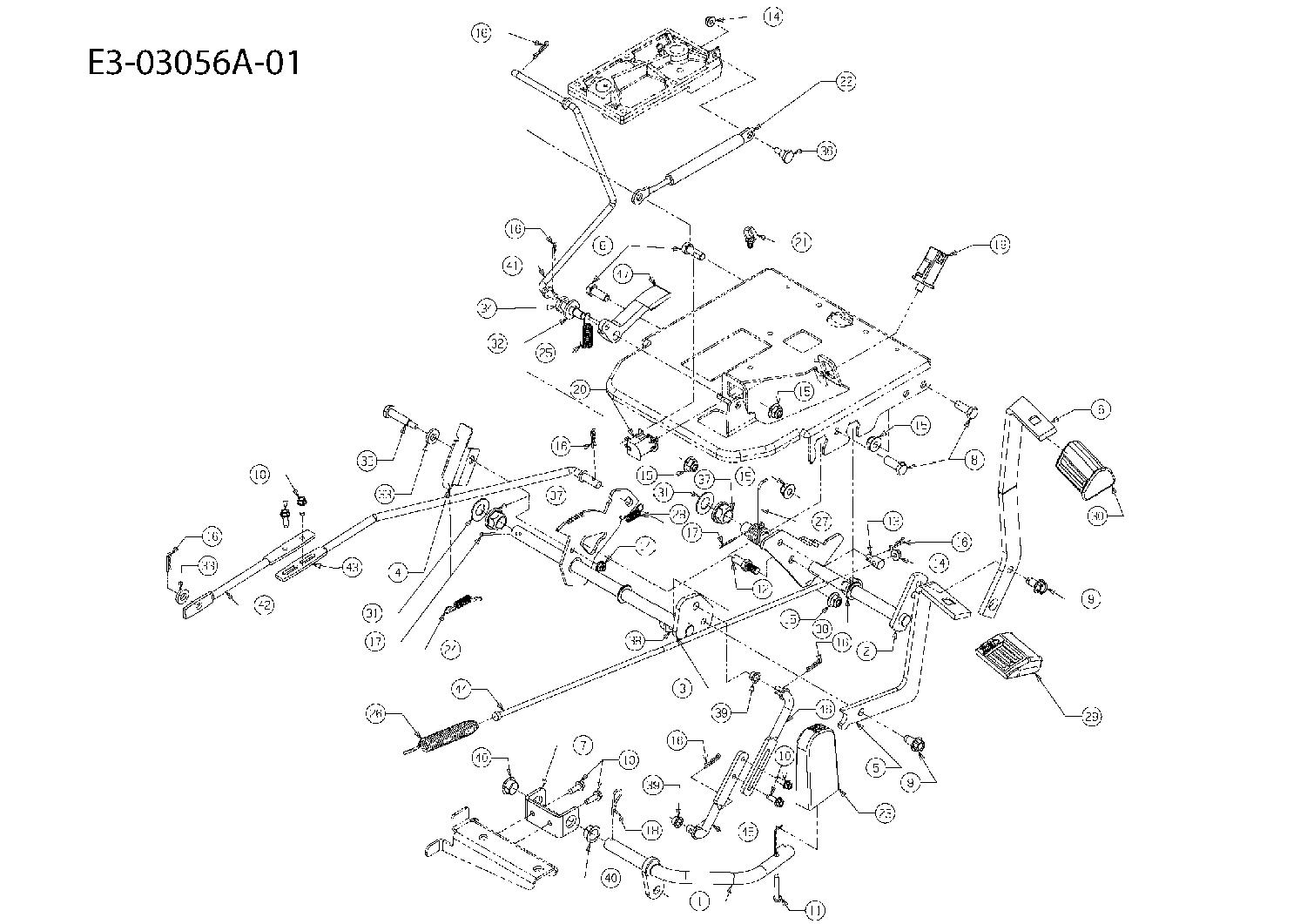

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0412	PEDAL-REVERSE	£127.30	Add
002	603-04313A	SHAFT ASSY.-BRAKE	£115.59	Add
003	603-04314	SHAFT ASM-FORWARD REVERSE	£122.55	Add
004	703-05873	ARM BLADE ANGLE	£74.63	Add
005	703-2570A	PEDAL FORWARD	£42.48	Add
006	703-2573A	SHAFT,PARK BRAKE PEDAL	£48.85	Add
007	703-2938	IDLER BRACKET ASSY.	£50.98	Add
008	710-0514	HEX BOLT	£3.81	Add
009	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
010	710-0642	SCREW-HEX HD TAP 4-20 x 7.5	£3.68	Add
011	710-0796	NO LONGER AVAILABLE	N/A	POA
012	711-04543	PIN 3/8-16 X 1.0 LG	£66.92	Add
013	711-0736	FERRULE-ADJ:1/4-20 x 1.00	£15.86	Add
014	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
015	712-04065	NUT	£4.02	Add
016	714-0104	PIN INTERNAL COTTER	£2.78	Add
017	714-0111	COTTER PIN	£3.20	Add
018	714-0145	R CLIP	£2.78	Add
019	725-3164A	SWITCH INTERLOCK (BRAKE)	£36.48	Add
020	725-3167	SW:MT:SNAP NO	£24.68	Add
021	726-3055	CLIP-CABLE RETAINER	£3.34	Add
022	727-04141	CYL:DAMPER .59 OD x 7.84 LG	£45.40	Add
023	731-3205	PAD-REVERSE PEDAL	£24.21	Add
024	732-0418	SPR:EXTN:.38 OD X 2.10	£5.21	Add
025	732-04354	Spring	£16.85	Add
026	732-0463A	SPRING, GOVERNOR	£21.95	Add
027	732-0756A	SPR:TORSN:	£26.52	Add
028	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
029	735-3048	PAD,FORWARD FOOT CONTROL	£12.26	Add
030	735-3049A	FOOTBRAKE PAD	£20.22	Add
031	736-0187	FLAT WASHER	£3.19	Add
032	736-0326	FLAT WASHER :5101.00125	£3.69	Add
033	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
034	738-0145	SCREW-SHLD	£7.81	Add
035	738-0560	NO LONGER AVAILABLE	N/A	POA
036	738-0974	SCR:SHLDR:.375x.380:1/4-20	£9.24	Add
037	741-0225	HEX FLANGE BEARING	£4.92	Add
038	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
039	741-3073	BEARING, HEX FLANGE	£7.51	Add
040	741-3074	BRG:FLG:.626x.938x.344	£8.34	Add
041	747-04426	ROD-CRUISE CONTROL	£67.29	Add
042	747-04478	ROD:CONN:RR	£58.02	Add
043	747-04479	ROD-FRONT	£65.91	Add
044	747-04516	BRAKE BAR	£73.54	Add
045	747-3341A	ROD-REAR CONNECTING	£41.09	Add
046	747-3383	ROD:CONN:FRT	£48.01	Add
047	748-04102	LATCH-CRUISE	£81.51	Add
