MTD017697

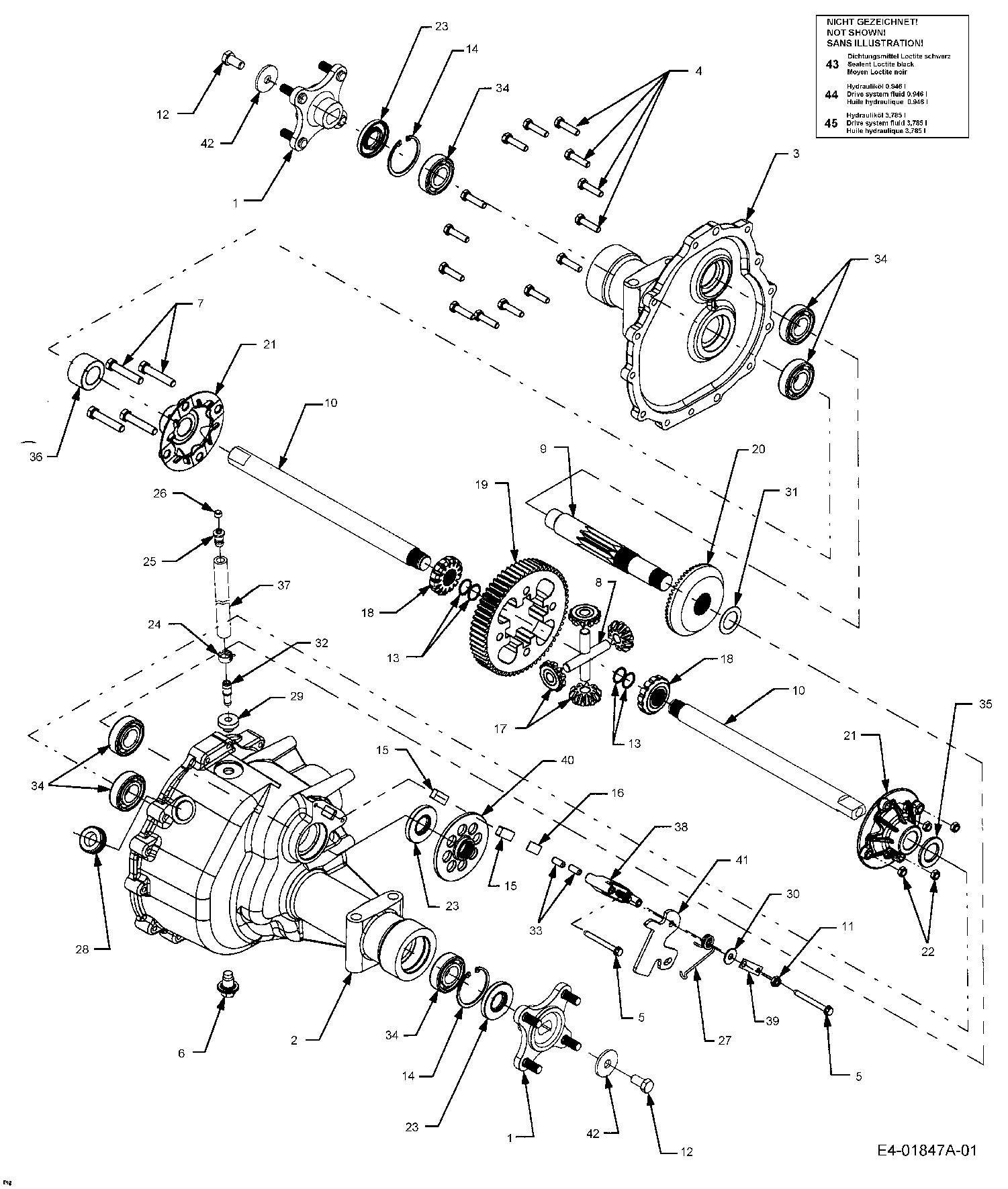

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04115	HUB ASSY-RR	£103.38	Add
002	619-3071A		N/A	POA
003	619-3072		N/A	POA
004	710-0573	SCREW-HEX	£13.50	Add
005	710-1206	SCREW SELF TAP	£3.69	Add
006	710-1633	DRAIN SCREW	£21.44	Add
007	710-3144	SCREW	£3.28	Add
008	711-1052A	SHAFT-CROSS	£27.88	Add
009	711-1385A	OUTPUT SHAFT	£137.99	Add
010	711-04233		N/A	POA
011	712-0273	NUT:HEXLK:5/16-24:GR2:NYLON	£3.90	Add
012	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
013	716-04032		N/A	POA
014	716-0204	Circlip	£18.36	Add
015	717-0678	PAD	£12.86	Add
016	717-0682	PLATE	£14.67	Add
017	717-1446	GEAR:MITER:10T	£20.78	Add
018	717-04102	GEAR MITER 14 TEETHS	N/A	POA
019	717-1568A		N/A	POA
020	717-3449	GEAR-BEVEL 54T	£130.35	Add
021	719-0375A		£66.06	Add
022	712-3020	NO LONGER AVAILABLE	N/A	POA
023	721-0523	SHAFT SEAL	£14.34	Add
024	726-0324	CLIP-SPRING	£11.98	Add
025	731-1480	PLASTIC VENT FOR .50 ID HOSE	£13.94	Add
026	731-1481	PLASTIC VENT CAP	£4.50	Add
027	732-0925	Spring	£25.80	Add
028	735-0277A	GROMMET-RUBBER 3000 SERIES	N/A	POA
029	735-0279	GROMMET VENT FITTING	£15.25	Add
030	736-0371	WASH:THRST:.343 X .880 X .062	£3.20	Add
031	736-0615	WASH:THRST:1.007x1.542x.030	£28.92	Add
032	737-3092	HOSE CLAMP	£18.36	Add
033	741-0343	PIN	£10.78	Add
034	741-3114	BALL BEARING	£18.36	Add
035	750-3346	SPACER AXLE	£8.09	Add
036	750-3358	SPACER AXLE	£25.20	Add
037	751-0588-8	TUBE-FILL	£42.14	Add
038	761-0207A	TUBE-CHUTE SUPPORT	£66.72	Add
039	761-0208	BRAKE ANTI-ROTATION BRACKET	£12.63	Add
040	761-0215	BRAKE DISC	£74.56	Add
041	761-3074	LEVER, PARK BRAKE ENGAGEMENT	£33.04	Add
042	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
043	759-3958	SEALANT-ULTRA BLACK LOCTITE #3	£94.23	Add
044	737-3120	FLUID-DRIVE SYSTEM	£65.50	Add
045	737-3121	DRIVE SYSTEM FLUID PLUS	£90.24	Add
