MTD017760

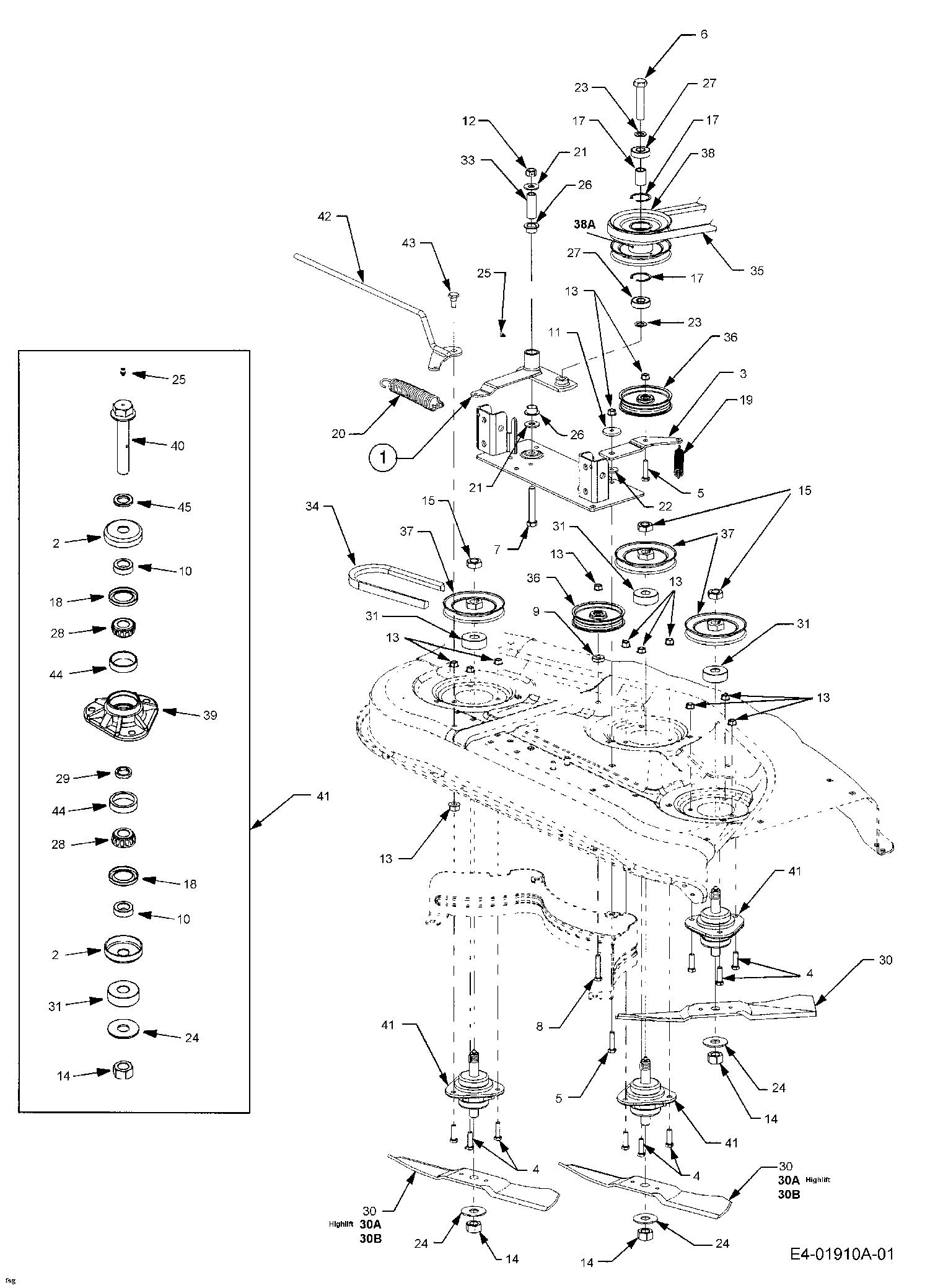

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD017760

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0857 TENSION ARM 603-0172 £141.79 Add
002 703-1387 CUP,SPINDLE £27.37 Add
003 703-2579 ARM,IDLER £21.76 Add
004 710-3005 BOLT £3.24 Add
005 710-0520 SCREW HEX CAP 3/8 (RED) £3.51 Add
006 710-0923 SCREW 5/8-18:3.00 £24.10 Add
007 710-1010 NO LONGER AVAILABLE N/A POA
008 710-3144 SCREW £3.28 Add
009 711-0242 SPACER £7.37 Add
010 711-3171A N/A POA
011 711-3272A SHOULDER SPACER £21.63 Add
012 712-0239 LOCK NUT £12.14 Add
013 712-0431 NUT £3.20 Add
014 712-3018 NUT £15.39 Add
015 712-3026 NO LONGER AVAILABLE N/A POA
017 716-3020 RING-INTERNAL SNAP £7.71 Add
018 721-3018A SEAL-SINGLE LIP OIL £13.74 Add
019 732-0478 EXT. SPRING DECK CONTROL £16.63 Add
020 732-0861 NO LONGER AVAILABLE N/A POA
021 736-0179 WASHER-FL £14.34 Add
022 736-0258 WASHER:FLAT:.385 X 1.0 X.135 £3.47 Add
023 736-0237 WASHER FLAT CODE H150 AND AFTER £11.48 Add
024 736-3014 WASHER £10.72 Add
025 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
026 741-0338 FLANGE BEARING (OBSOLETE) £7.81 Add
027 741-1122 BRG:BALL:.625x40x12:6203:SS £47.36 Add
028 741-04298 TAPER LK BUSHING 741-3028 £27.72 Add
029 741-3030A N/A POA
030 759-3825 BLADE 742-3019 £62.59 Add
031 748-3020 SPACER £23.00 Add
032 750-3132 BUSH £10.20 Add
033 750-3136 SPACER £12.68 Add
034 754-3041 V-Belt £135.27 Add
035 754-3068 V BELT £154.89 Add
036 756-3005 PULLEY £84.18 Add
037 756-3046 PULLEY £74.76 Add
038 756-3116 PULLEY 756-3071 £193.88 Add
039 719-3056B N/A POA
040 710-1336A BOLT, SPINDLE £39.86 Add
041 603-0835 SPINDLE ASSEMBLY,BLADE £250.65 Add
042 603-0203 HANDLE £149.02 Add
043 738-0143 SHOULDER BOLT £12.24 Add
044 741-3029 BEARING-CUP £21.20 Add
045 748-0449 N/A POA
30A 759-3826 BLADE £83.81 Add
30B 759-3842 BLADE 759-3677 £105.90 Add
38A 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
