44" Deck Assembly

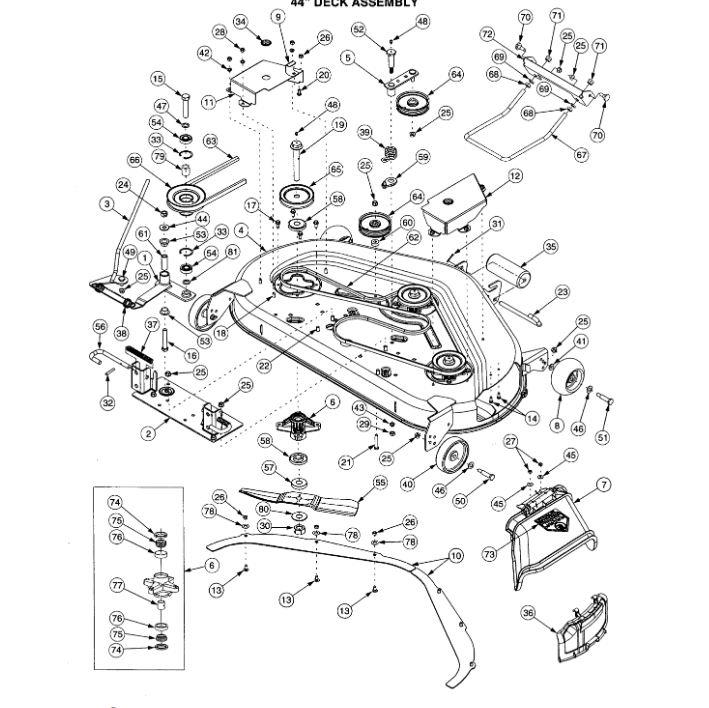

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

44

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0857-0716 IDLER ASSEMBLY (OBSOLETE) (OBSOLETE) N/A
001 603-0857-0716 IDLER ASSEMBLY (OBSOLETE) (OBSOLETE) N/A
002 603-0183A-0716 PLATE ASSY, MOUNTING (OBSOLETE) N/A
003 603-0203 HANDLE £149.02 Add
004 603-04269ACY DECK SHELL CUB YELLOW £779.60 Add
005 603-0741 IDLER ARM ASSY. £93.92 Add
006 618-3129C SPINDLE, BLADE ASSY. £216.30 Add
007 631-0094A CHUTE £109.13 Add
008 703-1890A WHEEL ASSY W/TIRE £29.03 Add
009 703-2559-0716 BRACKET, STOP (OBSOLETE) N/A
010 703-3359-0716 BAFFLE, SKIRT (OBSOLETE) N/A
011 703-3742-0716 BELT COVER, LH (OBSOLETE) N/A
012 703-3743-0716 BELT COVER, RH (OBSOLETE) N/A
013 710-260A BOLT, CARRIAGE, 5/16-18 X .62 £2.88 Add
014 710-0751 BOLT 069 £3.39 Add
015 710-0923 SCREW 5/8-18:3.00 £24.10 Add
016 710-1010 NO LONGER AVAILABLE N/A POA
017 710-1260A SCREW £4.00 Add
018 710-1611B SCREW SELF TAP £5.88 Add
019 710-1852 BOLT-HEX HD BLADE 3/4-16x5.37 £42.49 Add
020 710-3008 HEX BOLT £3.03 Add
021 710-3144 SCREW £3.28 Add
022 710-3178 BOLT SHORT NECK CARR £11.46 Add
023 711-3314A ROLLER PIN £22.47 Add
024 712-0239 LOCK NUT £12.14 Add
025 712-0431 NUT £3.20 Add
027 712-3006 NUT £2.77 Add
028 712-3010 NUT 5/16 x 18 £2.77 Add
029 712-3019 NUT £14.44 Add
030 712-3018 NUT £15.39 Add
031 714-0115 COTTER PIN £3.42 Add
032 715-3003 PIN, SPIRAL SPRING £15.25 Add
033 716-3020 RING-INTERNAL SNAP £7.71 Add
034 726-3045 PLUG,BUTTON £6.94 Add
035 731-3005 ROLLER £42.43 Add
036 731-3316 PLUG-MULCHING £41.59 Add
037 732-3127 COMPR. SPRING:0.66 OD x 1.9 LG £7.05 Add
038 732-0861 NO LONGER AVAILABLE N/A POA
039 732-3067 SPRING £31.86 Add
040 734-0973 WHEEL DECK 5in. DIA £11.16 Add
041 736-0105 BELL WASHER £3.33 Add
042 736-0119 LOCK WASHER 5/16 £3.33 Add
043 736-0171 WASHER £2.93 Add
044 736-0179 WASHER-FL £14.34 Add
045 736-0270 BELL WASHER £3.91 Add
046 736-0272 WASHER:FL:.510 X 1.000 X .060 £3.16 Add
047 736-0290 WASHER FLAT CODE H140 AND BEFORE £11.52 Add
047 736-0237 WASHER FLAT CODE H150 AND AFTER £11.48 Add
048 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.87 Add
049 738-0143 SHOULDER BOLT £12.24 Add
050 738-0533 SHLD SCREW £6.33 Add
052 738-3172 BOLT SHOULDER £25.85 Add
053 741-0338 FLANGE BEARING (OBSOLETE) £7.81 Add
054 741-0524A BRG BALL 625X40X12:6203 £31.45 Add
055 759-3939 BLADE £88.07 Add
056 747-3188 ROD:HNDL:DECK RELEASE .5 DIA £24.91 Add
057 748-3020 SPACER £23.00 Add
058 748-3065A SPCR:SPDL:DECK £14.96 Add
059 748-3100 RETAINER SPRING £36.31 Add
060 750-3119 SPACER £13.99 Add
061 750-3136 SPACER £12.68 Add
062 754-3039 V-BELT £130.78 Add
063 754-3068 V BELT £154.89 Add
064 756-3005 PULLEY £84.18 Add
065 756-3089 V-PULLEY 4.0 DIA £31.38 Add
066 756-3115 PULLY DOUBLE £169.92 Add
067 747-3172B BRACKET-FRONT LIFT £46.42 Add
068 712-3048 HEX JAM NUT 1/2-13 GR.5 £10.38 Add
069 736-0921 WASHER:LOCK:1/2:REGULAR DUTY £2.98 Add
070 738-0507B SHOULDER BOLT £6.89 Add
071 712-3083 NUT £2.79 Add
072 603-0200-0716 BRACKET, FRONT LIFT (OBSOLETE) N/A
073 777S30145 LBL:DANGER (1584) £24.60 Add
074 721-3018A SEAL-SINGLE LIP OIL £13.74 Add
075 741-04298 TAPER LK BUSHING 741-3028 £27.72 Add
076 741-3029 BEARING-CUP £21.20 Add
077 750-3190A SPACER,BEARING 750-3190 £14.34 Add
078 736-0226 WASHER:FLAT:.474 x.879 x.064 £3.39 Add
079 750-3132 BUSH £10.20 Add
080 736-3014 WASHER £10.72 Add
081 736-0237 WASHER FLAT CODE H150 AND AFTER £11.48 Add
