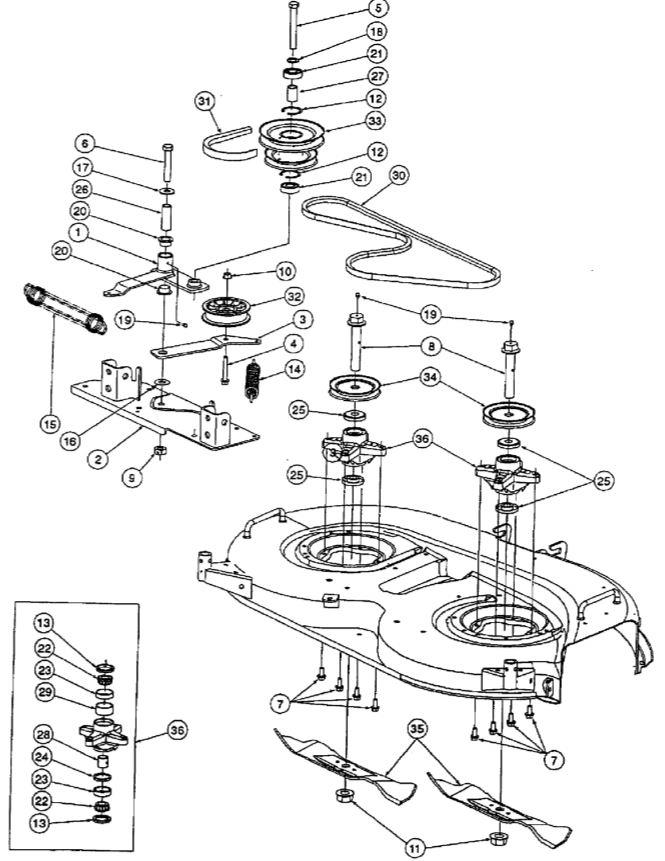

42" SPINDLE ASSEMBLY SERIAL NO. 359001 AND ABOVE

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-0172	PIVOT ARM, DOUBLE PULLEY	£152.88	Add
002	603-0181B	PLATE ASSEMBLY, MOUNTING	£147.61	Add
003	703-2463	ARM, IDLER	N/A	POA
004	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
005	710-0923	SCREW 5/8-18:3.00	£24.10	Add
006	710-1010	NO LONGER AVAILABLE	N/A	POA
007	710-1260	SCREW, HEX WASH HD TT TAPP 5/16-18 X .75	N/A	POA
008	710-1336	BOLT, SPINDLE, 3/4-16 X 4.25	N/A	POA
009	712-0239	LOCK NUT	£12.14	Add
010	712-0431	NUT	£3.20	Add
011	712-3078	NUT HEX FLANGE 3/4-16	£11.32	Add
012	716-3020	RING-INTERNAL SNAP	£7.71	Add
013	721-3018	SEAL, OIL, 1.25 X 1.874 X .25	N/A	POA
014	732-0262	SPRING, GOVERNOR	£21.13	Add
015	732-3115	SPRING EXTENSION	£40.11	Add
016	736-0100	WASH:FLAT:.531 x 1.25 x .036	£3.20	Add
017	736-0179	WASHER-FL	£14.34	Add
018	736-0290	WASHER FLAT CODE H140 AND BEFORE	£11.52	Add
019	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
020	741-0338	FLANGE BEARING (OBSOLETE)	£7.81	Add
021	741-0524	BEARING, BALL, .62 ID X 1.57 OD	N/A	POA
022	741-3028	CONE, BEARING	N/A	POA
023	741-3029	BEARING-CUP	£21.20	Add
024	741-3031	BEARING,SLEEVE	£45.81	Add
025	748-3065	SPACER, DECK SPINDLE	N/A	POA
026	750-0656	NO LONGER AVAILABLE	N/A	POA
027	750-3132	BUSH	£10.20	Add
028	750-3190	SPACER, BEARING .780 X .963 X .7777	N/A	POA
029	750-3191	BEARING,SLEEVE	£45.24	Add
030	754-3073	V BELT	£71.07	Add
031	754-3055A	BELT PTO	£113.67	Add
032	756-0627	PULLEY, FLAT IDLER, 3.5 OD	N/A	POA
033	756-3069	PULLEY, DOUBLE	N/A	POA
034	756-3089	V-PULLEY 4.0 DIA	£31.38	Add
035	759-3830	BLADE	£55.77	Add
036	918-3129	SPINDLE ASSEMBLY, BLADE (INCLUDES REF NOS 13, 22, 23, 24, 28 & 29)	N/A	POA
