MTD015262

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

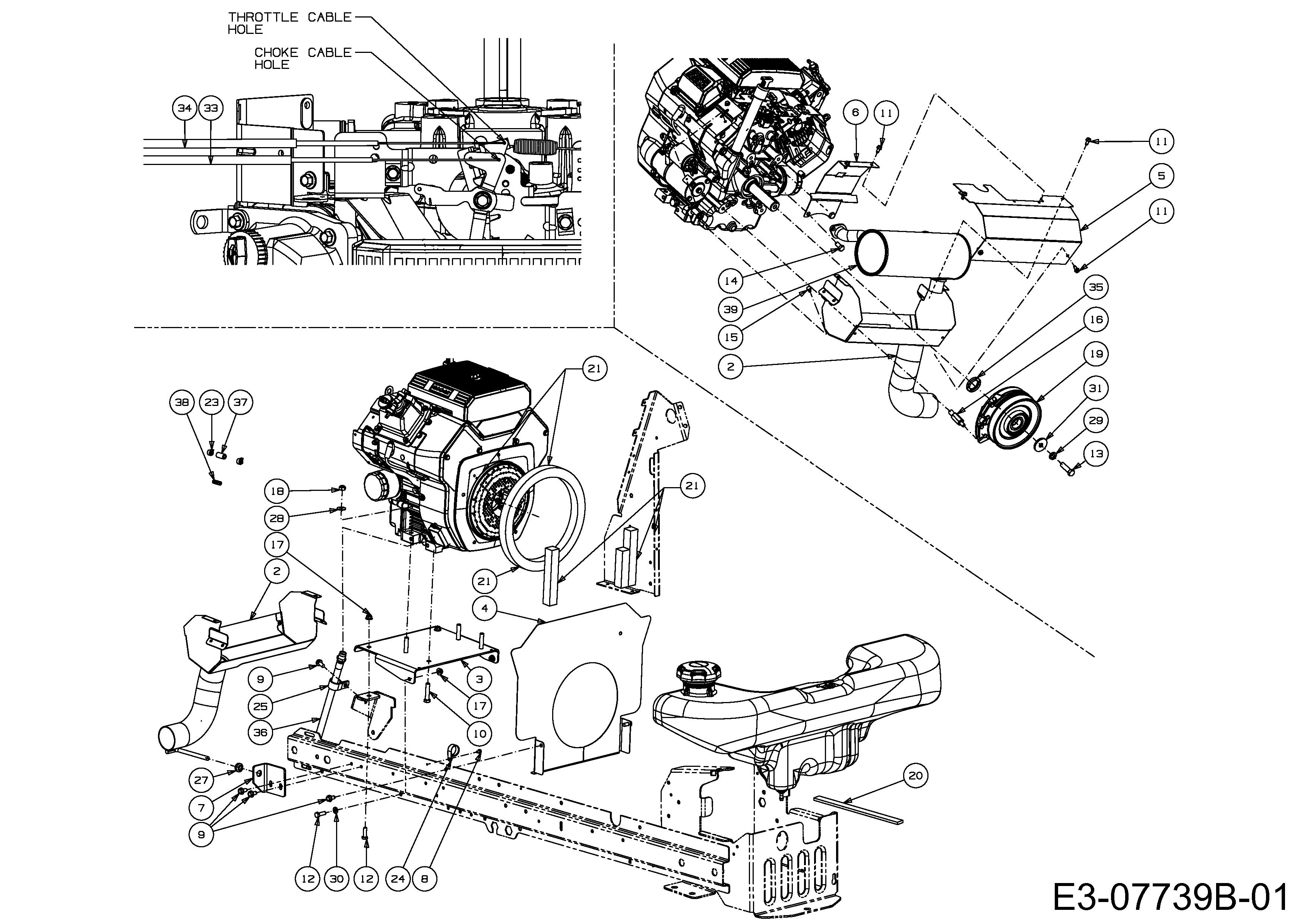

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	651-04274	TANK ASM FUEL	£246.80	Add
002	651-04379A		£108.71	Add
003	703-08021637	PLATE ENGINE	£70.13	Add
004	703-08294637	PLATE ENGINE BULKHEAD	N/A	POA
005	703-08713		£47.78	Add
006	703-08716		£46.90	Add
007	703-08780637	BRACKET	£30.58	Add
008	710-0224	NO LONGER AVAILABLE	N/A	POA
009	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
010	710-0539	HHCS:3/8-24:1.75:GR5:STD	£4.46	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0643	BOLT	£3.85	Add
013	710-0757	HEX SCREW	£7.96	Add
014	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
015	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
016	711-1083	ROD	£31.04	Add
017	712-04063	FLANGED NUT	£4.20	Add
018	712-3054	NUT-HEX LOCK	£8.36	Add
019	717-04326A	CLUTCH ASSY	£726.96	Add
020	721-04382	FOAM TAPE .75" X .25"	£14.62	Add
021	723-3062A	SEALING WASHER	N/A	POA
022	725-0157	NO LONGER AVAILABLE	N/A	POA
023	726-0205	HOSE CLAMP 1/2 INCH DIA.	£3.44	Add
024	726-04119	Clamp	£6.91	Add
025	726-0475	CLAMP-HOSE	£29.99	Add
026	731-08383-2	STRIP TRIM	£14.89	Add
027	735-04291	GROMMET	£8.09	Add
028	736-0105	BELL WASHER	£3.33	Add
029	736-0171	WASHER	£2.93	Add
030	736-0264	WASH:FLAT:.330 x.630x.0635	£3.59	Add
031	736-3082A	WASHER FLAT	£10.48	Add
033	746-04759A	CABLE CHOKE	£43.45	Add
034	746-04771A	CABLE GAZ	£34.52	Add
035	750-3356	SPACER-PULLEY	£12.27	Add
036	751-10291A	HOSE-OIL DRAIN 13,75 LG	£60.02	Add
037	751-10349-22	HOSE-FUEL	£12.34	Add
038	751-12089	HOSE, BREATHER	N/A	POA
039	751-12647	MUFFLER EXHAUST	£224.31	Add
