MTD015291

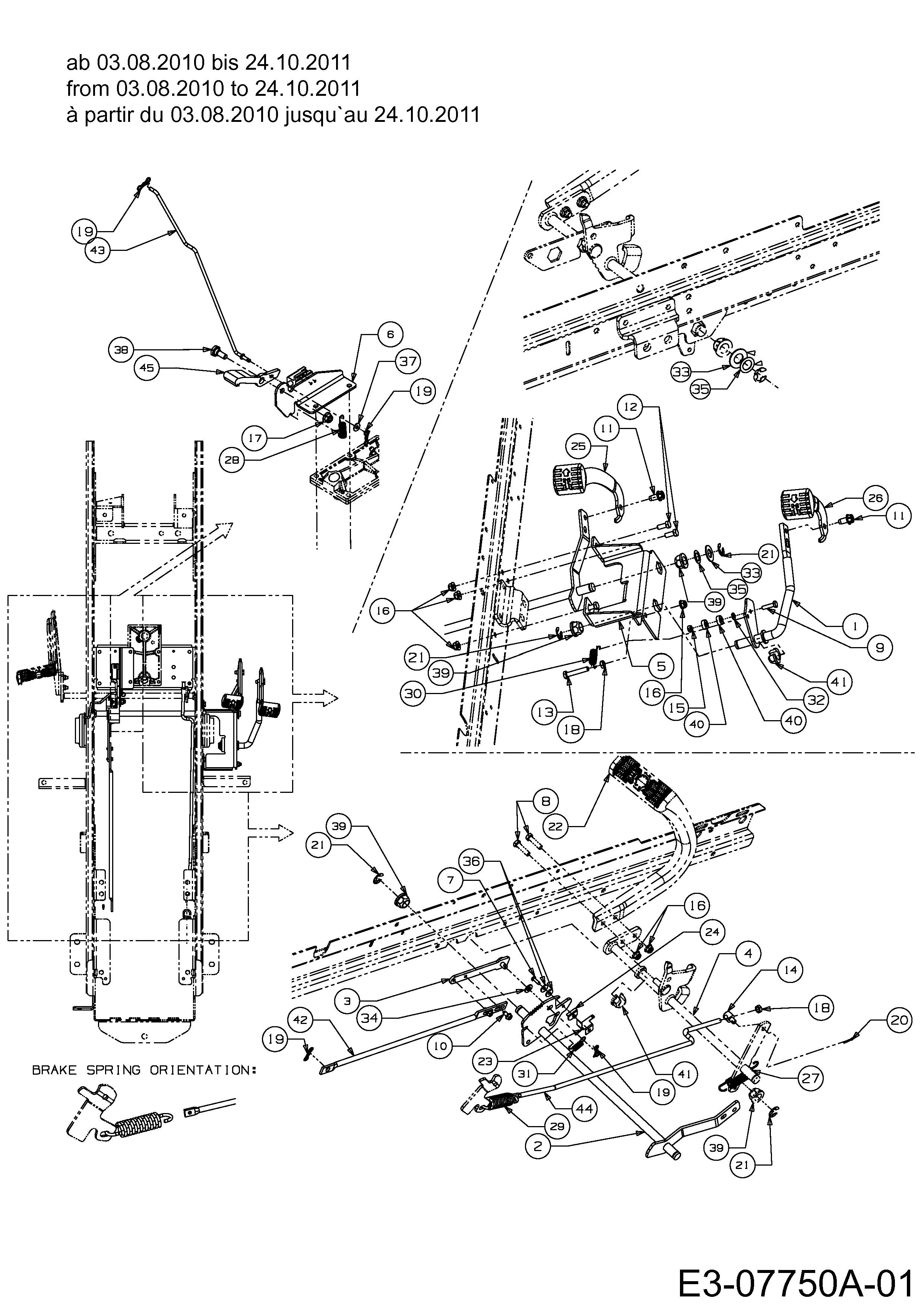

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04807	SHAFT REVERSE PEDAL	£47.88	Add
002	603-04808		N/A	POA
003	603-04856		N/A	POA
004	603-04899		N/A	POA
005	703-07921		N/A	POA
006	703-08010B		N/A	POA
007	710-0651	SCR:B:#10-16:0.625:HEX 710-0436	£10.32	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0597	HEX SEMS SCREW	£2.97	Add
010	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
011	710-0623	SCR:TT:3/8-16:.750 HXINDWSH	£6.30	Add
012	710-3008	HEX BOLT	£3.03	Add
013	710-3180	SCREW HEX CAP	£5.00	Add
014	711-1155	FRL:5/16-18X.312:HT.TR.	£10.93	Add
015	712-0291	LOCK-NUT	£2.77	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	712-04065	NUT	£4.02	Add
018	712-3007	HEX JAM NUT	£3.07	Add
019	714-04040	PIN-COTTER	£4.38	Add
020	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
021	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
022	719-04647A	PEDAL-BRAKE	£95.31	Add
023	725-05050	SW:SPR:SNGL MT	£7.13	Add
024	726-04089	PLT:INSL:SW	£5.00	Add
025	731-3247	PEDAL-FORWARD	£87.61	Add
026	732-3248		N/A	POA
027	732-04323B	SSPR:EXTN:.770 DIA x 3.720 LG	£17.58	Add
028	732-04354	Spring	£16.85	Add
029	732-04889	SPRING-BRAKE TENSION	£25.20	Add
030	732-3002	SPR:EXT: .51 OD X 2.12 LG	£10.32	Add
031	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
032	736-0142	WASHER:FLAT:.281 x.50 x.063	£3.59	Add
033	736-0187	FLAT WASHER	£3.19	Add
034	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
035	736-0773	WASH:FLAT:16x22x1 DIN 988	£2.93	Add
036	736-0400	FLAT WASHER .194x.620Dx.63TH	£3.77	Add
037	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add
038	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
039	741-0225	HEX FLANGE BEARING	£4.92	Add
040	741-04280	BRG:BALL:.25x.6875x.25:DS	£11.43	Add
041	741-3065B	BRG HEX FLG .628 ID SPLIT	£6.54	Add
042	747-05370A		N/A	POA
043	747-05408	ROD CRUISE CONTROL	£36.31	Add
044	747-05439A	brake rod	£36.02	Add
045	748-04203	LATCH:CRUS	£17.46	Add
