MTD015267

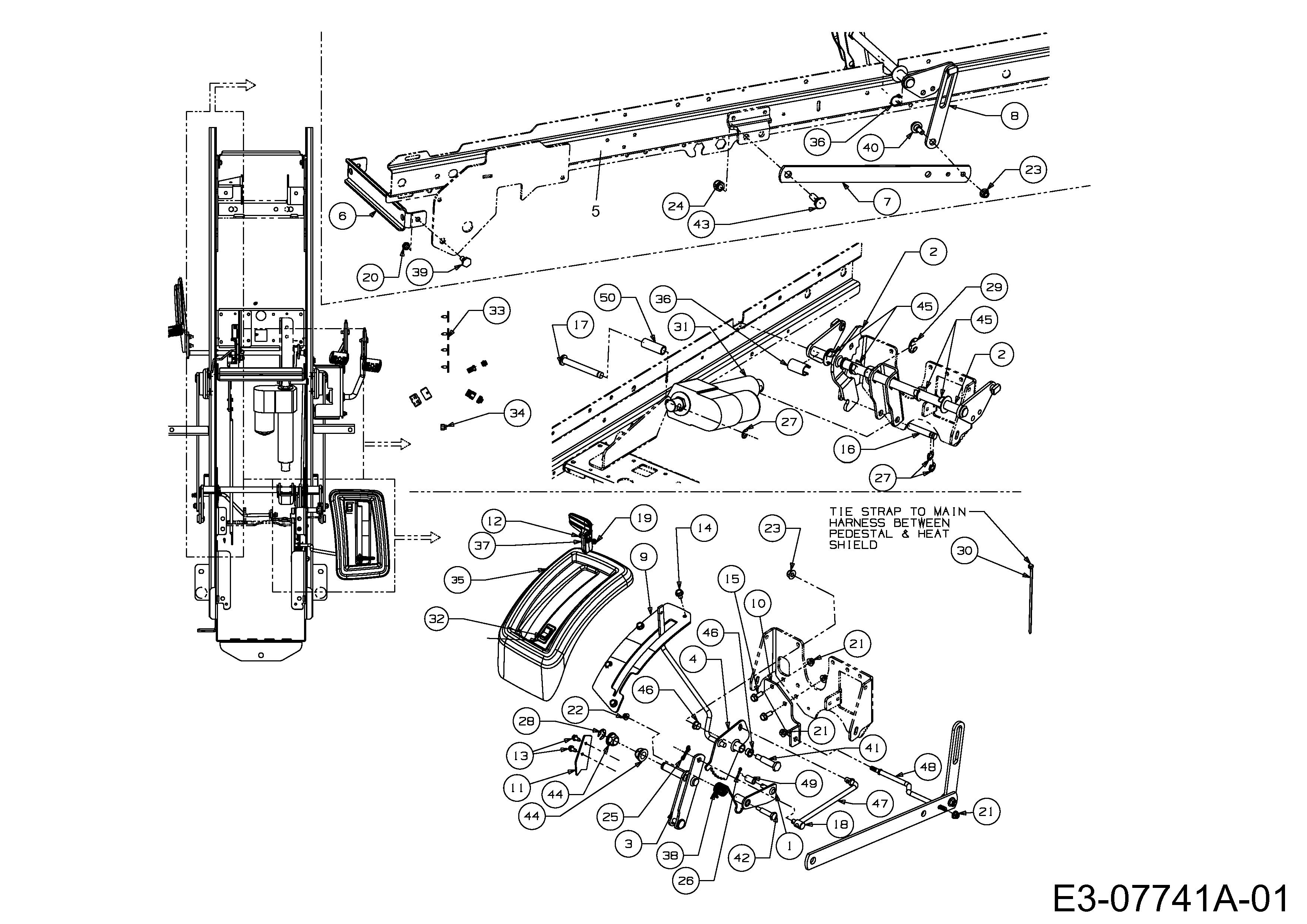

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04827	HUB LIFT	£47.78	Add
002	603-04836	LIFT SHAFT ASSY.	N/A	POA
003	603-04837A	ARM HEIGHT SETTING	£61.19	Add
004	603-04861	LEVER HEIGHT POSITION	£61.28	Add
005	603-04939		N/A	POA
006	703-07954A		N/A	POA
007	703-07993A		N/A	POA
008	703-08245A		N/A	POA
009	703-08254A		N/A	POA
010	703-08474		N/A	POA
011	703-08485		N/A	POA
012	710-0425	SCR:MACH:#10-24:0.625:TRUSPHI	£8.11	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0604A	SCREW	£3.62	Add
015	710-1238	SCREW	£3.20	Add
016	711-05489	PIN LIFT ACTUATOR	N/A	POA
017	711-05501A	Bolt	£13.79	Add
018	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
019	712-0161	NYLOK NUT #10-24	£6.05	Add
020	712-0266A	NUT:JAMLK:3/8-16:GR5	£4.39	Add
021	712-04063	FLANGED NUT	£4.20	Add
022	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
023	712-04065	NUT	£4.02	Add
024	712-3083	NUT	£2.79	Add
025	714-04040	PIN-COTTER	£4.38	Add
026	714-0474	PIN (RED)	£3.20	Add
027	716-0104	RETAINING RING 1650-001	£3.58	Add
028	716-0106A	RING E TYPE .625 DIA SHAFT	£3.33	Add
029	716-0136	RING:RET:TYPE-E .875 DIA	£3.49	Add
030	725-0157	NO LONGER AVAILABLE	N/A	POA
031	725-04500	ACTR:LIFT:PLOW	£646.09	Add
032	725-04704	SWITCH	£56.26	Add
033	725-05190A	HARNESS DECK LIFT	£130.43	Add
034	725-1543	725-1543	£5.31	Add
035	731-07913	COVER-HARD TOP	£40.18	Add
036	731-07993A	SPACER SNAP	£13.43	Add
037	731-08170	KNOB CUTTING HEIGHT	£16.72	Add
038	732-0874	SPRING-TORSION	£11.98	Add
039	738-0234	SCREW-SHLD	£11.63	Add
040	738-04428	SCREW-SHOULDER	£22.12	Add
041	738-0533	SHLD SCREW	£6.33	Add
042	738-0560	NO LONGER AVAILABLE	N/A	POA
043	738-0744A	SCR:SHLDR:.625x.36:1/2-13	£20.33	Add
044	741-0225	HEX FLANGE BEARING	£4.92	Add
045	741-04504	BRG:HEX FLG:SPLIT	£14.44	Add
046	741-0491	BEARING-NYLINER	£12.94	Add
047	747-05456	ROD ADJUSTMENT LIFT	£36.87	Add
048	747-05462	ROD DECK ANTI SWAY	£37.78	Add
049	750-05505A	SPACER-PULLEY	£15.39	Add
050	750-05594	SPACER-PULLEY	£25.20	Add
