MTD014027

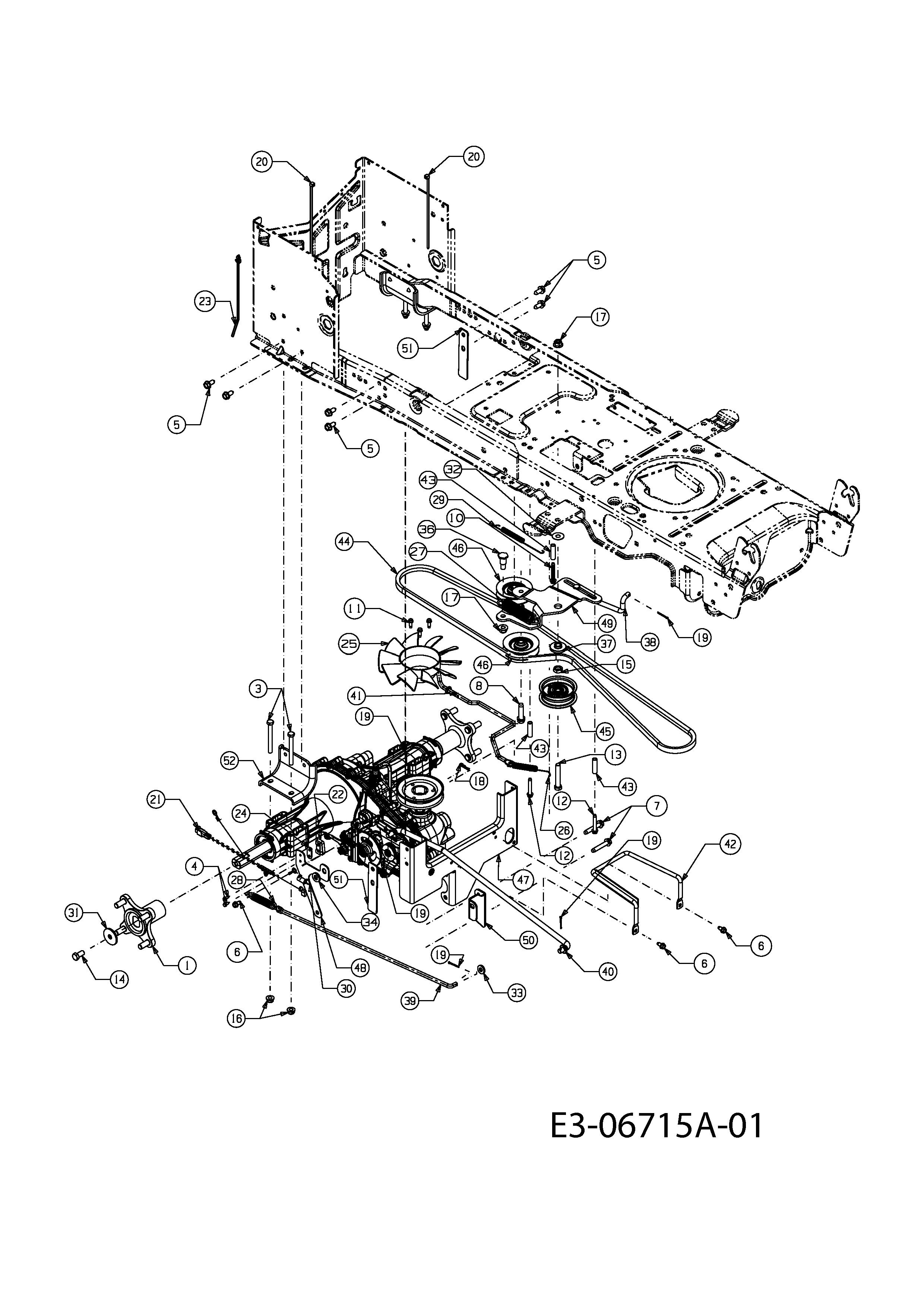

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04317	HUB ASSY-WHEEL	£103.38	Add
002	618-04917	TRANSMISSION HYDRO ASSY.	£1,171.54	Add
003	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add
004	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-0909A	NO LONGER AVAILABLE	N/A	POA
008	710-1007	SCREW HEX HD TAP	£4.14	Add
009	710-1008	NO LONGER AVAILABLE	N/A	POA
010	710-1026	SCREW	£3.91	Add
011	710-1189	NO LONGER AVAILABLE	N/A	POA
012	710-1325	SCR:TT:1/4-20:1.625:HXINDWSH	£3.77	Add
013	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
014	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
015	712-0240	NUT	£3.62	Add
016	712-04063	FLANGED NUT	£4.20	Add
017	712-04065	NUT	£4.02	Add
018	714-0104	PIN INTERNAL COTTER	£2.78	Add
019	714-0111	COTTER PIN	£3.20	Add
020	725-0157	NO LONGER AVAILABLE	N/A	POA
021	725-04791A	HARN:JUMPER:NX9:HYD GND & REV	£25.29	Add
022	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
023	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
024	726-0320	INSULATING PLATE	£2.97	Add
025	731-1449A	FAN:BLADE:10	£22.24	Add
026	732-04528		£9.70	Add
027	732-04792	SPR:EXTN:1.00 OD x 4.75 x .125	£12.84	Add
028	732-07160		N/A	POA
029	732-0932	NO LONGER AVAILABLE	N/A	POA
030	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
031	736-0227	WASH:FLAT:.390x1.500x.134	£10.28	Add
032	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
033	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
034	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
036	738-0430	SHLD-SCR: .50 x .685:3/8-16	£8.01	Add
037	738-04420	SPCR:SHLDR:1.375x .380x .183	£4.62	Add
038	747-04957A	ROD:TRANS:FOOTPEDAL BYPASS	£12.14	Add
039	747-05124	brake rod	£16.96	Add
040	747-05125A	ROD CONTROL	£31.44	Add
041	747-05130	ROD,HYDRO DISENGAGEMENT	£23.09	Add
042	747-05181	BELT KEEPER	£21.60	Add
043	750-04456	SPACER	£5.75	Add
044	754-04244A	BELT	£104.25	Add
045	756-04224	IDLER PULLEY	£28.15	Add
046	756-04325	PULLEY	£35.65	Add
047	783-05443A		N/A	POA
048	783-05841	BRACKET-SWITCH	N/A	POA
049	783-06027A	BRACKET-IDLER	£28.82	Add
050	783-06501A		N/A	POA
051	783-06503	PLATE BRACKET	£9.51	Add
052	783-0693A		N/A	POA
