FG021_0010

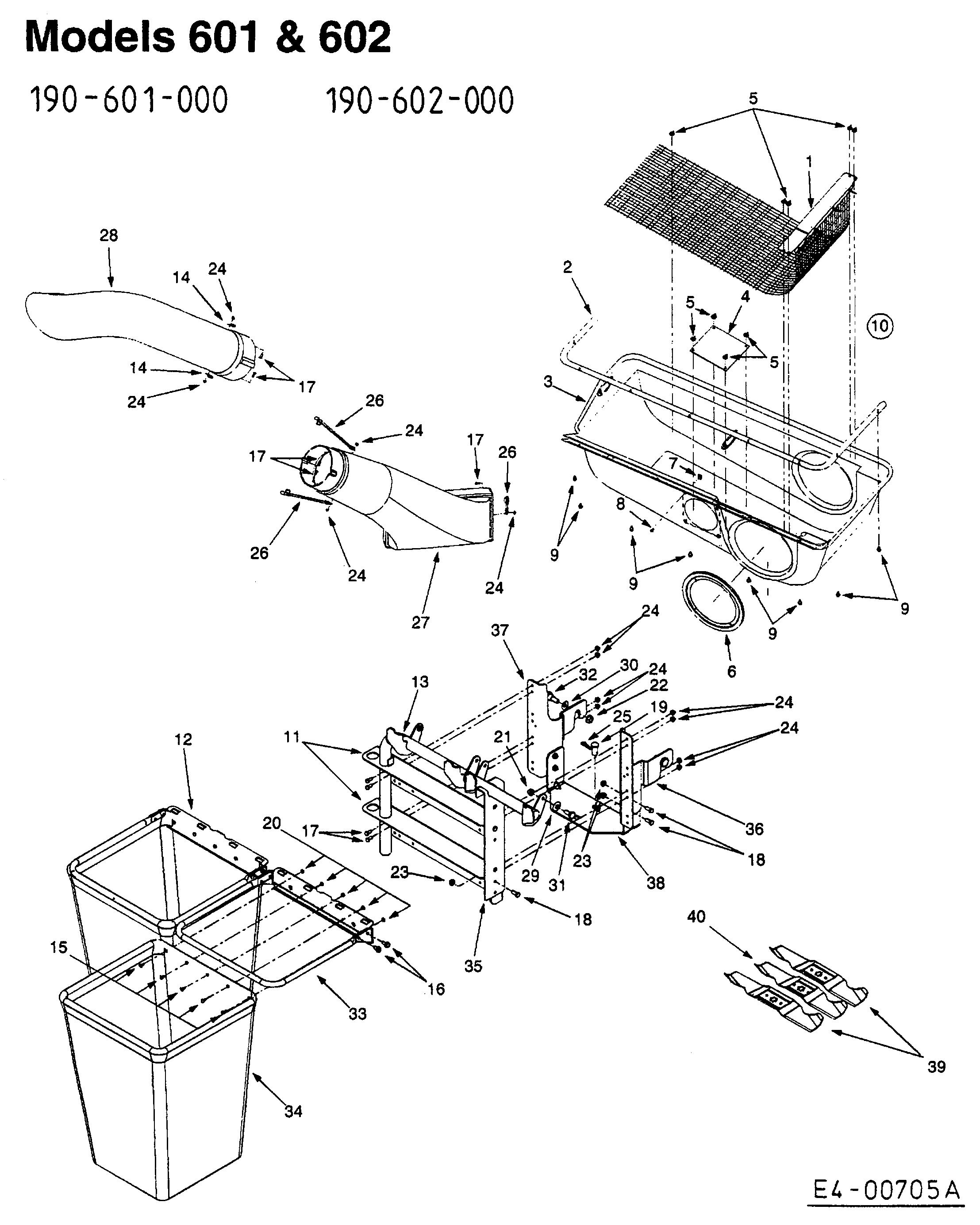

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	16847A	NO LONGER AVAILABLE	N/A	POA
002	16596	BRACKET-SHIELD MTG	£82.47	Add
003	664-04017	COVER GRASS CATCHER DOUBLE BAG	£208.66	Add
003	631-0007	COVER ASSY-GRASS	£213.43	Add
004	731-0824A	PLATE-PLASTIC	£11.55	Add
005	726-0258	ZIP TWIST FASTENER (FOR Ò 1/4	£10.83	Add
006	723-0412	SEAL (7.1")	£44.79	Add
006	723-0413	SEAL-OIL	£24.91	Add
007	712-0147	NO LONGER AVAILABLE	N/A	POA
008	710-1388	SCREW	£3.23	Add
008	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
009	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0896	SCREW WITH WASHER ST	£4.97	Add
010	664-04017	COVER GRASS CATCHER DOUBLE BAG	£208.66	Add
010	631-0007	COVER ASSY-GRASS	£213.43	Add
011	16587B-0637	BRACKET-MTG 16587B	£58.12	Add
012	16591A	Bracket	£76.46	Add
013	16592	TUBE ASSY-SUPPORT	£97.78	Add
014	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
015	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
016	710-0604A	SCREW	£3.62	Add
017	710-0751	BOLT 069	£3.39	Add
018	710-3008	HEX BOLT	£3.03	Add
019	711-0309	Bolt	£9.50	Add
020	712-0272	NUT SEMS:#10-24	£3.39	Add
021	712-0431	NUT	£3.20	Add
022	712-0459	LOCK NUT	£4.59	Add
023	712-3004A	HEX FLANGE NUT	£2.97	Add
024	712-3027	LOCK NUT	£2.79	Add
025	714-0117	PIN:COT:INT: .148 x 3.00	£4.87	Add
026	723-0383	STRAP ASSY-RETAINER	£9.93	Add
027	731-0827D	CONNECTING TUBE 731-0827A	£185.26	Add
027	731-0925C	CONNECTING TUBE 731-0925	£138.02	Add
028	731-0899E	TUBE:CHUT:GRASS CATCHER	£249.84	Add
028	731-0926B	TUBE-CHUTE 731-0926	£149.53	Add
029	736-0255	WASHER, BELL, .515 X 1.14 X .04 THK	£3.90	Add
029	736-0253	WASH:BLVL:.525 x 1.000 x.050	£3.87	Add
030	736-0407	WASHER	£11.84	Add
031	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
032	738-1020	SCR:SHLDR:.625 x.500:7/16-20	£9.50	Add
033	749-0701A	FRAME-GRASS BAG	£125.15	Add
034	764-0221	BAG-GRASS	£92.61	Add
035	783-0601	LINK	£32.13	Add
036	783-0673	CHANNEL,RH CASTOR	£69.63	Add
037	783-0764A	SUSPENSION BRACKET	£69.63	Add
038	783-0765	BRACKET-VERTICAL MTG	£75.52	Add
039	742-0644	THREE-IN-ONE BLADE	£29.41	Add
040	742-0645	BLADE 14.88"LG.	£27.24	Add
