MTD009793

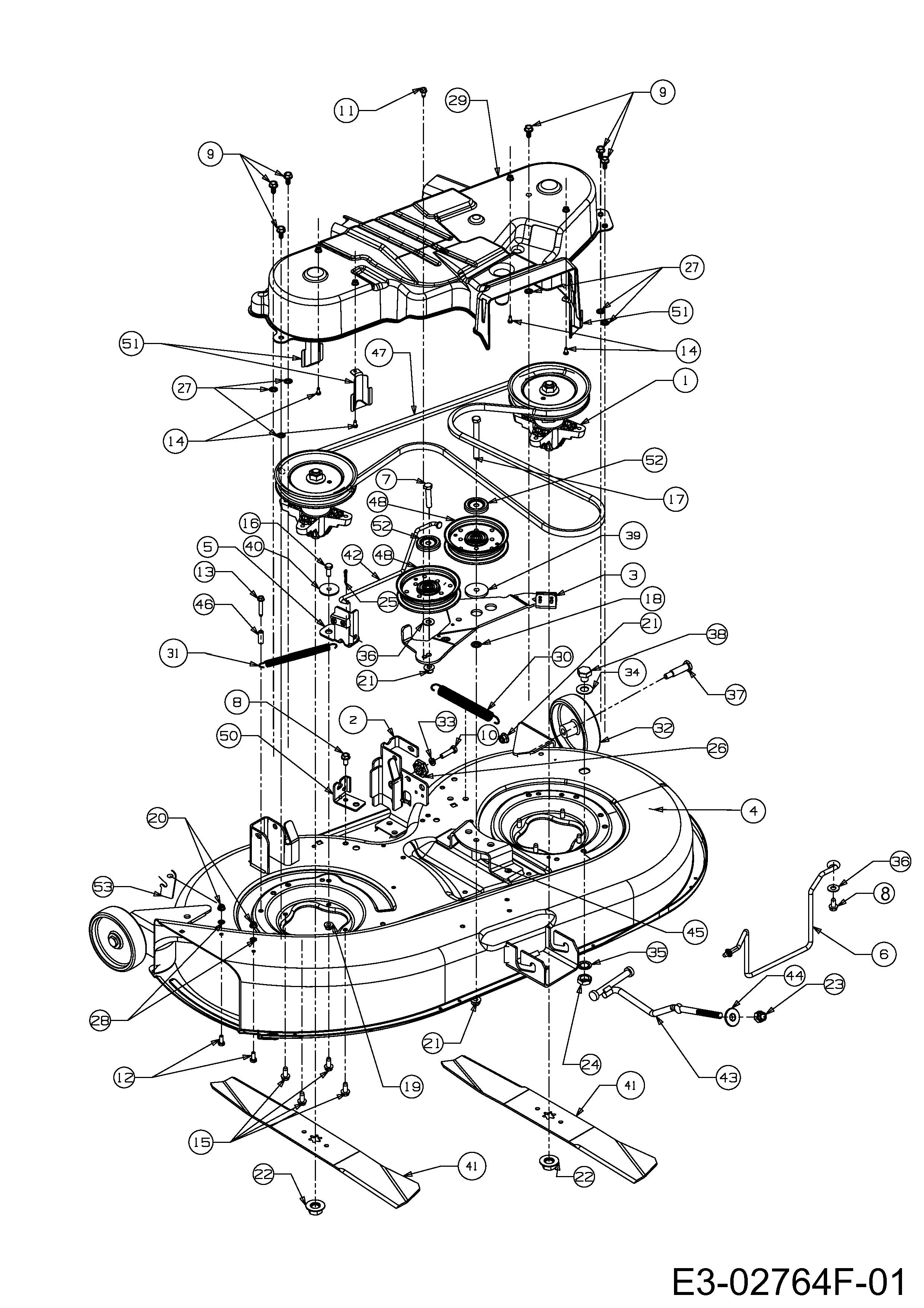

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04456B	SPINDLE ASSY PULLEY 6.3 DIA	£131.19	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
003	683-04138B	BRAKE ASM:DECK:42"	£40.90	Add
004	683-04162A-S	DECK ASM:SD 42" W/WHL BRKT	£470.43	Add
005	983-04167	BRAKE ASM:DECK 42" 683-04167	£23.95	Add
006	683-04443	ROD ASM:KEEPR:BELT 42":PAINT	N/A	POA
007	710-0347	HEX SCR	£3.72	Add
008	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
009	710-05045A	SCR:TT:5/16-18:.750:HXINDWSH	£6.24	Add
010	710-0528	SCREW (DNR)	£3.55	Add
011	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
012	710-0751	BOLT 069	£3.39	Add
013	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
014	710-0919	SCREW TAPP	£3.07	Add
015	710-1260A	SCREW	£4.00	Add
016	710-3008	HEX BOLT	£3.03	Add
017	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
018	712-0229	NUT PUSH	£5.20	Add
019	712-04063	FLANGED NUT	£4.20	Add
020	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
021	712-04065	NUT	£4.02	Add
022	712-05134	BLADE NUT	£3.81	Add
023	712-04243	NUT	£5.00	Add
024	712-0641	NUT	£6.47	Add
025	714-04040	PIN-COTTER	£4.38	Add
026	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
027	726-0201	SPEED NUT	£3.10	Add
028	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
029	731-05657B	COVER	£36.79	Add
030	732-04280B	EXT SPRING	£18.09	Add
031	732-04287	EXT SPRING	£16.41	Add
032	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
033	736-0119	LOCK WASHER 5/16	£3.33	Add
034	736-0187	FLAT WASHER	£3.19	Add
035	736-0225	WASHER (RED)	£5.32	Add
036	736-0300	WASHER	£2.81	Add
037	738-0373	AXLE BOLT	£6.84	Add
038	738-04146	PLUG:BOLT:M16 X 1.5	£8.94	Add
039	738-04162C	SPACER	£5.00	Add
040	738-04166	SPACER	£5.21	Add
041	742-0674-637	BLADE 21.20"LG STAR LOW BLACK	£55.23	Add
042	747-04379A	BRAKE ROD	£25.27	Add
043	747-04882	ROD DECK FRONT ADJUSTER	£37.88	Add
044	748-04069	PIVOT CUP	£4.12	Add
045	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
046	750-0566A	SPACER	£7.75	Add
047	754-04060C	BELT	£62.72	Add
048	753-08171	KIT IDLER PULLEY	£37.57	Add
049	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
050	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
051	783-05497-Z	BRKT:KEEPR:BELT:ZINC PLATED	£24.51	Add
052	783-07236	PULLEY CAP	£10.42	Add
053	783-1025	STOP:CHUTE	£7.30	Add
