MTD010797

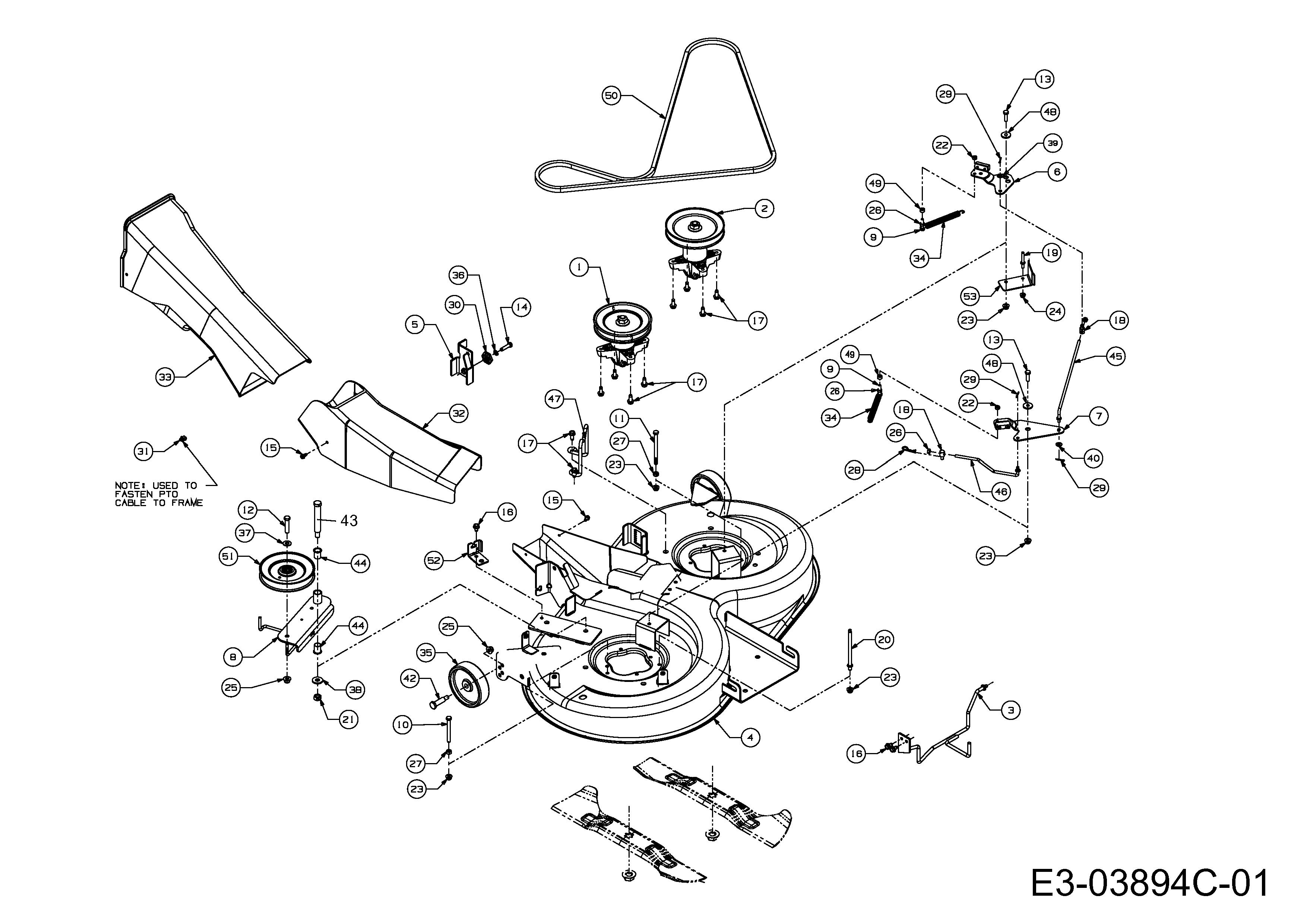

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010797

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 918-04657A SPDL ASM V BELT PULLEY £132.94 Add
002 618-0609C SPDL ASM:PUL:6.482 DIA GRS N/A POA
003 647-04143 ROD ASM:FR:105cm N/A POA
004 683-04390D-S DECK ASM:105cm:LT-5 £630.00 Add
005 683-04396637 BRKT ASM:DECK:HNGR ADJ £24.00 Add
006 983-04409 BRAKE ASM:DECK:30IN £21.98 Add
007 983-04417 BRAKE ASM:DECK £21.70 Add
008 683-04420 BRKT ASM:IDLR N/A POA
009 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.95 Add
010 710-0189 HHCS:5/16-18:3.00:GR5:STD £4.62 Add
011 710-0190 HHCS:5/16-18:4.00:GR5:STD £5.31 Add
012 710-0347 HEX SCR £3.72 Add
013 710-0376 SCREW HEX CAP 5/16 £9.02 Add
014 710-0528 SCREW (DNR) £3.55 Add
015 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
016 710-0607 SELF TAP SCREW £4.71 Add
017 710-1260A SCREW £4.00 Add
018 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £15.86 Add
019 711-0993 BELT GUARD PIN Ò1/4 x 1.43 £4.50 Add
020 711-1044A PIN:BELT GUARD:5/16 x 4.75 LG £7.41 Add
021 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.78 Add
022 712-0291 LOCK-NUT £2.77 Add
023 712-04063 FLANGED NUT £4.20 Add
024 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
025 712-04065 NUT £4.02 Add
026 712-3006 NUT £2.77 Add
027 712-3010 NUT 5/16 x 18 £2.77 Add
028 714-0145 R CLIP £2.78 Add
029 714-0507 COTTER PIN 3/32 DIA £3.13 Add
030 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
031 729-04033 NO LONGER AVAILABLE N/A POA
032 731-06251 LOWER CHUTE £66.87 Add
033 731-06252 UPPER CHUTE £86.01 Add
034 732-0604A SPR:EXT: .56 DIA x 5.52 LG £17.65 Add
035 734-0973 WHEEL DECK 5in. DIA £11.16 Add
036 736-0119 LOCK WASHER 5/16 £3.33 Add
037 736-0300 WASHER £2.81 Add
038 736-04097A WASHER £3.33 Add
039 736-0700 FLAT WASHER £2.63 Add
040 736-3020 WASH:FLAT:.271 X.630 X.065 £2.98 Add
042 738-0373 AXLE BOLT £6.84 Add
043 738-0476 SHOULDER SCREW £4.70 Add
044 741-0591 FLANGE BEARING £3.44 Add
045 747-04775 ROD:BRAKE:DECK £20.78 Add
046 747-04776 BRAKE ROD £16.83 Add
047 747-04840A BELT KEEPER ROD £12.50 Add
048 748-0234 SHOULDER SPACER £5.43 Add
049 750-05381 SPCR:.254 ID x.500 OD x.275 £4.70 Add
050 754-04174 BELT FOR N DECK (L T AUTO) £75.33 Add
051 756-04050 IDLER PULLEY £38.38 Add
052 783-04740 BRKT:CBL:DECK ENGAGE (OBSOLETE) N/A
053 783-05868 PLT:BELT KEEPER N/A POA
