MTD010788

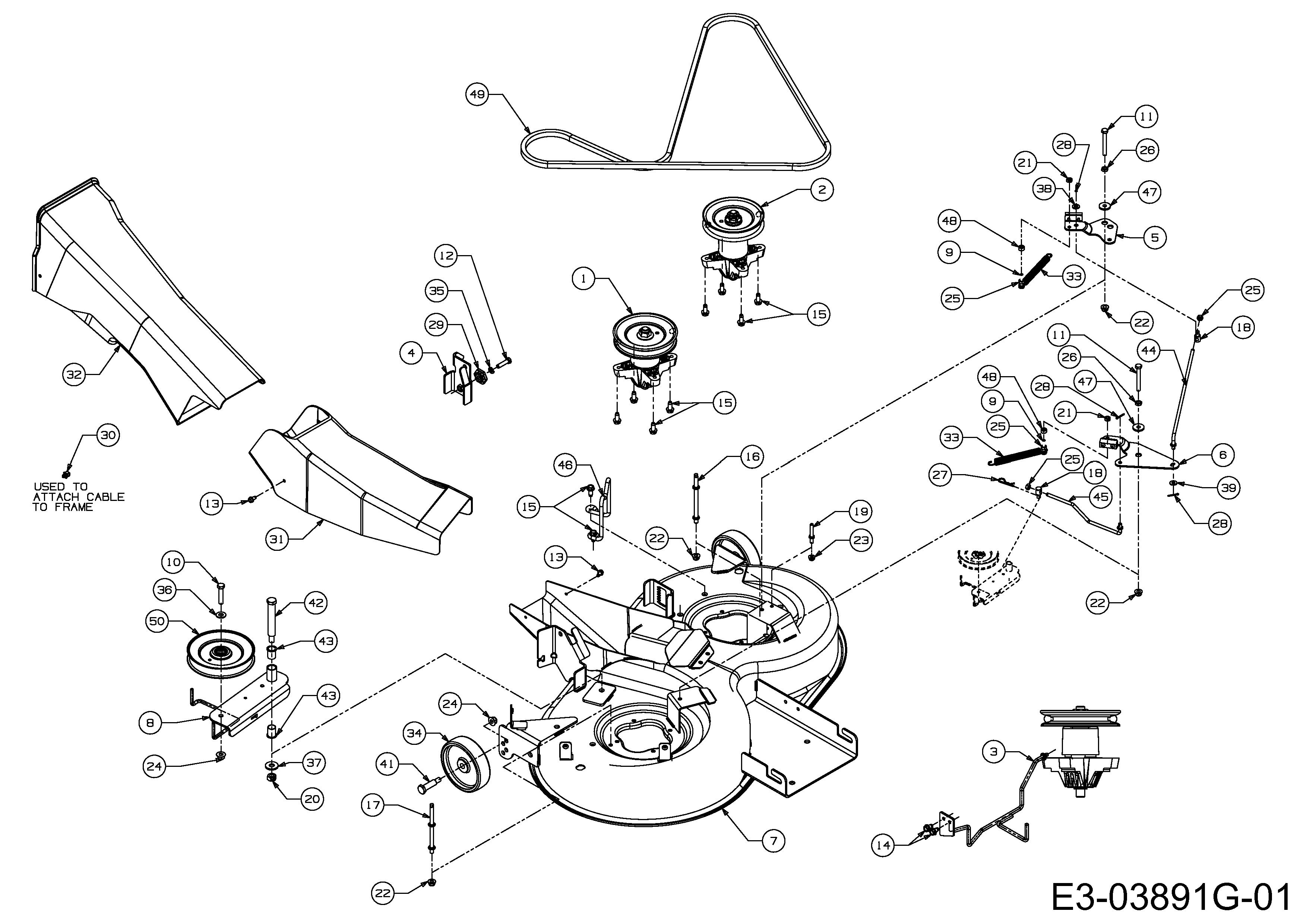

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010788

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
002 918-0409C KNIFE SHAFT ASSEMBLY PULLEY 5.39 DIA £150.30 Add
003 647-04144 KEEPR ASM:FRM:92cm £26.08 Add
004 683-04396637 BRKT ASM:DECK:HNGR ADJ £24.00 Add
005 983-04409 BRAKE ASM:DECK:30IN £21.98 Add
006 983-04417 BRAKE ASM:DECK £21.70 Add
007 683-04418E-S DECK 92CM BLACK £562.16 Add
008 683-04420 BRKT ASM:IDLR N/A POA
009 710-0106 HHCS:1/4-20:1.25:GR5:SPEC £3.95 Add
010 710-0347 HEX SCR £3.72 Add
011 710-0378 HHCS:5/16-18:2.50:GR5:STD £3.80 Add
012 710-0528 SCREW (DNR) £3.55 Add
013 710-0599 HEX TT SCREW 1/4-20 £4.95 Add
014 710-0607 SELF TAP SCREW £4.71 Add
015 710-1260A SCREW £4.00 Add
016 711-05319 PIN:BELT GUARD:5/16x4.75 LG £12.45 Add
017 711-05320 PIN:BELT GUARD:5/16x4.75 LG £14.70 Add
018 711-0736 FERRULE-ADJ:1/4-20 x 1.00 £15.86 Add
019 711-0993 BELT GUARD PIN Ò1/4 x 1.43 £4.50 Add
020 712-0290 NUT 7/16 CAD P/T LOCK TYPE 5 £2.78 Add
021 712-0291 LOCK-NUT £2.77 Add
022 712-04063 FLANGED NUT £4.20 Add
023 712-04064 NUT FLGLK 1/4 20 GRF NYLON £6.63 Add
024 712-04065 NUT £4.02 Add
025 712-3006 NUT £2.77 Add
026 712-3007 HEX JAM NUT £3.07 Add
027 714-0145 R CLIP £2.78 Add
028 714-0507 COTTER PIN 3/32 DIA £3.13 Add
029 717-04074 GEAR DECK ADJUSTMENT £11.11 Add
030 729-04033 NO LONGER AVAILABLE N/A POA
031 731-06251 LOWER CHUTE £66.87 Add
032 731-06252 UPPER CHUTE £86.01 Add
033 732-0604A SPR:EXT: .56 DIA x 5.52 LG £17.65 Add
034 734-0973 WHEEL DECK 5in. DIA £11.16 Add
035 736-0119 LOCK WASHER 5/16 £3.33 Add
036 736-0300 WASHER £2.81 Add
037 736-04097A WASHER £3.33 Add
038 736-0700 FLAT WASHER £2.63 Add
039 736-3020 WASH:FLAT:.271 X.630 X.065 £2.98 Add
041 738-0373 AXLE BOLT £6.84 Add
042 738-0476 SHOULDER SCREW £4.70 Add
043 741-0591 FLANGE BEARING £3.44 Add
044 747-04781 ROD:BRAKE:DECK £22.01 Add
045 747-04782B ROD:BRAKE:DECK £25.24 Add
046 747-04840A BELT KEEPER ROD £12.50 Add
047 748-0234 SHOULDER SPACER £5.43 Add
048 750-05381 SPCR:.254 ID x.500 OD x.275 £4.70 Add
049 754-04175 BELT FOR E. DECK (L.T. AUTO) £67.18 Add
050 756-04050 IDLER PULLEY £38.38 Add
