MTD010798

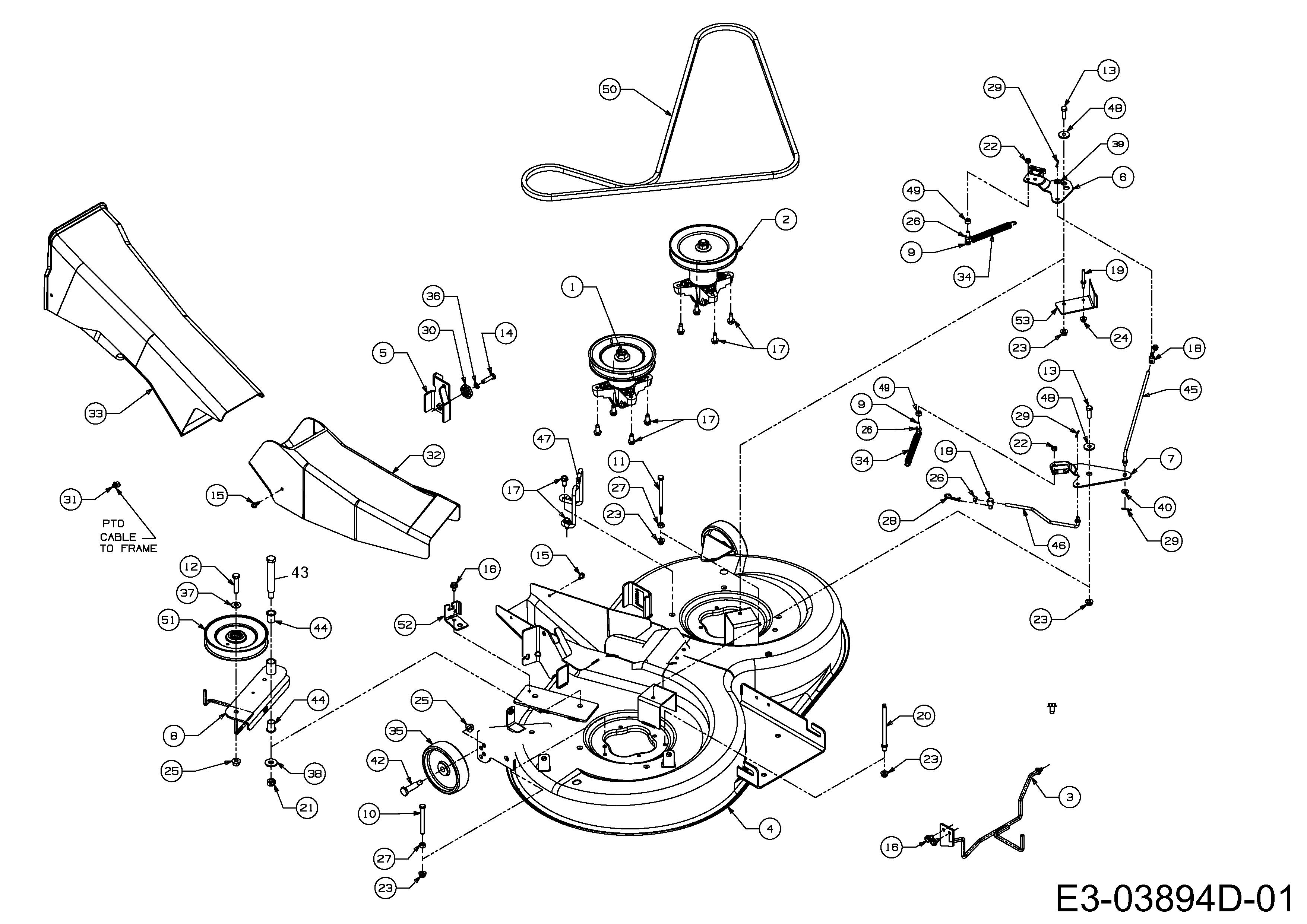

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04657A		N/A	POA
003	647-04143	ROD ASM:FR:105cm	N/A	POA
004	683-04390D-S	DECK ASM:105cm:LT-5	£630.00	Add
005	683-04396637	BRKT ASM:DECK:HNGR ADJ	£24.00	Add
006	983-04409	BRAKE ASM:DECK:30IN	£21.98	Add
007	983-04417	BRAKE ASM:DECK	£21.70	Add
008	683-04420	BRKT ASM:IDLR	N/A	POA
009	710-0106	HHCS:1/4-20:1.25:GR5:SPEC	£3.95	Add
010	710-0189	HHCS:5/16-18:3.00:GR5:STD	£4.62	Add
011	710-0190	HHCS:5/16-18:4.00:GR5:STD	£5.31	Add
012	710-0347	HEX SCR	£3.72	Add
013	710-0376	SCREW HEX CAP 5/16	£9.02	Add
014	710-0528	SCREW (DNR)	£3.55	Add
015	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
016	710-0607	SELF TAP SCREW	£4.71	Add
017	710-1260A	SCREW	£4.00	Add
018	711-0736	FERRULE-ADJ:1/4-20 x 1.00	£15.86	Add
019	711-0993	BELT GUARD PIN Ò1/4 x 1.43	£4.50	Add
020	711-1044A	PIN:BELT GUARD:5/16 x 4.75 LG	£7.41	Add
021	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
022	712-0291	LOCK-NUT	£2.77	Add
023	712-04063	FLANGED NUT	£4.20	Add
024	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
025	712-04065	NUT	£4.02	Add
026	712-3006	NUT	£2.77	Add
027	712-3010	NUT 5/16 x 18	£2.77	Add
028	714-0145	R CLIP	£2.78	Add
029	714-0507	COTTER PIN 3/32 DIA	£3.13	Add
030	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
031	729-04033	NO LONGER AVAILABLE	N/A	POA
032	731-06251	LOWER CHUTE	£66.87	Add
033	731-06252	UPPER CHUTE	£86.01	Add
034	732-0604A	SPR:EXT: .56 DIA x 5.52 LG	£17.65	Add
035	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
036	736-0119	LOCK WASHER 5/16	£3.33	Add
037	736-0300	WASHER	£2.81	Add
038	736-04097A	WASHER	£3.33	Add
039	736-0700	FLAT WASHER	£2.63	Add
040	736-3020	WASH:FLAT:.271 X.630 X.065	£2.98	Add
042	738-0373	AXLE BOLT	£6.84	Add
043	738-0476	SHOULDER SCREW	£4.70	Add
044	741-0591	FLANGE BEARING	£3.44	Add
045	747-04775	ROD:BRAKE:DECK	£20.78	Add
046	747-04776	BRAKE ROD	£16.83	Add
047	747-04840A	BELT KEEPER ROD	£12.50	Add
048	748-0234	SHOULDER SPACER	£5.43	Add
049	750-05381	SPCR:.254 ID x.500 OD x.275	£4.70	Add
050	754-04174	BELT FOR N DECK (L T AUTO)	£75.33	Add
051	756-04050	IDLER PULLEY	£38.38	Add
052	783-04740	BRKT:CBL:DECK ENGAGE (OBSOLETE)	N/A
053	783-05868	PLT:BELT KEEPER	N/A	POA
