MTD010746

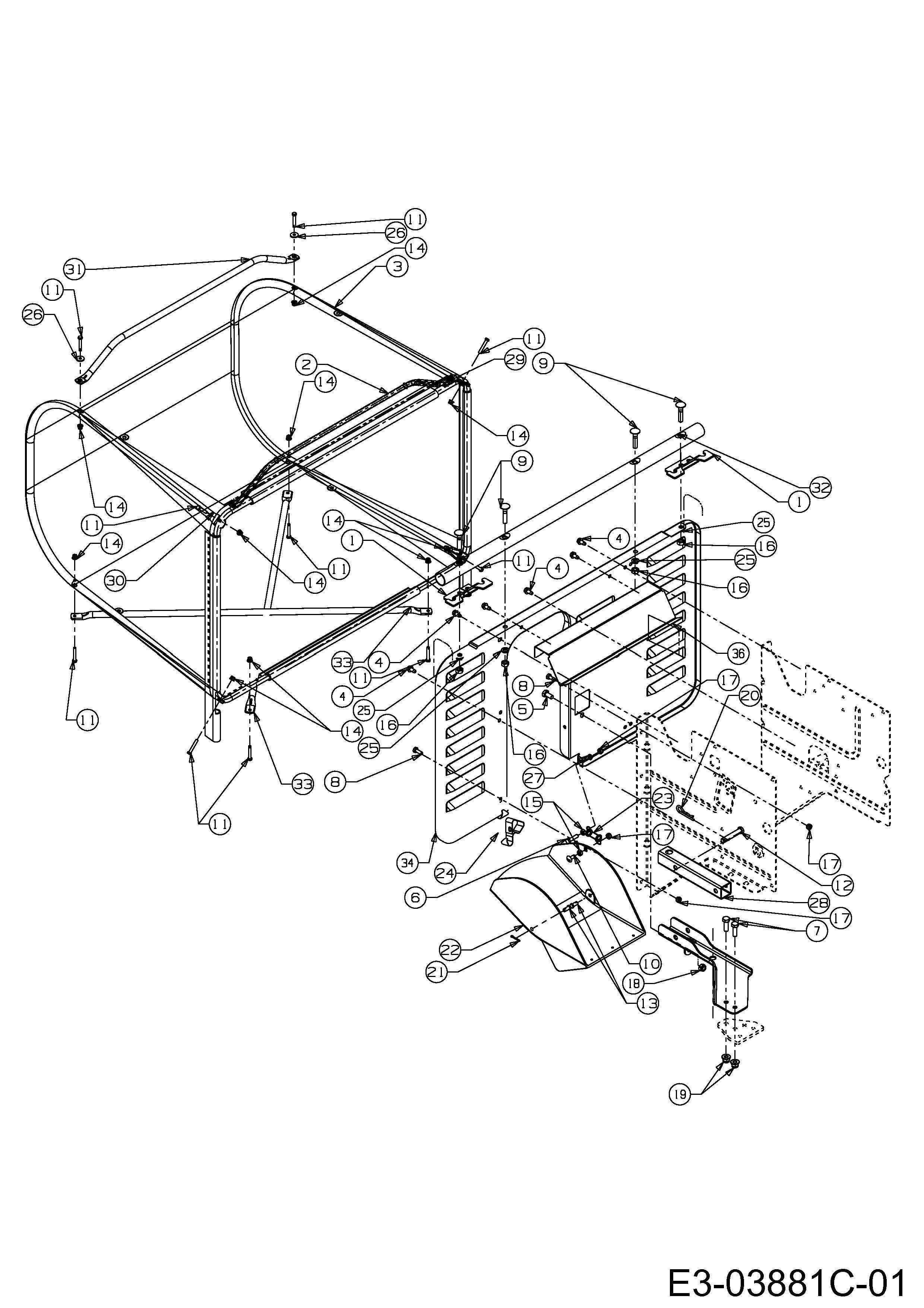

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD010746

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 15995A GRASS CATCHER SUPPORT PLATE N/A POA
002 649-0011637 TUBE ASSY CATCHER £103.09 Add
003 664-0073B BAG ONLY £142.18 Add
004 710-0599 HEX TT SCREW 1/4-20 £4.16 Add
005 710-1376 CAP SCREW £3.79 Add
006 710-1399 SCREW HEX £3.89 Add
007 710-1682 SCR:M8-1:25.00 LG:DIN 933 £3.02 Add
008 710-1690 HHCS:M6-1:16.00 £3.89 Add
009 710-1700 CARRIAGE BOLT M8x40 DIN 603-8. £3.21 Add
010 710-1759 SCREW £3.34 Add
011 710-1798 SCREW M5X30mm (RED) £3.40 Add
012 711-0679A CLEVIS PIN £5.62 Add
013 711-0701 CLEVIS PIN £4.12 Add
014 712-0642 NUT FLGLK M5 0.8 £2.27 Add
015 712-0689 NUT:HEX:M6-1:DIN 934 £2.16 Add
016 712-0690 NUT:HEX:M8-1.25 DIN 934 £2.33 Add
017 712-0691 HEX NUT M6 DIN 985 £1.28 Add
018 712-0692 HEX NUT £2.57 Add
019 712-0714 NUT:FLGLK:M8-1.25 DIN 6926 £3.57 Add
020 714-0147 COTTER PIN £2.96 Add
021 714-0507 COTTER PIN 3/32 DIA £2.65 Add
022 731-1606B CHUT:dis:30" RD DECK £37.27 Add
023 732-0755 EXT SPRING £5.64 Add
024 732-0838A SPRING £5.84 Add
025 736-0119 LOCK WASHER 5/16 £2.81 Add
026 736-0400 FLAT WASHER .194x.620Dx.63TH £3.18 Add
027 736-0648 WASHER:LOCK:B6:DIN 127 £2.12 Add
028 749-04013B-S HITCH TUBE BLACK £26.88 Add
029 749-04226637 SIDE FRAME (LH) £39.60 Add
030 749-04227637 SIDE FRAME (R.H.) £39.60 Add
031 749-0962A637 HANDLE £13.26 Add
032 749-0963637 TUBE:1.25 DIA X 29.4 LG 749-0963 £19.28 Add
033 749-0964637 TUBE 1/2 X 29.51 BLACK £19.74 Add
034 783-0278A-RG BACK PLATE £128.97 Add
035 783-05801 BRKT:HITCH:LT-5 £18.12 Add
036 783-05831 PLT:CVR N/A POA
