MTD018040

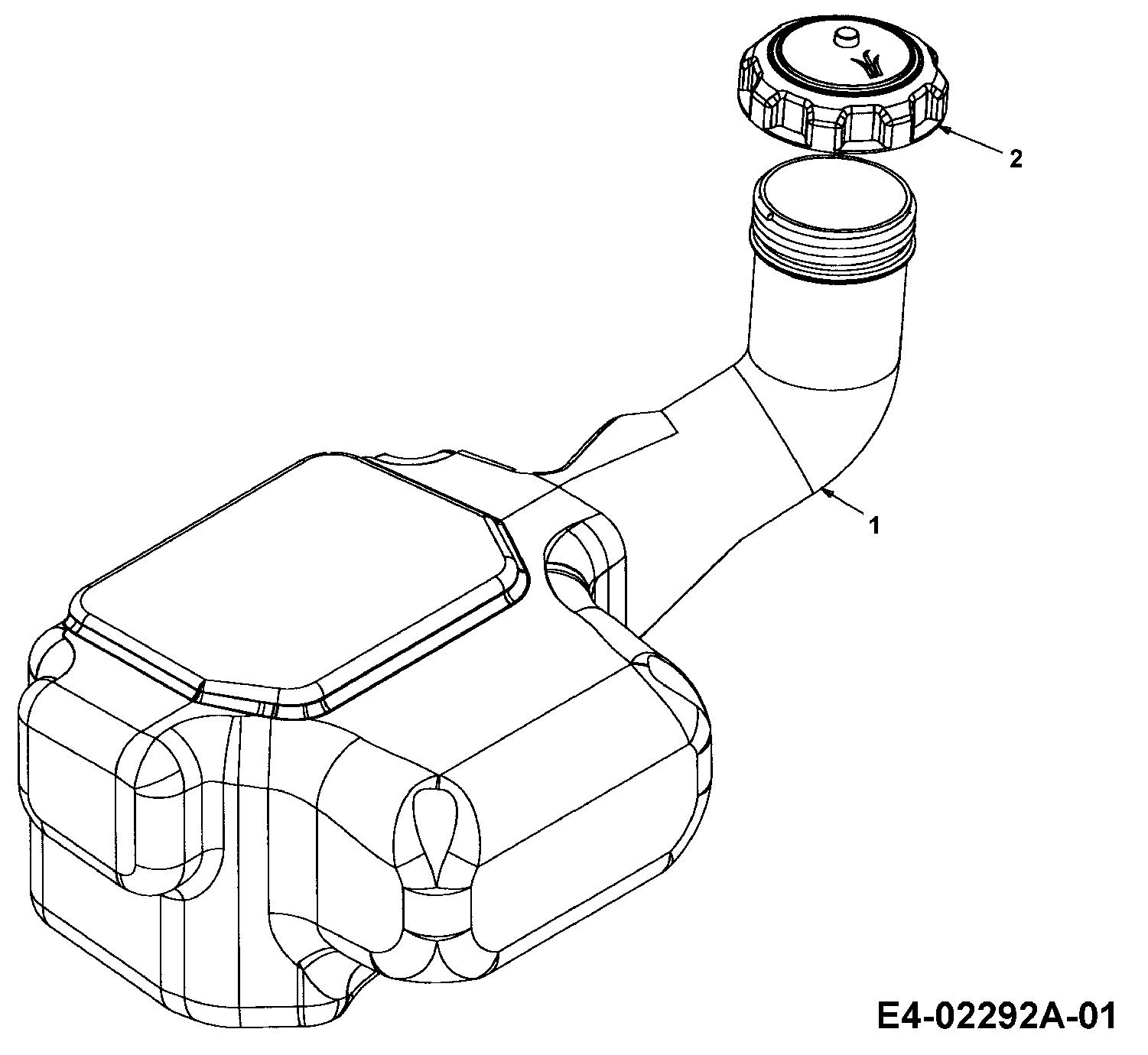

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD018040

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 751-0819B TANK FUEL CUB GT £230.21 Add
002 751-3124B FUEL CAP:3.5 N/A POA
