MTD017985

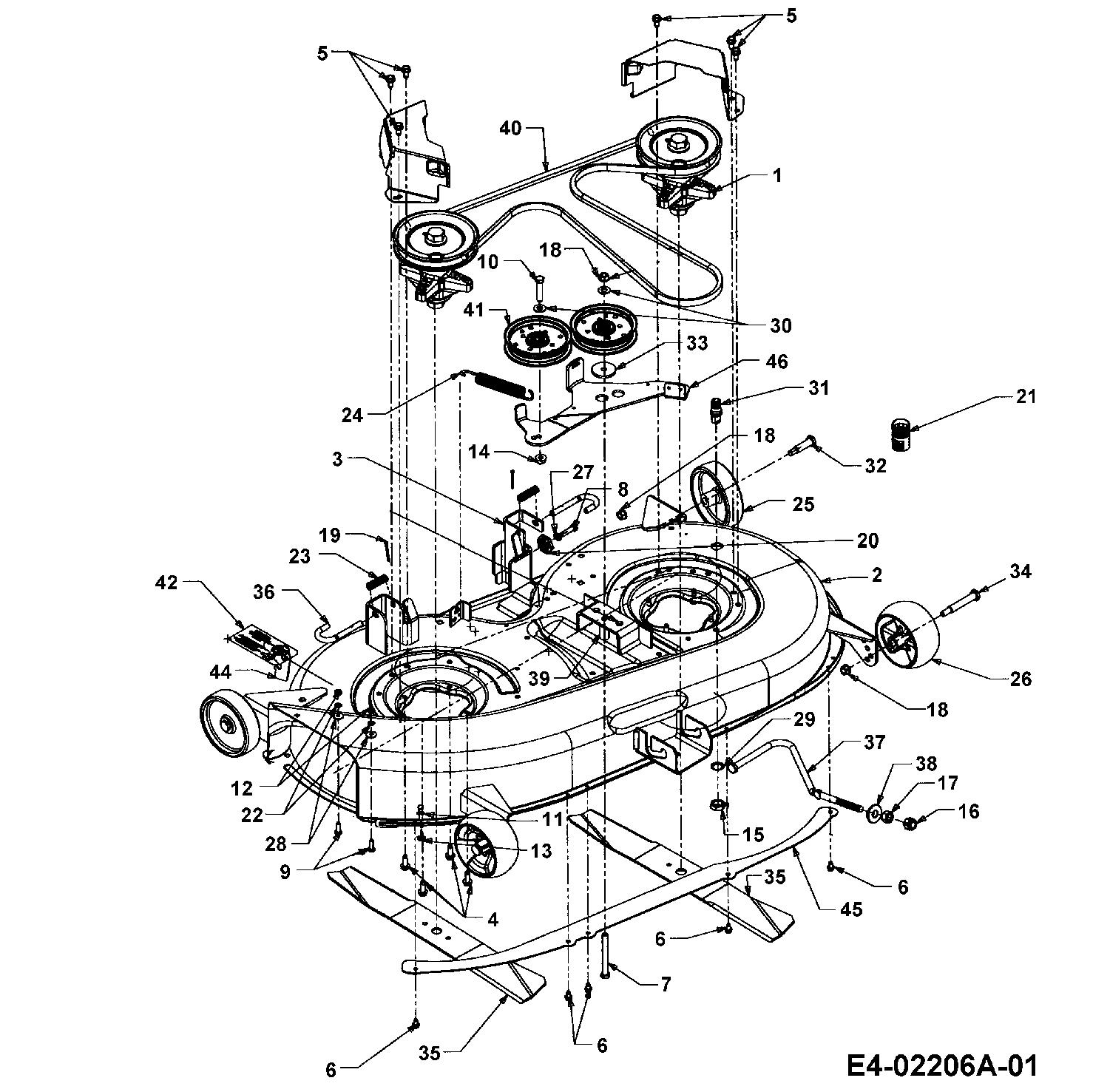

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04124A	SPINDLE ASM W/PULLEY DECK 42"	£220.95	Add
002	683-04171		N/A	POA
003	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
004	710-0650	SCREW	£3.58	Add
005	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
006	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
007	710-3085	HHCS 3/8 16 3.50 GR5 STD	£3.55	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-3015	SCREW HEX CAP	£3.33	Add
010	710-0347	HEX SCR	£3.72	Add
011	711-04069	PIN:GRASSCATCHER:1/4-20	£16.01	Add
012	712-3006	NUT	£2.77	Add
013	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
014	712-04065	NUT	£4.02	Add
015	712-0641	NUT	£6.47	Add
016	712-3083	NUT	£2.79	Add
017	712-0206	NUT	£3.42	Add
018	712-0431	NUT	£3.20	Add
019	714-0470	COTTER PIN	£5.07	Add
020	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
021	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
022	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
023	732-0306A	SPACER	£5.28	Add
024	732-04247	EXTENSION SPRING	£15.24	Add
025	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
026	734-04155	WHEEL:DECK	£16.47	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0270	BELL WASHER	£3.91	Add
029	736-0760	WASHER	£4.01	Add
030	736-0300	WASHER	£2.81	Add
031	737-04003D	NOZ:DECK:WATER	£19.14	Add
032	738-0373	AXLE BOLT	£6.84	Add
033	738-04162C	SPACER	£5.00	Add
034	738-3056	SHOULDER BOLT	£12.94	Add
035	742-04095	BLADE:21.20" LG:CUB	N/A	POA
036	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
037	747-04269A	ROD:DECK:FRNT ADJ .4480" DIA	£22.22	Add
038	748-04069	PIVOT CUP	£4.12	Add
039	750-04446	SPCR:3/8 ID x.68 OD x 1.46 LG	£7.37	Add
040	754-04060C	BELT	£62.72	Add
041	753-08171	KIT IDLER PULLEY	£37.57	Add
042	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
043	783-04327	GUARD BELT	N/A	POA
044	783-1025	STOP:CHUTE	£7.30	Add
045	753-0884	KIT DECK SKIRT	£118.63	Add
046	783-04491A	MOUNTING PLATE	N/A	POA
