MTD018057

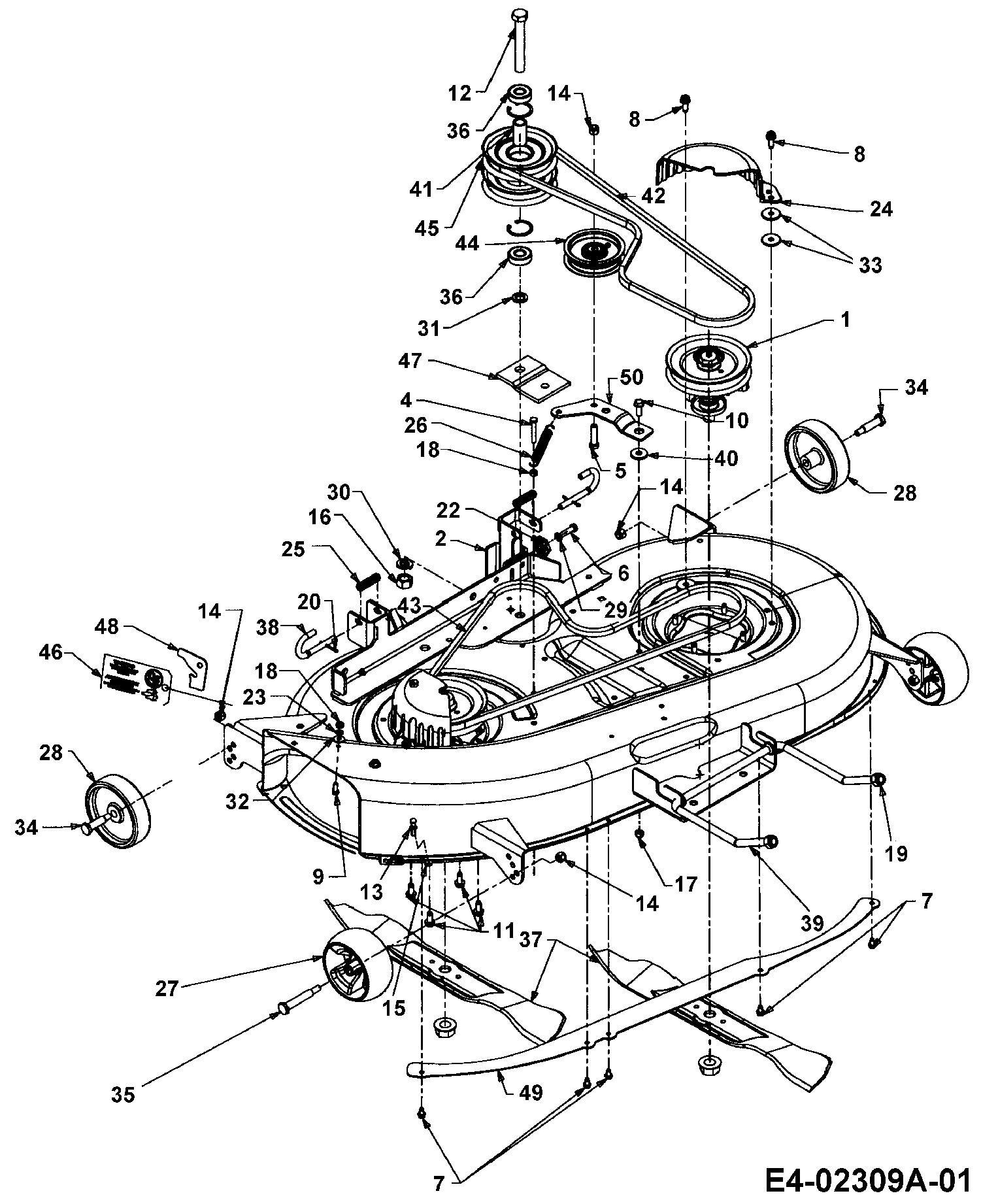

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-0677	SPINDEL ASSY. 42"	£136.79	Add
002	683-0254B637	BRKT:ASM:DECK:HNGR LH LT BLACK	£30.23	Add
003	683-0607B	SHELL-DECK 42" CUB YELLOW-99	£527.42	Add
004	710-0136	Bolt, Hex 1/4-20 x 1-3/4" 1509-069	£3.58	Add
005	710-0344	NO LONGER AVAILABLE	N/A	POA
006	710-0528	SCREW (DNR)	£3.55	Add
007	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
008	710-0650	SCREW	£3.58	Add
009	710-0751	BOLT 069	£3.39	Add
010	710-1238	SCREW	£3.20	Add
011	710-1260A	SCREW	£4.00	Add
012	710-3151	BOLT-HEX	£29.25	Add
013	711-04069	PIN:GRASSCATCHER:1/4-20	£16.01	Add
014	712-04065	NUT	£4.02	Add
015	712-0324	HEX. INS L NUT	£3.69	Add
016	712-0337	NUT-HEX	£14.89	Add
017	712-0429	NUT HEX.INS L NUT	£4.92	Add
018	712-3006	NUT	£2.77	Add
019	712-3083	NUT	£2.79	Add
020	714-0470	COTTER PIN	£5.07	Add
021	716-3020	RING-INTERNAL SNAP	£7.71	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
024	731-2486A	731-2486A	£29.47	Add
025	732-0306A	SPACER	£5.28	Add
026	732-0470A	EXTENSION SPRING	£11.07	Add
027	734-04155	WHEEL:DECK	£16.47	Add
028	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0158	WASHER:LOCK:5/8:SPLT:REG	£3.47	Add
031	736-0162	WASHER:FLAT:.640x1.000x.120	£4.62	Add
032	736-0270	BELL WASHER	£3.91	Add
033	736-0343	WASHER-5/16 x 1.25	£4.57	Add
034	738-0373	AXLE BOLT	£6.84	Add
035	738-3056	SHOULDER BOLT	£12.94	Add
036	741-0524A	BRG BALL 625X40X12:6203	£31.45	Add
037	759-3830	BLADE	£55.77	Add
038	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
039	747-1130B	ROD DECK FRONT ADJUST 5" DIA	£56.36	Add
040	748-0331	SHLD SPACER	£4.23	Add
041	750-0932A	SPACER	£32.45	Add
042	754-0497	BELT-PTO (42" DECKS)	£47.08	Add
043	754-0498	BELT-DECK	£83.76	Add
044	756-0627D	PUL:IDLR:FLAT 3.5 OD	£27.53	Add
045	756-1202	PULLEY-DOUBLE	£169.60	Add
046	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
047	783-04013A	783-04013A-0637	£18.17	Add
048	783-1025	STOP:CHUTE	£7.30	Add
049	753-0884	KIT DECK SKIRT	£118.63	Add
050	783-1291	IDLER BELT KEEPER	£13.56	Add
