MTD018046

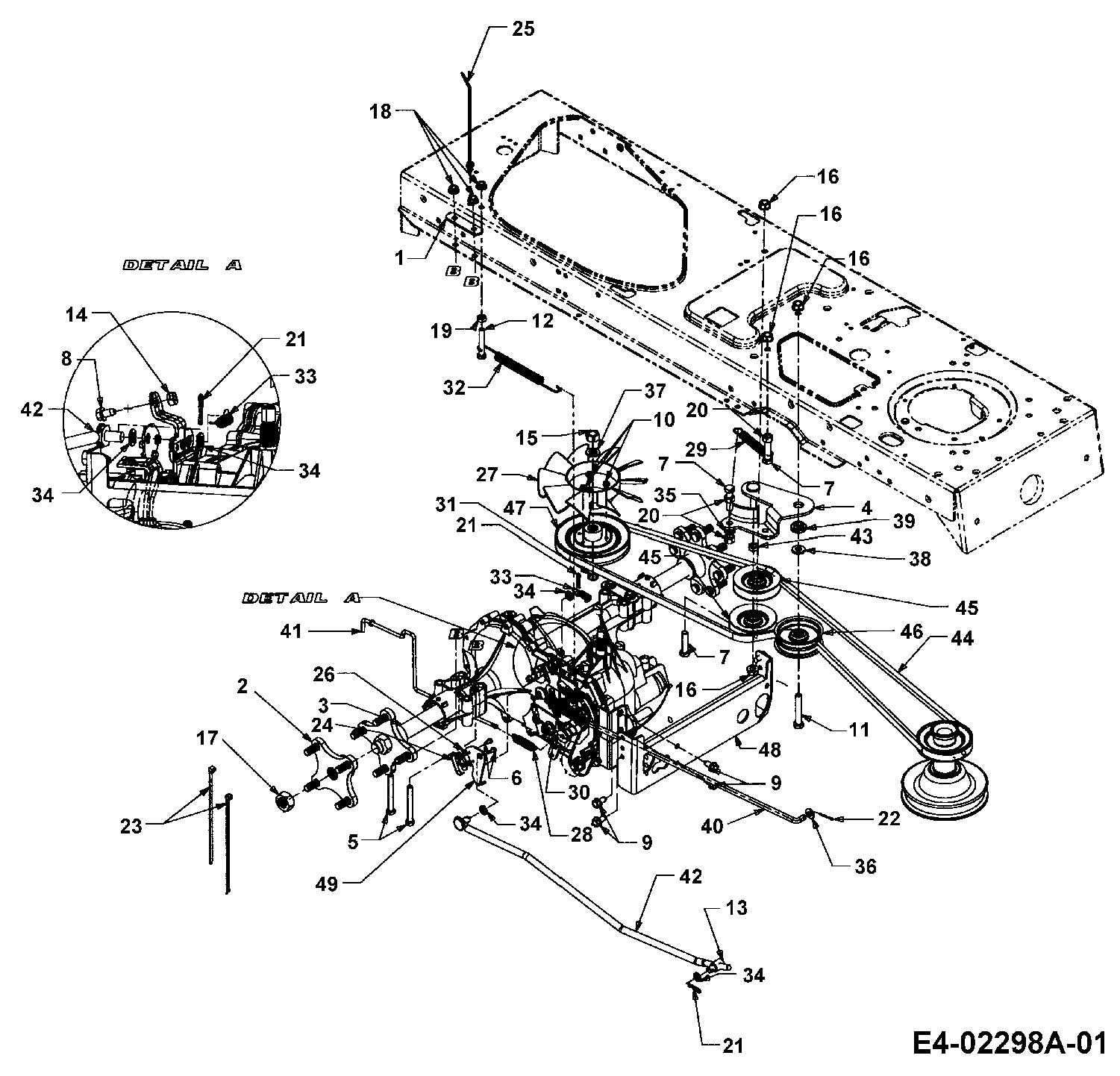

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
002	618-0365	HUB ASSY-RR	£82.49	Add
003	618-0667A	TRANSMISSION HYDROSTATIC	N/A	POA
004	683-04000-Z	NO LONGER AVAILABLE	N/A	POA
005	710-0176	HHCS:5/16-18:2.75:GR5:STD	£6.11	Add
006	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
007	710-0344	NO LONGER AVAILABLE	N/A	POA
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-0726	HEX SCREW AB 5/16-12:0.750	£3.19	Add
010	710-3007	SCR:TT:#12-24:0.375 HXINDWSH	£3.59	Add
011	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
012	710-3103	SCRE.HHCS:5/16-18:2.00:GR5:STD	£3.16	Add
013	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
014	712-0291	LOCK-NUT	£2.77	Add
015	712-0333	NUT:HEX:1/2-20:GR2	£3.20	Add
016	712-0431	NUT	£3.20	Add
017	712-1329	NUT-HEX 3/4-26 GRB	£19.38	Add
018	712-3004A	HEX FLANGE NUT	£2.97	Add
019	712-3010	NUT 5/16 x 18	£2.77	Add
020	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
021	714-0104	PIN INTERNAL COTTER	£2.78	Add
022	714-0111	COTTER PIN	£3.20	Add
023	725-0157	NO LONGER AVAILABLE	N/A	POA
024	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
025	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
026	726-0320	INSULATING PLATE	£2.97	Add
027	731-1449A	FAN:BLADE:10	£22.24	Add
028	732-0209	EXTENSION SPRING	£8.58	Add
029	732-0429A	SPRING EXTENSION	£8.73	Add
030	732-0716D	SPRING EXTENSION	£14.42	Add
031	732-0729	CIRCLIP	£2.98	Add
032	732-0994	SPR:EXTN:.500 DIA x 7.0 LG	£14.30	Add
033	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
034	736-0140	WASH:FLAT:.385 x.62 x.063	£3.59	Add
035	736-0169	L. WASHER	£2.89	Add
036	736-0275	WASH:FLAT:.344 x .688 x.065	£3.07	Add
037	736-0921	WASHER:LOCK:1/2:REGULAR DUTY	£2.98	Add
038	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
039	738-0372B	COLLAR	£5.64	Add
040	747-04139	ROD:BRAKE:HYDRO	£40.83	Add
041	747-1149	ROD-HYDRO BYPASS	£28.16	Add
042	747-1151	ROD-HYDRO CONTROL	£50.37	Add
043	750-0535	SPACER	£10.09	Add
044	754-0640	BELT:V-TYP:A X 79.2 LG CUB	£142.60	Add
045	756-04213	PULLEY	£19.77	Add
046	756-0981B	PUL:IDLR:FLAT 2.75 OD	N/A	POA
047	756-1166	PULLEY:INPUT 5" DIA	£86.09	Add
048	783-0810A	HYDRO TRANS BRACKET	N/A	POA
049	783-1019A		N/A	POA
