MTD011520

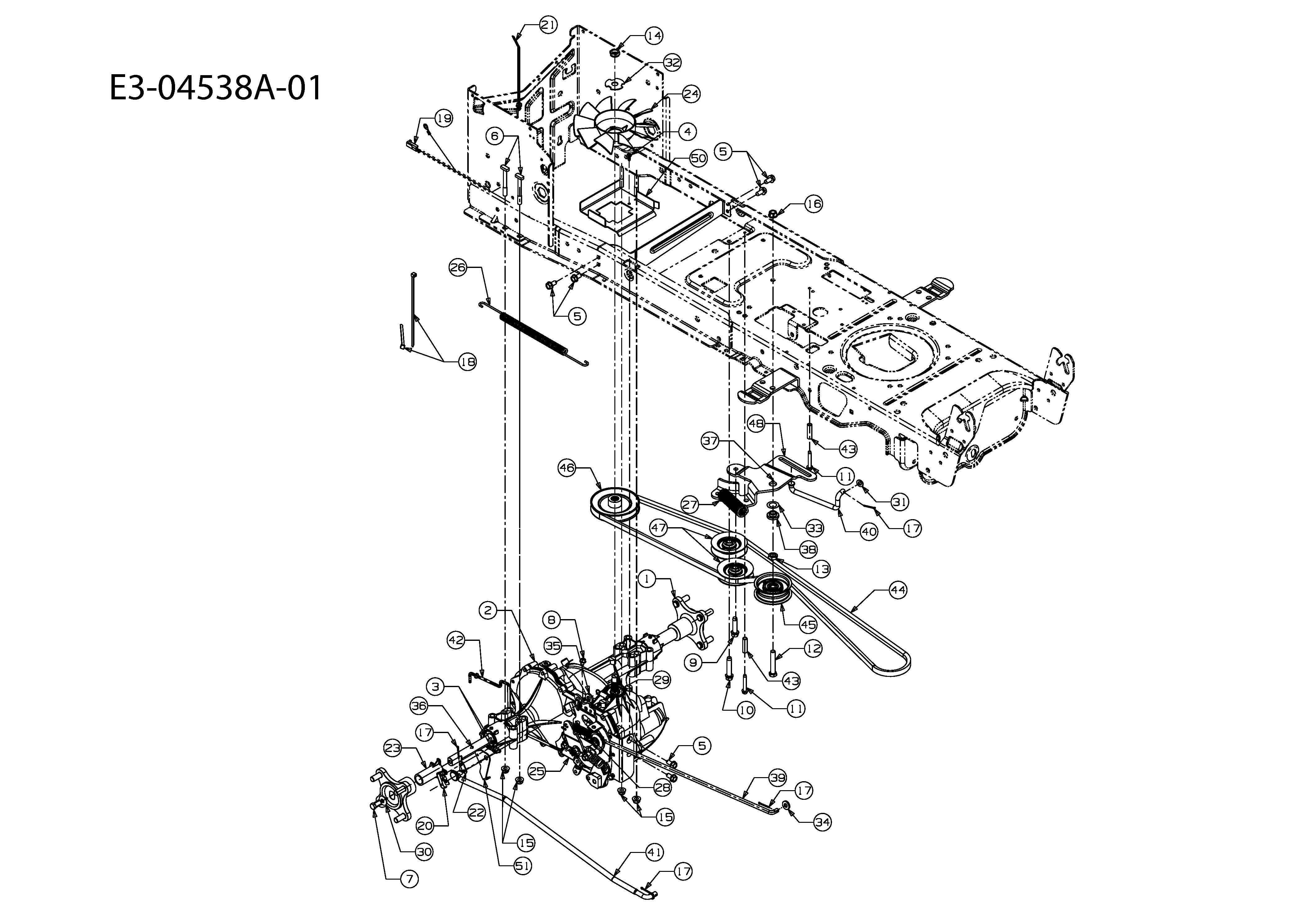

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD011520

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 618-04228 RADNABE KOMPL. £64.05 Add
002 618-04270B TRANS ASM-HYDRO 22" TIRE £1,732.76 Add
003 710-0227 SCR:AB:#8-18:0.500:HXINDWH £2.66 Add
004 710-1388 SCREW £2.74 Add
005 710-04484 SCR:TT:5/16-18:.750:HXINDWSH £4.43 Add
006 710-04823 PIN £18.04 Add
007 710-0627 HEX SCREW £2.81 Add
008 710-0653 HEX SCREW, 1/4-20 X 3/8" £3.61 Add
009 710-1007 SCREW HEX HD TAP £3.48 Add
010 710-1008 SCR:TTSEMS:3/8-16:1.875:HXLWSH N/A POA
011 710-1325 SCR:TT:1/4-20:1.625:HXINDWSH £3.51 Add
012 710-3011 HHCS:3/8-16:2.25:GR5:STD £6.93 Add
013 712-0240 NUT £3.07 Add
014 712-0346 HEX LOCK JAM NUT, 1/2-20 THD. N/A POA
015 712-04063 FLANGED NUT £3.54 Add
016 712-0431 NUT £2.71 Add
017 714-0111 COTTER PIN £2.71 Add
018 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
019 725-04791 WIRE HARNESS £30.89 Add
020 725-1644 SWITCH:SPRING:SHORT £5.88 Add
021 726-0154 TIE:CABLE:PUSH MOUNT 7.5 LG £5.69 Add
022 726-0320 INSULATING PLATE £2.55 Add
023 731-05300 SLEEVE .756 ID X 2.410 LG £18.79 Add
024 731-06098 FAN:HYDRO:LT £22.54 Add
025 732-0209 EXTENSION SPRING £7.19 Add
026 732-04606 SPR-EXTN:.500 DIA x 12.6 LG £28.53 Add
027 732-04624 SPRING EXTENSION £10.74 Add
028 732-0716D SPRING EXTENSION £12.05 Add
029 732-3118 SPR:EXTN:.375 OD x 1.44 LG £16.50 Add
030 736-0242 BELL WASHER £3.14 Add
031 736-0264 WASH:FLAT:.330 x.630x.0635 £2.87 Add
032 736-04263 WASHER:LOCK:TRANS HYDRO £6.16 Add
033 736-04337 WASH:SHIM:1.00 x.632 x .010 £16.36 Add
034 736-3008 WASH:FL:.344 X.750 X.120 £4.03 Add
035 736-3010 WASH:FL:.407X.812X.135:HD £2.41 Add
038 738-0372B COLLAR £4.74 Add
039 747-04139 ROD:BRAKE:HYDRO £36.99 Add
040 747-04957A ROD:TRANS:FOOTPEDAL BYPASS £17.06 Add
041 747-04979 ROD:CONT:HYDRO £44.37 Add
042 747-04991 ROD:HYDRO:BYPASS £16.03 Add
043 750-04456 SPACER £4.84 Add
044 754-04207 TRANSMISSION BELT £73.46 Add
045 756-04224 IDLER PULLEY £23.48 Add
046 756-04308 PULLEY:INPUT:4.13 DIA £50.01 Add
047 756-04325 PULLEY £29.72 Add
048 783-06027 BRACKET-IDLER PIVOT £35.88 Add
049 783-06133 BRKT:MNT:HYDRO £33.12 Add
050 783-06260 BRKT:SUPT:BELT DISENGAGE £35.76 Add
051 783-1019B BRKT:ACTUATOR:SW LT £19.51 Add
