MTD015165

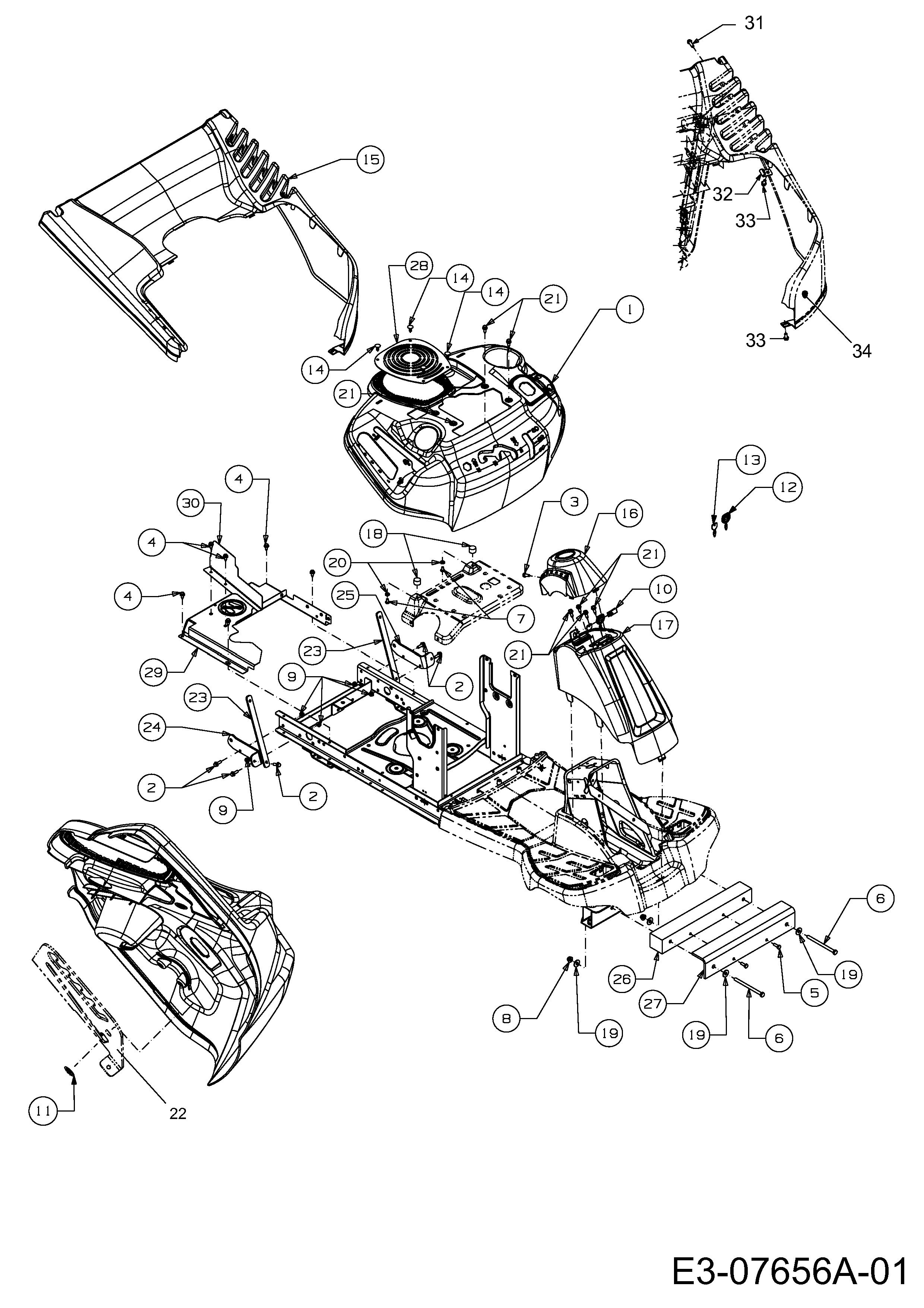

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	631-04658	FENDER ASM.	£108.64	Add
002	710-04666	HHFLG:1/4-20:.75:GR5	£7.18	Add
003	710-0924	TRUSS SCREW (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
004	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
005	710-3015	SCREW HEX CAP	£3.33	Add
006	710-3195	HHCS:5/16-18:4.50:GR5:STD	£17.18	Add
007	710-3209	HHCS:M6-1.0:10MM:GR8.8:STD	£4.52	Add
008	712-04063	FLANGED NUT	£4.20	Add
009	712-04064	NUT FLGLK 1/4 20 GRF NYLON	£6.63	Add
010	712-04092	NUT:U-TYPE	£23.60	Add
011	712-04342	NUT PUSH	£9.33	Add
012	725-05228	KEY:SW:UNIVERSAL WOLF	£9.33	Add
013	725-1745A	KEY SW UNIVERSAL	£8.09	Add
014	726-3046	MOUNTING CLIP:.250 DIA	£3.11	Add
015	731-08879	PANEL TOP	£95.76	Add
016	731-08882	COVER COLUMN	£40.04	Add
017	731-08883	CAP STEERING COLUMN	£38.88	Add
018	735-04121	BMPR:	£22.65	Add
019	736-0159	WASH .349 ID X .879 OD X .063	£3.59	Add
020	736-0329	L. WASHER	£3.26	Add
021	738-04184A	SCR:SHLDR:.368x.113:TT:1/4-20	£5.41	Add
022	783-07125	BRACKET DECK LIFT	£44.76	Add
023	783-07314	PLATE REINFORCE BAG	£28.82	Add
024	783-07319	PLATE BAG MOUNT RH	£38.72	Add
025	783-07376	PLATE BAG MOUNT LH	£28.98	Add
026	783-07379		N/A	POA
027	783-07380	BRACKET WEIGHT	£76.93	Add
028	783-07385	COVER DEBRIS SCREEN	£75.29	Add
029	783-07386	COVER REAR DRIVE TOP	£57.58	Add
030	783-07388	FACING:BRACKET	N/A	POA
031	710-05108	SCR:BOS:1/4 DIA:.750:HXINDWSH	£4.25	Add
032	16606-Z	BRKT:HOOK:RETAINER 16606	£5.80	Add
033	710-04187	SCH:HL:1/4-15:0.50:HXINDWSH	£4.22	Add
034	726-05008	CLIP:RTCHT	£4.39	Add
