MTD015149

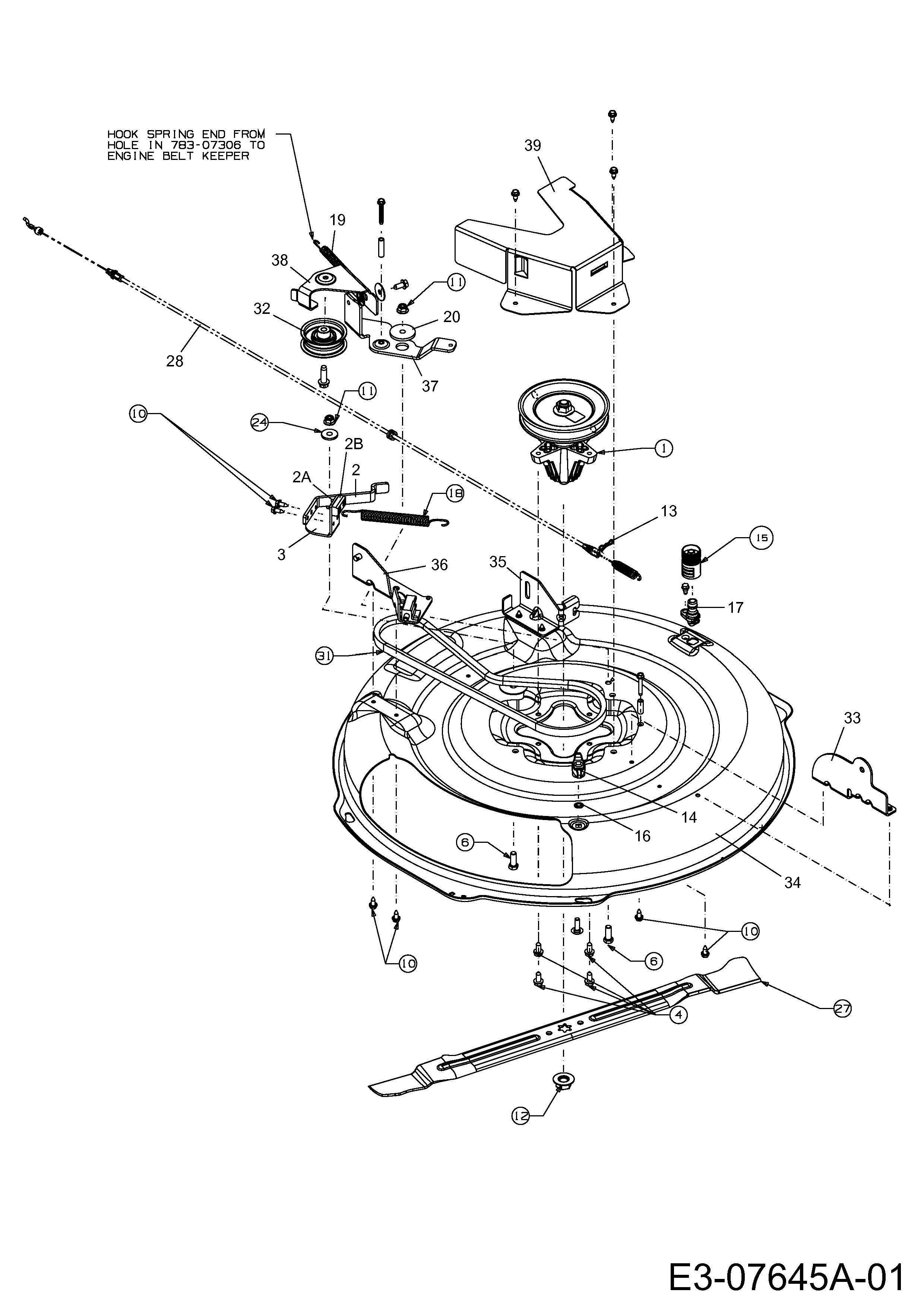

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04822A	SPDL ASM:PUL:5.695 DIA X .5625	£121.70	Add
002	783-07204	BRACKET BRAKE RELEASE	£28.32	Add
003	683-04734	BRACKET ASM. BRAKE PTO	£25.80	Add
004	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
005	710-04998	SCREW CARRIAGE	£9.12	Add
006	710-0514	HEX BOLT	£3.81	Add
007	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
008	710-1026	SCREW	£3.91	Add
009	710-1315	SCR TT 3/8-16 1.250 HXINDWSH S	£5.70	Add
010	710-1652	SCR:TT:1/4-20 x.625:HXINDWH	£4.25	Add
011	712-04065	NUT	£4.02	Add
012	712-05134	BLADE NUT	£3.81	Add
013	714-04040	PIN-COTTER	£4.38	Add
014	720-04122	WING KNOB	£11.09	Add
015	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
016	726-0201	SPEED NUT	£3.10	Add
017	731-07487	NOZ:DECK WSH	£16.29	Add
018	732-04948A	SPRING-BRAKE TENSION	£43.19	Add
019	732-04967	SPRING-BRAKE TENSION	£27.65	Add
020	736-0289	Washer	£5.50	Add
021	736-0362	WASH-FLAT:.330 x 1.25 x.06:HD	£4.66	Add
022	736-0518	WASH:THRST:.445 x 1.920 x.060	£6.50	Add
024	738-0347	SPACER	£4.16	Add
025	738-04162C	SPACER	£5.00	Add
026	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
027	742-04058	BLADE 30 INCHES	£64.49	Add
028	746-04610	CABLE BLADE CONTROL	£39.66	Add
029	750-04456	SPACER	£5.75	Add
02A	728-0180	RIV:POP: .187 DIA:#68 728-0173	£7.06	Add
02B	761-04017	PAD:BRAKE:SPINDLE 38 & 42 MAN	£16.03	Add
030	750-0566A	SPACER	£7.75	Add
031	754-04318	BELT V TYPE	£26.99	Add
032	756-04224	IDLER PULLEY	£28.15	Add
033	783-07004	BRACKET DECK FRONT	£26.87	Add
034	783-07146A-S	DECK 30"	£268.92	Add
035	783-07184637	BRACKET DECK REAR LH	£55.05	Add
036	683-04782A-S	BRACKET DECK REAR RH	£50.79	Add
037	783-07304	BRACKET IDLER LOWER	£60.70	Add
038	783-07306	BRACKET IDLER UPPER	£47.91	Add
039	783-07342637	COVER BELT	£88.70	Add
