MTD008966

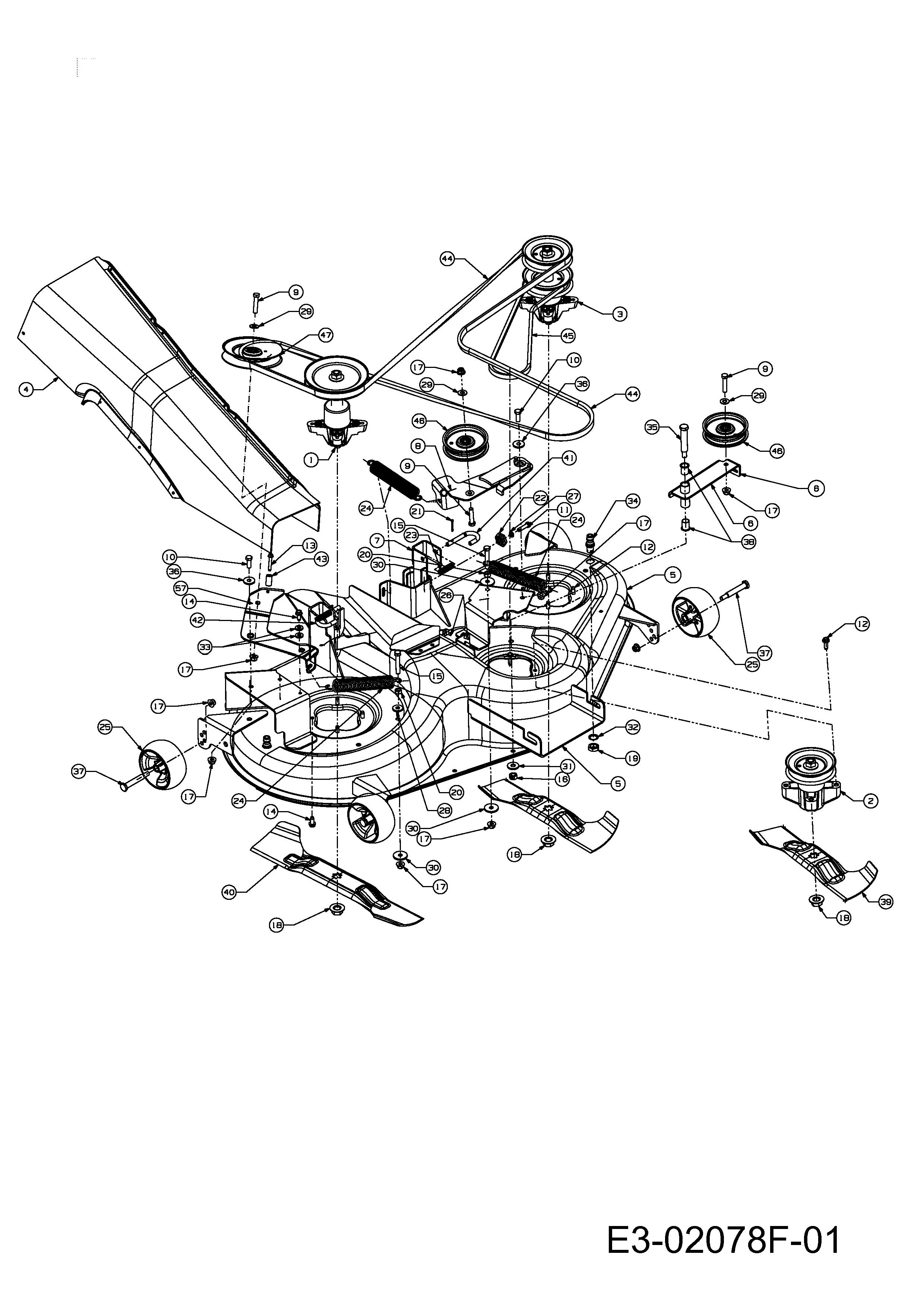

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	918-04160B	SPDL ASM:PUL:6.482 x .5625 DIA	£127.63	Add
002	918-04161B	SPINDLE ASSY	£103.25	Add
003	918-04162D	SPINDLE ASM	£125.87	Add
004	631-04099A	CHUT ASM:RR DIS:122cm DECK	N/A	POA
005	683-04110C	DECK ASM:122 CM	N/A	POA
006	683-04136A	BRKT ASM:IDLR:FLAT SM 122 CM	N/A	POA
007	683-04142A	BRKT ASM:DECK:HNGR ADJ 122cm	£24.12	Add
008	683-04160A	BRKT ASM:IDLR:FLAT 122cm	N/A	POA
009	710-0347	HEX SCR	£3.72	Add
010	710-0514	HEX BOLT	£3.81	Add
011	710-0528	SCREW (DNR)	£3.55	Add
012	710-0602	SCREW:TT:5/16-18:1.00:HXINDWSH	£5.64	Add
013	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
014	710-1260A	SCREW	£4.00	Add
015	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
016	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
017	712-04065	NUT	£4.02	Add
018	712-05134	BLADE NUT	£3.81	Add
019	712-0641	NUT	£6.47	Add
020	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
021	714-0115	COTTER PIN	£3.42	Add
022	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
023	732-0306A	SPACER	£5.28	Add
024	732-04099	SPRING	£12.82	Add
025	734-04155	WHEEL:DECK	£16.47	Add
026	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
027	736-0119	LOCK WASHER 5/16	£3.33	Add
028	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
029	736-0300	WASHER	£2.81	Add
030	736-0320	WASH:FLAT:.380 x.1.380 x.125	£4.70	Add
031	736-04097A	WASHER	£3.33	Add
032	736-0760	WASHER	£4.01	Add
033	736-3008	WASH:FL:.344 X.750 X.120	£3.49	Add
034	737-04003D	NOZ:DECK:WATER	£19.14	Add
035	738-04127	SCR:SHLDR:.65x2.64:7/16-14	£9.51	Add
036	738-04137	SPCR:SHLDR:.6250 DIA X .190	£5.27	Add
037	738-3056	SHOULDER BOLT	£12.94	Add
038	741-0591	FLANGE BEARING	£3.44	Add
039	742-04082	BLADE L. H.	£38.23	Add
040	742-0670A	BLADE	£60.48	Add
041	747-04116A	ROD:HNDL:DECK REL .375 DIA 747-04116	£26.94	Add
042	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
043	750-04182	SPACER	£4.38	Add
044	754-04052	BELT	£119.12	Add
045	754-04053	BELT:V TYP:5L x 44 LG KEVL	£54.98	Add
046	756-04049A	IDLER	£47.10	Add
047	756-04050	IDLER PULLEY	£38.38	Add
048	783-04495B	BRKT:IDLR V-PUL 122cm	N/A	POA
