MTD015844

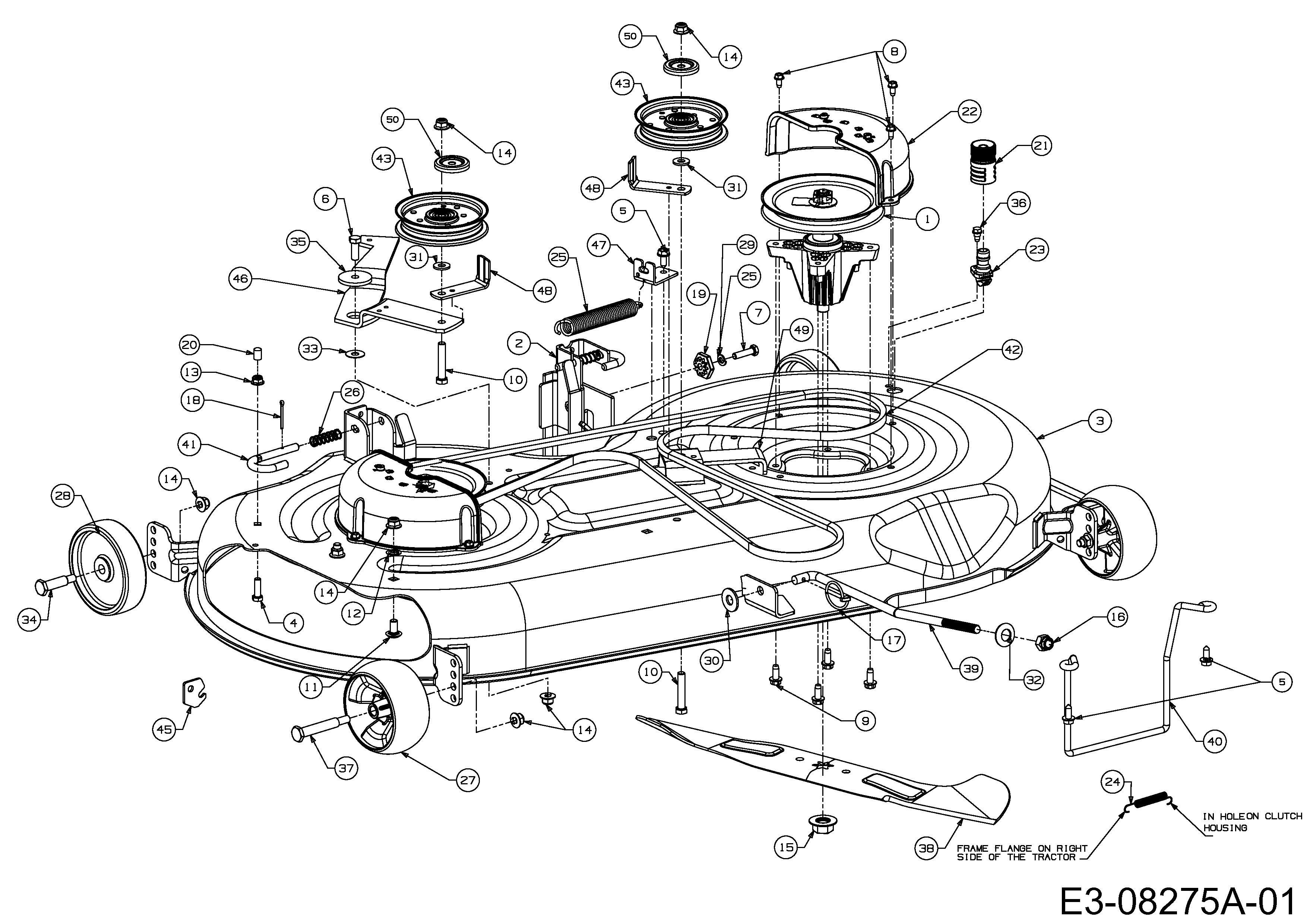

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04865A	SPINDLE ASSY	£118.08	Add
002	683-0254B	BRKT:ASM:DECK:HNGR LH LT (OBSOLETE)	N/A
003	683-04468B		N/A	POA
004	710-0376	SCREW HEX CAP 5/16	£9.02	Add
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-0514	HEX BOLT	£3.81	Add
007	710-0528	SCREW (DNR)	£3.55	Add
008	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
009	710-1260A	SCREW	£4.00	Add
010	710-3144	SCREW	£3.28	Add
011	710-3178	BOLT SHORT NECK CARR	£11.46	Add
012	712-0229	NUT PUSH	£5.20	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04065	NUT	£4.02	Add
015	712-05134	BLADE NUT	£3.81	Add
016	712-04243	NUT	£5.00	Add
017	714-0220A	PIN:LYNCH:.1875	£7.99	Add
018	714-0470	COTTER PIN	£5.07	Add
019	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
020	720-05010	CAP VINYL	£4.62	Add
021	721-04041	ADAPER:WATER NOZZLE	£16.76	Add
022	731-06496	COVER DECK BELT 46"	£28.82	Add
023	731-07487	NOZ:DECK WSH	£16.29	Add
024	732-0320	SPRING, EXTENSION, .38 OD X 3.25 LG	£11.79	Add
025	732-0459C	EXTENSION SPRING	£18.91	Add
026	732-04652	SPR:COMP:.535 OD x 1.751 LG	£8.11	Add
027	734-04155	WHEEL:DECK	£16.47	Add
028	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0179	WASHER-FL	£14.34	Add
031	736-0300	WASHER	£2.81	Add
032	736-0317	BELLE WASHER	£8.58	Add
033	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
034	738-0373	AXLE BOLT	£6.84	Add
035	738-04162C	SPACER	£5.00	Add
036	738-04278	SCR:SHLDR:1/4-20:0.50:HXINDWSH	£3.49	Add
037	738-3056	SHOULDER BOLT	£12.94	Add
038	742-04244A	BLADE	£46.78	Add
039	747-04944B	ROD:LIFT:DECK:SMALL	£37.79	Add
040	747-05171A	BELT KEEPER ROD	£35.76	Add
041	747-1116	QUICK RELEASE PINS RH LONG	£14.71	Add
042	754-04219	V-BELT	£113.84	Add
043	753-08171	KIT IDLER PULLEY	£37.57	Add
044	771-11725A	TAG:DNGR:RT-99 CHUTE BLNGL	N/A	POA
045	783-05219	BRKT:STOP:CHUTE 50"/54"	£14.15	Add
046	783-05946	BRACKET-IDLER PIVOT	£23.64	Add
047	783-06243		N/A	POA
048	783-06368A		N/A	POA
049	783-06643		N/A	POA
050	783-07236	PULLEY CAP	£10.42	Add
