Drive System

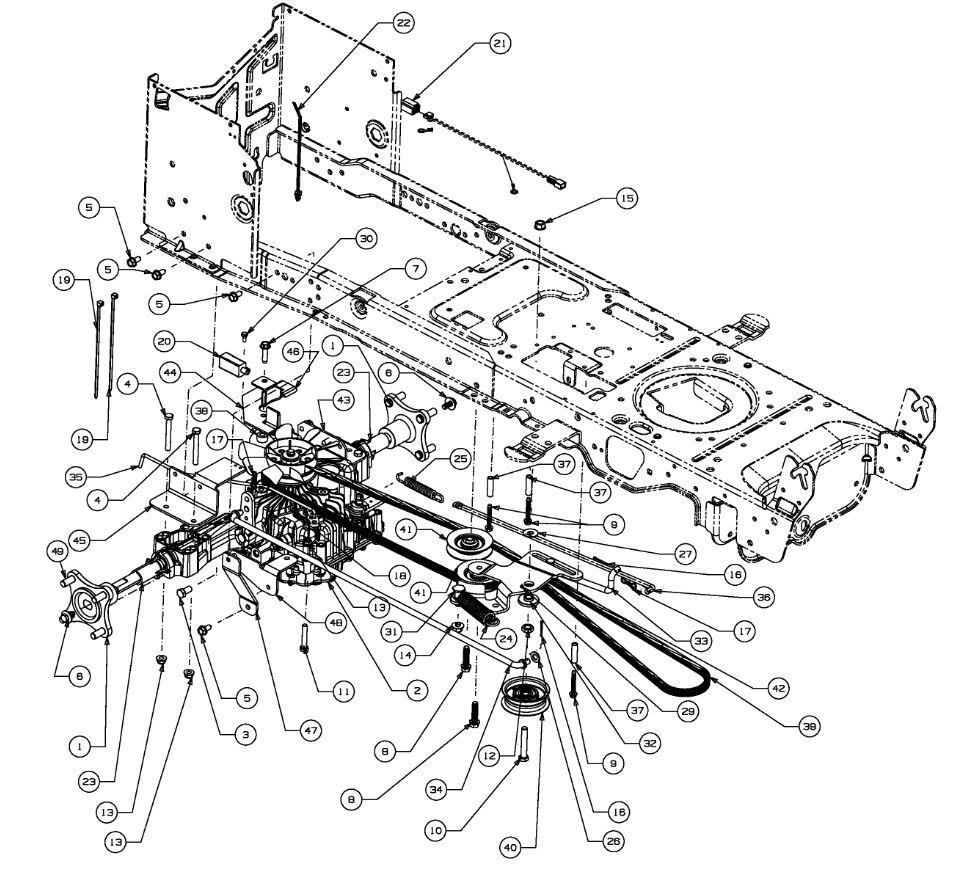

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	618-04228	RADNABE KOMPL.	£72.23	Add
002	618-05010	.TRANS ASM:HYDRO:K46:LT FINISH:	N/A	POA
003	710-0216	HHCS:3/8-16:.75:GR5:STD	£3.59	Add
004	710-0378	HHCS:5/16-18:2.50:GR5:STD	£3.80	Add
005	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
006	710-05339	SCR:SEMS:5/16-24:.750:GR5	£5.66	Add
007	710-0817	SCR:TT:5/16-18:1.250:HXINDWSH	£4.52	Add
008	710-1007	SCREW HEX HD TAP	£4.14	Add
009	710-1026	SCREW	£3.91	Add
010	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
011	710-3180	SCREW HEX CAP	£5.00	Add
012	712-0240	NUT	£3.62	Add
013	712-04063	FLANGED NUT	£4.20	Add
014	712-04065	NUT	£4.02	Add
015	712-0431	NUT	£3.20	Add
016	714-0111	COTTER PIN	£3.20	Add
017	714-04040	PIN-COTTER	£4.38	Add
018	714-3010	PIN-CLEVIS	£2.98	Add
019	725-0157	NO LONGER AVAILABLE	N/A	POA
020	725-04363	SWITCH	£18.57	Add
021	725-05335	.HARN:REV JMPR:K46 FINISH:	£17.87	Add
022	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
023	731-08237	SLEV:.765 ID x 2.11 LONG	£8.43	Add
024	732-04792	SPR:EXTN:1.00 OD x 4.75 x .125	£12.84	Add
025	732-0716D	SPRING EXTENSION	£14.42	Add
026	736-0185	FLAT WASHER (RED)	£3.59	Add
027	736-0344	WASHER:FLAT:.385x1.000x.030	£7.50	Add
030	738-04237A	SCR:SHLDR:T:#10-32:.500	£3.44	Add
031	738-0430	SHLD-SCR: .50 x .685:3/8-16	£8.01	Add
032	738-04420	SPCR:SHLDR:1.375x .380x .183	£4.62	Add
033	747-04957A	ROD:TRANS:FOOTPEDAL BYPASS	£12.14	Add
034	747-05447	.ROD:CONT:NX9 TUFF-TORQ FINISH: MTD SPEC 701-01000	£21.20	Add
035	747-05448	.ROD:DSNGA:TRANS:NX9 TT FINISH:MTD SPEC 701-01000	£14.56	Add
036	747-05452	.ROD:BRAKE:NX9 TUFF-TORQ FINISH:SIEHE ZG.	£36.02	Add
037	750-04456	SPACER	£5.75	Add
038	750-05512	.SPCR:.330 X .715 X .430 FINISH:MTD SPEC 701-01000	£5.50	Add
039	754-04297	BELT V TYPE	£72.75	Add
040	756-04224	IDLER PULLEY	£28.15	Add
041	756-04325	PULLEY	£35.65	Add
042	783-06027B	BRKT:IDLR:CENTER DBL	£28.82	Add
043	783-06849	.	N/A	POA
044	783-07260	.	N/A	POA
045	783-07295	.	N/A	POA
046	783-07347	.	N/A	POA
047	783-07349	.	N/A	POA
048	783-07350	.	N/A	POA
049	710-0852	BOLT	£5.63	Add
