MTD017911

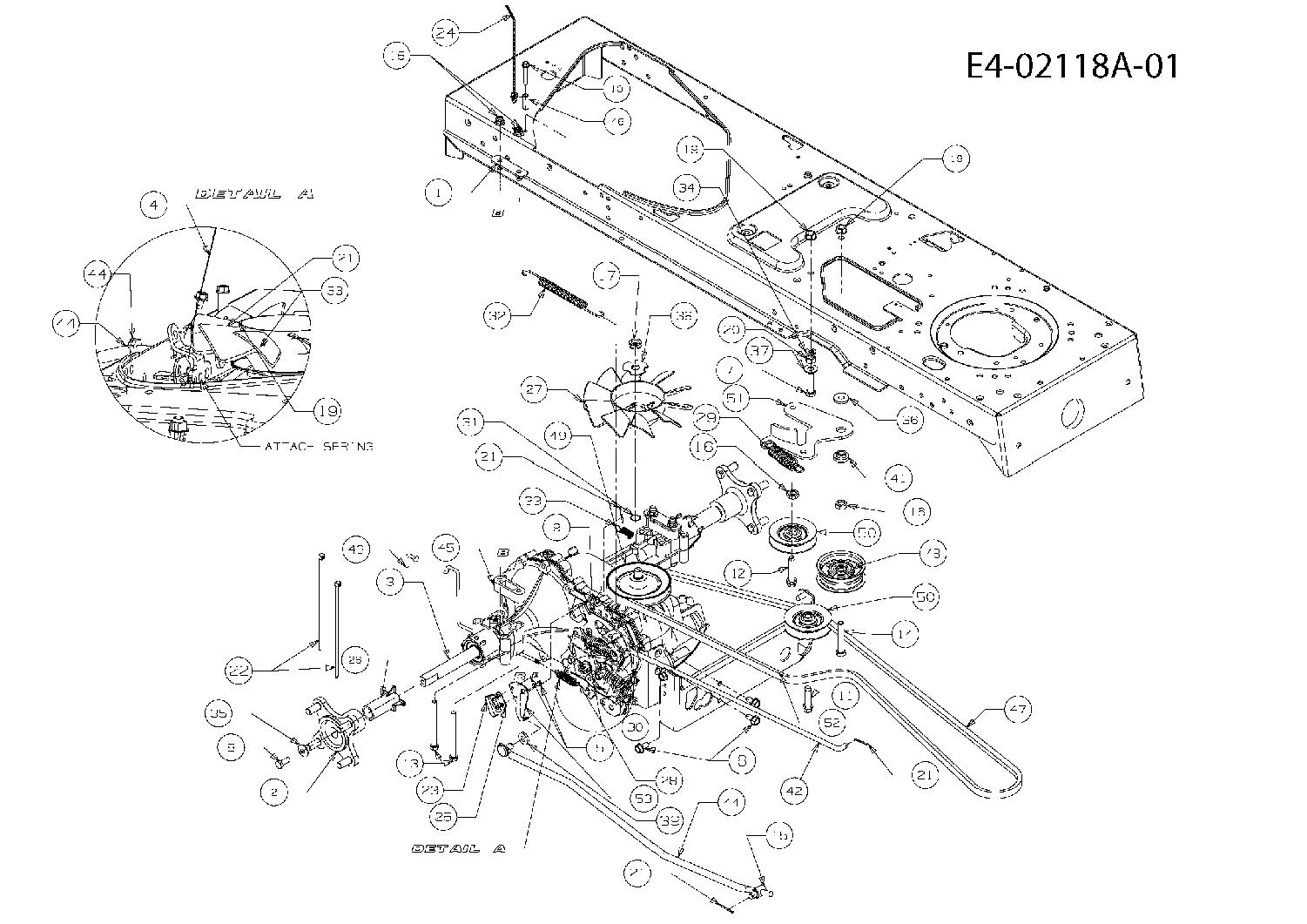

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	17840	TRANSAXLE BRACKET REINFORCE	£14.44	Add
002	618-04228	RADNABE KOMPL.	£72.23	Add
003	618-04269A	TRANS ASM:HYDRO	£955.50	Add
004	629-04124	HARNESS ASM	N/A	POA
005	710-0227	SCR:AB:#8-18:0.500:HXINDWH	£3.07	Add
006	710-04484	SCR:TT:5/16-18:.750:HXINDWSH	£5.27	Add
007	710-0520	SCREW HEX CAP 3/8 (RED)	£3.51	Add
008	710-0627	HEX SCREW	£3.32	Add
009	710-0653	HEX SCREW, 1/4-20 X 3/8"	£4.22	Add
010	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
011	710-1007	SCREW HEX HD TAP	£4.14	Add
012	710-1008	NO LONGER AVAILABLE	N/A	POA
013	710-1266	SCREW HHCS:5/16-18:3.5:GR5:STD	£4.70	Add
014	710-3011	HHCS:3/8-16:2.25:GR5:STD	£7.05	Add
015	711-0832	FERRULE:3/8-24x.375 DIA:HT TRT	£13.94	Add
016	712-0240	NUT	£3.62	Add
017	712-0346	NO LONGER AVAILABLE	N/A	POA
018	712-04063	FLANGED NUT	£4.20	Add
019	712-0431	NUT	£3.20	Add
020	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
021	714-0111	COTTER PIN	£3.20	Add
022	725-0157	NO LONGER AVAILABLE	N/A	POA
023	725-1644	SWITCH:SPRING:SHORT	£6.24	Add
024	726-0154	TIE:CABLE:PUSH MOUNT 7.5 LG	£4.80	Add
025	726-0320	INSULATING PLATE	£2.97	Add
026	731-05300	SLEEVE .756 ID X 2.410 LG	£13.36	Add
027	731-06098	FAN:HYDRO:LT	£21.68	Add
028	732-0209	EXTENSION SPRING	£8.58	Add
029	732-04323B	SSPR:EXTN:.770 DIA x 3.720 LG	£17.58	Add
030	732-0716D	SPRING EXTENSION	£14.42	Add
031	732-0729	CIRCLIP	£2.98	Add
032	732-0994	SPR:EXTN:.500 DIA x 7.0 LG	£14.30	Add
033	732-3118	SPR:EXTN:.375 OD x 1.44 LG	£13.84	Add
034	736-0169	L. WASHER	£2.89	Add
035	736-0242	BELL WASHER	£3.72	Add
036	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
037	736-0300	WASHER	£2.81	Add
038	736-04263	WASHER:LOCK:TRANS HYDRO	£5.62	Add
039	736-3010	WASH:FL:.407X.812X.135:HD	£2.85	Add
041	738-0372B	COLLAR	£5.64	Add
042	747-04139	ROD:BRAKE:HYDRO	£40.83	Add
043	747-1149	ROD-HYDRO BYPASS	£28.16	Add
044	747-1151	ROD-HYDRO CONTROL	£50.37	Add
045	748-0334	TRANSAXLE SPACER .68	£6.32	Add
046	750-0566A	SPACER	£7.75	Add
047	754-04165	V-Belt	£107.34	Add
048	756-04224	IDLER PULLEY	£28.15	Add
049	756-04308	PULLEY:INPUT:4.13 DIA	£43.19	Add
050	756-04325	PULLEY	£35.65	Add
051	783-04442	BRKT:IDLR:CENTER DBL	£39.65	Add
052	783-0810B	BRACKET-GAS TANK SUP	N/A	POA
053	783-1019B	BRKT:ACTUATOR:SW LT	£21.46	Add
