MTD009327

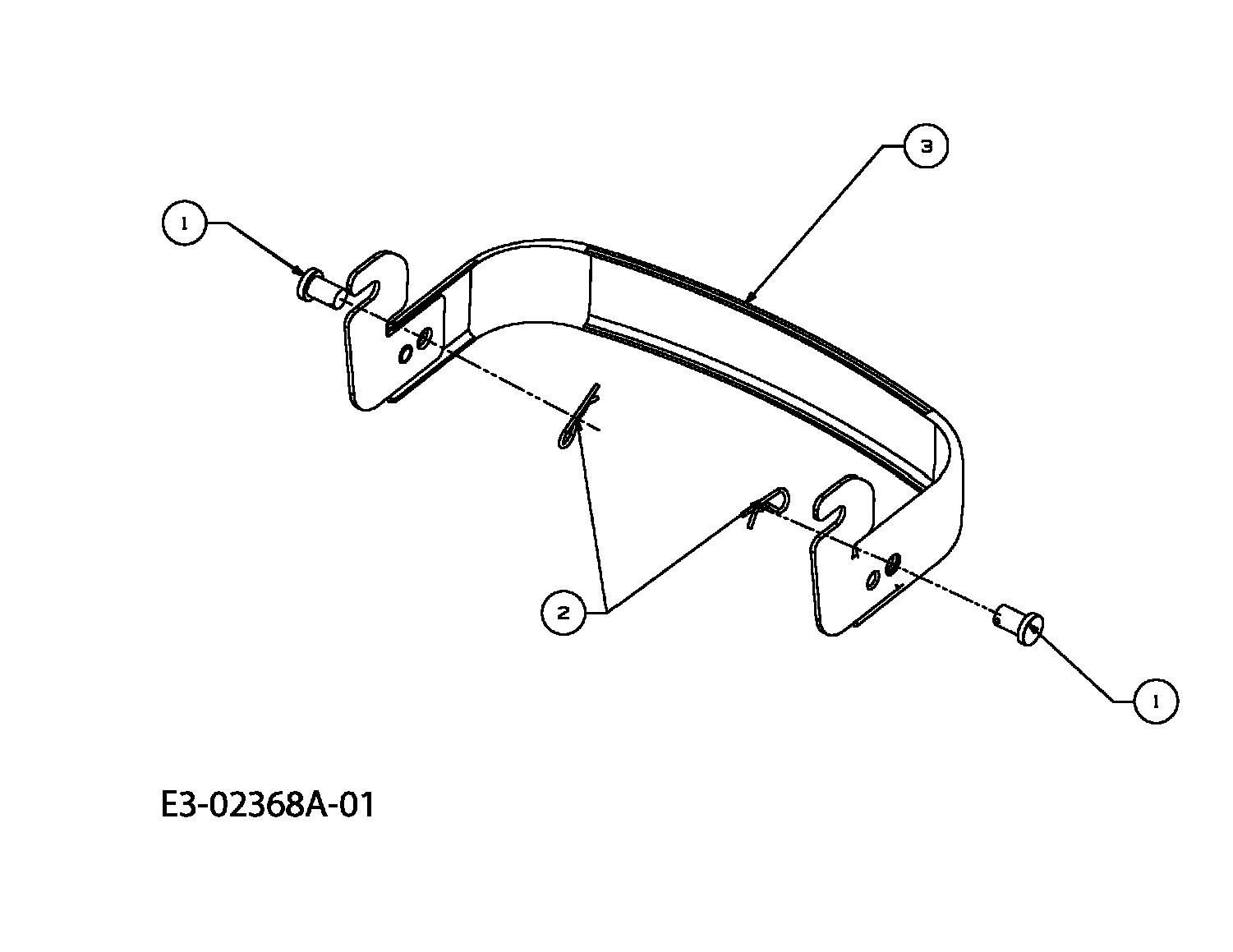

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009327

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 711-0332 CLEVIS PIN (RED) £13.13 Add
002 714-0145 R CLIP £2.78 Add
003 683-0612 BMPR ASM:CUB 1500 N/A POA
