MTD009299

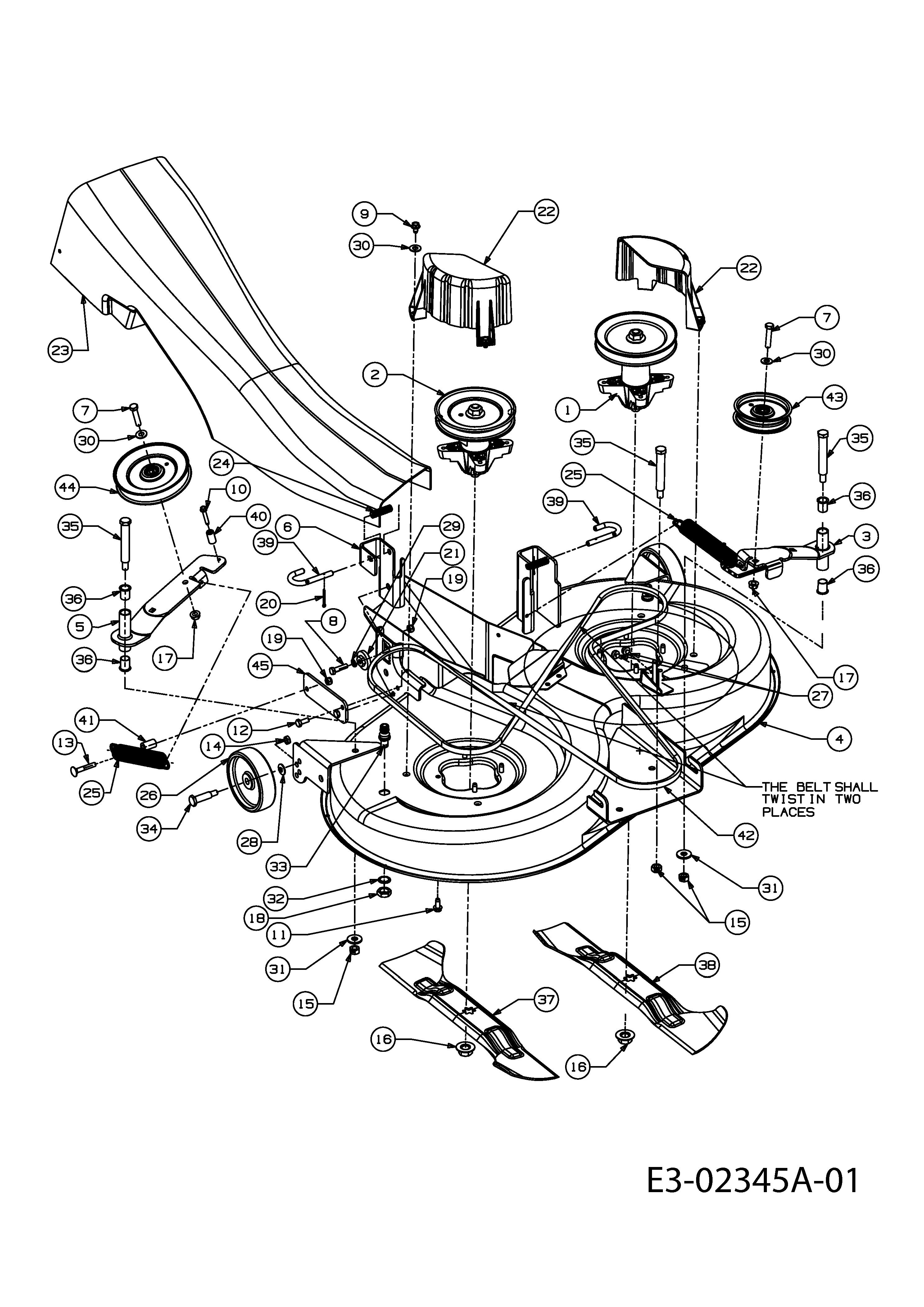

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
002	618-0624B	SPINDLE ASSY 6.3" DIA PULLEY	£177.99	Add
003	683-04058E-S	KIT IDLER ARM WITH BELT GUIDE	£79.39	Add
004	683-04059c-s	DECK PAN BLACK	£963.90	Add
005	683-04061637	BRACKET IDLER ARM BLACK	£28.32	Add
006	683-0596A637	BRKT ASM:DECK:HNGR ADJ 92/105 683-0596	£28.13	Add
007	710-0347	HEX SCR	£3.72	Add
008	710-0528	SCREW (DNR)	£3.55	Add
009	710-0607	SELF TAP SCREW	£4.71	Add
010	710-0778	HEX WASHER HEAD SCREW	£3.20	Add
011	710-1260A	SCREW	£4.00	Add
012	710-1681	HEX BOLT M8 X 20 DIN 933 (RED)	£3.24	Add
013	710-1719	BOLT	£4.89	Add
014	712-0181	HEX JAM L NUT	£3.69	Add
015	712-0290	NUT 7/16 CAD P/T LOCK TYPE 5	£2.78	Add
016	712-05134	BLADE NUT	£3.81	Add
017	712-0431	NUT	£3.20	Add
018	712-0641	NUT	£6.47	Add
019	712-0692	HEX NUT	£3.10	Add
020	714-0470	COTTER PIN	£5.07	Add
021	717-04074	GEAR DECK ADJUSTMENT	£11.11	Add
022	731-2538	L.H. DECK BELT GUARD	£38.71	Add
023	731-2539B	REAR CHUTE SHORT VERSION 731-2539A	£99.06	Add
024	732-0306A	SPACER	£5.28	Add
025	732-04099	SPRING	£12.82	Add
026	734-0973	WHEEL DECK 5in. DIA	£11.16	Add
027	735-0271A	UTV TAILGATE GROMMET	£9.24	Add
028	736-0105	BELL WASHER	£3.33	Add
029	736-0119	LOCK WASHER 5/16	£3.33	Add
030	736-0300	WASHER	£2.81	Add
031	736-04097A	WASHER	£3.33	Add
032	736-0760	WASHER	£4.01	Add
033	737-04003D	NOZ:DECK:WATER	£19.14	Add
034	738-0373	AXLE BOLT	£6.84	Add
035	738-0476	SHOULDER SCREW	£4.70	Add
036	741-0591	FLANGE BEARING	£3.44	Add
037	742-04080	BLADE R/H X DECK	£45.82	Add
038	742-04081	BLADE L/H X DECK	£44.79	Add
039	747-04116A	ROD:HNDL:DECK REL .375 DIA 747-04116	£26.94	Add
040	750-04182	SPACER	£4.38	Add
041	750-04195	SPACER Ò16 x Ò8 x 27LG DIN2391	£5.70	Add
042	754-04069	BELT N DECK	£122.85	Add
043	756-04049A	IDLER	£47.10	Add
044	756-04050	IDLER PULLEY	£38.38	Add
045	783-04255	BRKT:DECK:SPR 500 SERIES	N/A	POA
