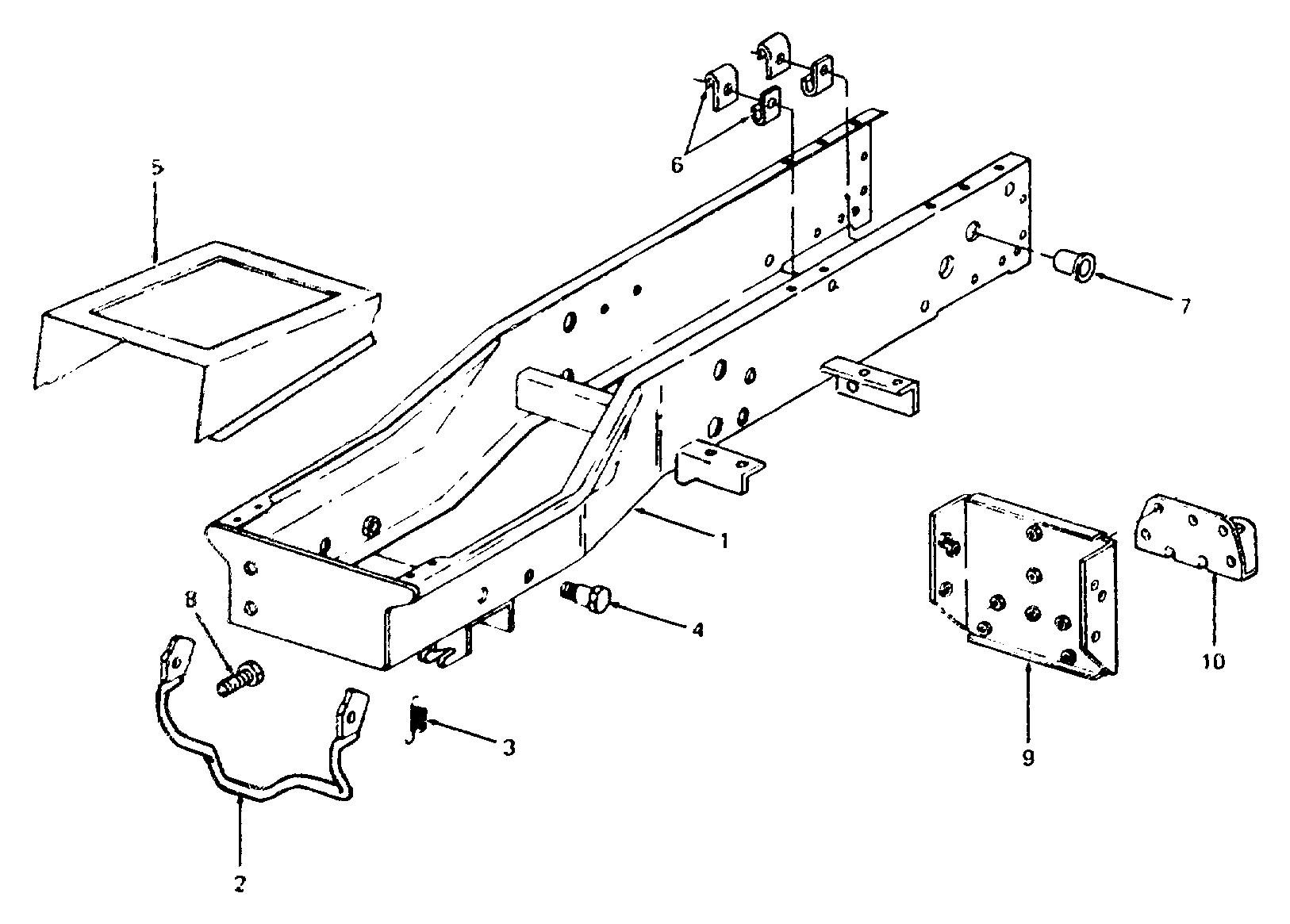

Parts list
Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
710-3000
|
SCREW, HEX CAP 3/8-16X3/4 GR5
|
£3.59
|
Add
|
|
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
|
736-0169
|
L. WASHER
|
£2.89
|
Add
|
|
|
710-3000
|
SCREW, HEX CAP 3/8-16X3/4 GR5
|
£3.59
|
Add
|
|
|
712-3029
|
NUT
|
£3.20
|
Add
|
|
|
712-3004A
|
HEX FLANGE NUT
|
£2.97
|
Add
|
|
|
710-3039
|
BOLT-HEX 5/16-18 X .50 LG
|
£2.56
|
Add
|
|
|
710-3007
|
SCR:TT:#12-24:0.375 HXINDWSH
|
£3.59
|
Add
|
|
|
779-3531
|
GRAPHIC, CAUTION
|
£21.22
|
Add
|
|
|
736-0272
|
WASHER:FL:.510 X 1.000 X .060
|
£3.16
|
Add
|
|
|
736-3003
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
|
714-0507
|
COTTER PIN 3/32 DIA
|
£3.13
|
Add
|
|
|
711-3010
|
PIN, CLEVIS, 3/8 DIA X 1.0 LG
|
£3.48
|
Add
|
|
|
779-3334
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
|
711-3009
|
HUB, LIFT HANDLE STOP
|
£24.18
|
Add
|
|
|
711-3005
|
BUSHING, FRONT AXLE PIVOT PIN
|
£8.17
|
Add
|
|
001
|
703-1929
|
FRAME ASSY
|
£969.62
|
Add
|
|
002
|
703-1726
|
BRACKET
|
£32.13
|
Add
|
|
003
|
732-3002
|
SPR:EXT: .51 OD X 2.12 LG
|
£10.32
|
Add
|
|
004
|
738-3001
|
BOLT, SHOULDER
|
£12.83
|
Add
|
|
005
|
759-3531
|
COVER, FRAME W/GRAPHIC
|
£71.94
|
Add
|
|
006
|
726-3008
|
BRACKET
|
£2.93
|
Add
|
|
007
|
723-3042
|
bush
|
£2.79
|
Add
|
|
008
|
710-3182
|
SHLT.-SCHRAUBE 1/2-20X1"
|
£3.69
|
Add
|
|
009
|
703-1943
|
PLATE ASSY, HITCH
|
£142.15
|
Add
|
|
010
|
703-0904
|
HITCH ASSY
|
£28.26
|
Add
|
