FG003_6800

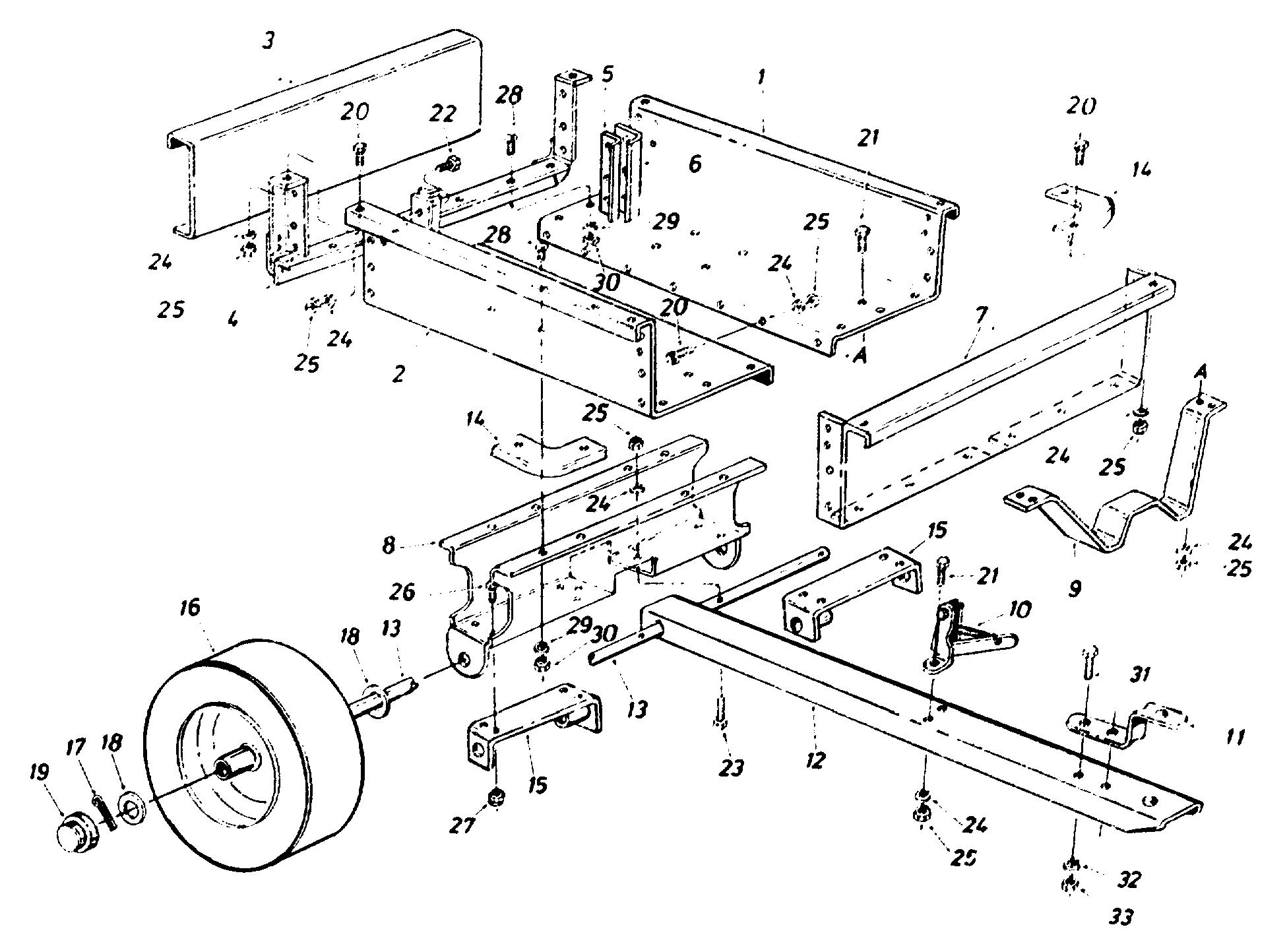

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG003_6800

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 23513 BUSHING-PLUNGER £8.88 Add
001 23515-AF CART BODY -- L.H. £183.51 Add
001 23517-AF CART BODY -- L.H. £194.25 Add
002 23514-AF Cart body - 092.34.063 £128.13 Add
002 23516-AF CART BODY -- R.H. £179.20 Add
002 23518-AF CART BODY -- R.H. £194.25 Add
003 23502-AF Tailgate 23502 £107.96 Add
003 23503-AF TAILGATE £74.21 Add
003 23504-AF Tailgate 23504 £127.46 Add
004 62458-AF Tailgate Reinforcement Bracket 62458 £98.48 Add
004 62457-AF Tailgate Reinforcement Bracket 62457 £103.07 Add
005 23486-AF OUTER BRACKET 092.34.067 £21.40 Add
005 23548-AF Tailgate Guide 23548 £11.15 Add
006 23547-AF INNER BRACKET 092.34.066 £7.11 Add
006 23548-AF Tailgate Guide 23548 £11.15 Add
007 23492-AF Front Panel 23492 £96.74 Add
007 23493-AF FRONT PANEL £72.11 Add
007 23490-AF Front Panel 23490 £172.00 Add
008 23506-AF SUPPORT-AXLE-FR 23506 £131.29 Add
008 23507-AF Wheel Support 23507 £240.05 Add
008 23508 WHEEL SUPPORT N/A POA
008 23487-AF Wheel Support 23487 £240.05 Add
009 23095-AF Brace fender 092.34.070 £50.57 Add
009 23297-AF LATCH STAND BRACKET £56.74 Add
009 23363-AF LATCH STAND BRACKET £66.44 Add
010 62455-AF ASS`Y, LATCH LOCK AF-62455 £53.63 Add
011 23014-AF HITCH BRACKET £31.67 Add
012 23505 DRAW BAR TONGUE N/A POA
012 23482-AF DRAW BAR TONGUE £72.53 Add
012 23481-AF DRAW BAR TONGUE £64.49 Add
013 23026-AF Axle, 3/4" 23026 £104.98 Add
013 23299-AF WHEEL-AXLE 1" DIA. £125.11 Add
013 23358 WHEEL AXLE 1*quot; DIA. N/A POA
013 23488-AF Axle, Wheel 1" Dia. 23488 £125.17 Add
014 23484-AF Front Corner Cap 23484 £21.81 Add
015 62359-AF AXLE EXTENSION ASS'Y. £76.61 Add
016 43008-AF WHEEL 4.8 x 4 £60.36 Add
016 69599-AF WHEEL ASSY £257.23 Add
016 43649-AF WHEEL ASS'Y. COMP.-20 X 10-8 £279.15 Add
017 43010-AF COTTER PIN £3.49 Add
017 43093-AF COTTER PIN £3.11 Add
018 43009-AF WASHER1-5/8 INCH O D X 25/32 INCH ID £5.26 Add
018 43601-AF WASHER £8.99 Add
019 731-0484A HUB CAP £5.05 Add
020 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
020 43175-AF Hex Bolt, 1/4-20 x 1/2" * 43175 £4.15 Add
021 43866-AF Bolt, Hex 1/4-20 x 5/8" Lg. Gr. 5 43866 £3.48 Add
022 43012-AF BOLT £3.32 Add
023 43648-AF Bolt, Hex 1/4-20 x 1-1/2" Lg.* 43648 £4.58 Add
023 1509-69-AF HEX BOLT, 1/4-20 X 1-3/4" LG. £2.77 Add
024 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
024 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
025 HG-43178 NUT (RED) £10.69 Add
025 HG-43178 NUT (RED) £10.69 Add
026 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
027 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
028 43814-AF SLOTTED TRUSS HEADBOLT(5/16-18x3/4) £3.11 Add
029 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
030 43083-AF HEX NUT £3.32 Add
031 710-0514 HEX BOLT £3.81 Add
032 736-0169 L. WASHER £2.89 Add
033 43015 Hex nut, 3/8-16 * N/A POA
