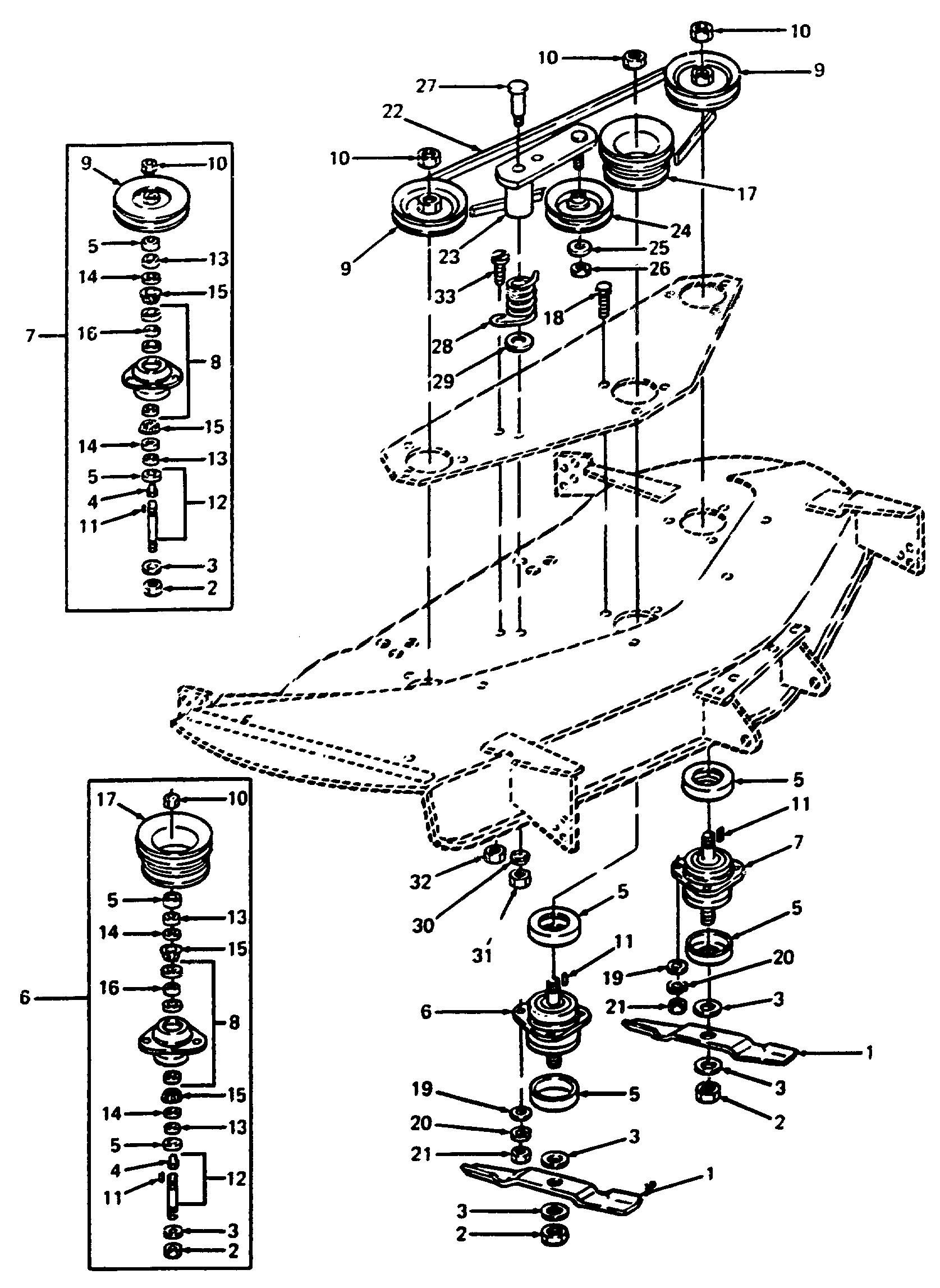

FG003_6300

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	759-3837	BLADE, MOWER, 17.2 LG 742-3003	£79.89	Add
001	759-3837	BLADE, MOWER, 17.2 LG 742-3003	£79.89	Add
002	712-3018	NUT	£15.39	Add
003	736-3014	WASHER	£10.72	Add
004	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
005	703-1387	CUP,SPINDLE	£27.37	Add
006	759-3367	SPINDLE SERVICE KIT - CENTER (INCLUDES MTG. HARDWARE)	£365.75	Add
007	759-3293	SPINDLE SERVICE KIT - OUTSIDE (INCLUDES MTG. HARDWARE)	£505.67	Add
008	759-3226	HOUSSING w/CUPS,SPINDLE	£121.99	Add
009	756-3008	PULLEY	£63.08	Add
010	712-3026	NO LONGER AVAILABLE	N/A	POA
011	714-0135	KEY-WOODRUFF NR.91,1/4X3/4"	£12.14	Add
012	759-3370	SHAFT, BLADE W/FITTING (FOR UNITS W/O LUBE FITTINGS ORDER SPINDLE SHAFT KIT 759-3370, INCLUDES OIL S	£93.47	Add
013	711-3171	SPACER	£17.52	Add
014	721-3018A	SEAL-SINGLE LIP OIL	£13.74	Add
015	741-04298	TAPER LK BUSHING 741-3028	£27.72	Add
016	741-3030	SPACER	£15.75	Add
017	756-3007	PULLEY, DOUBLE	£88.66	Add
018	710-0514	HEX BOLT	£3.81	Add
019	736-0258	WASHER:FLAT:.385 X 1.0 X.135	£3.47	Add
020	736-0169	L. WASHER	£2.89	Add
021	712-3017	NUT:JAM:3/8-16:GR5	£2.97	Add
022	954-3005	NO LONGER AVAILABLE	N/A	POA
023	703-0118	BRACKET ASSY-IDLER	N/A	POA
024	756-3005	PULLEY	£84.18	Add
025	736-0185	FLAT WASHER (RED)	£3.59	Add
026	712-3000	NUT:HEXLK:3/8-16 GR.B CTRLK	£3.20	Add
027	638-04012A	BOLT	£17.98	Add
028	732-3009P	NO LONGER AVAILABLE	N/A	POA
029	736-3015	WASH:FLAT: .469 x .875 x .105	£18.36	Add
030	736-0171	WASHER	£2.93	Add
031	712-3019	NUT	£14.44	Add
032	712-3020	NO LONGER AVAILABLE	N/A	POA
033	710-3024	SCREW, TRUSS HD, 3/8-16 X .75 LG	£3.34	Add
