FG003_5200

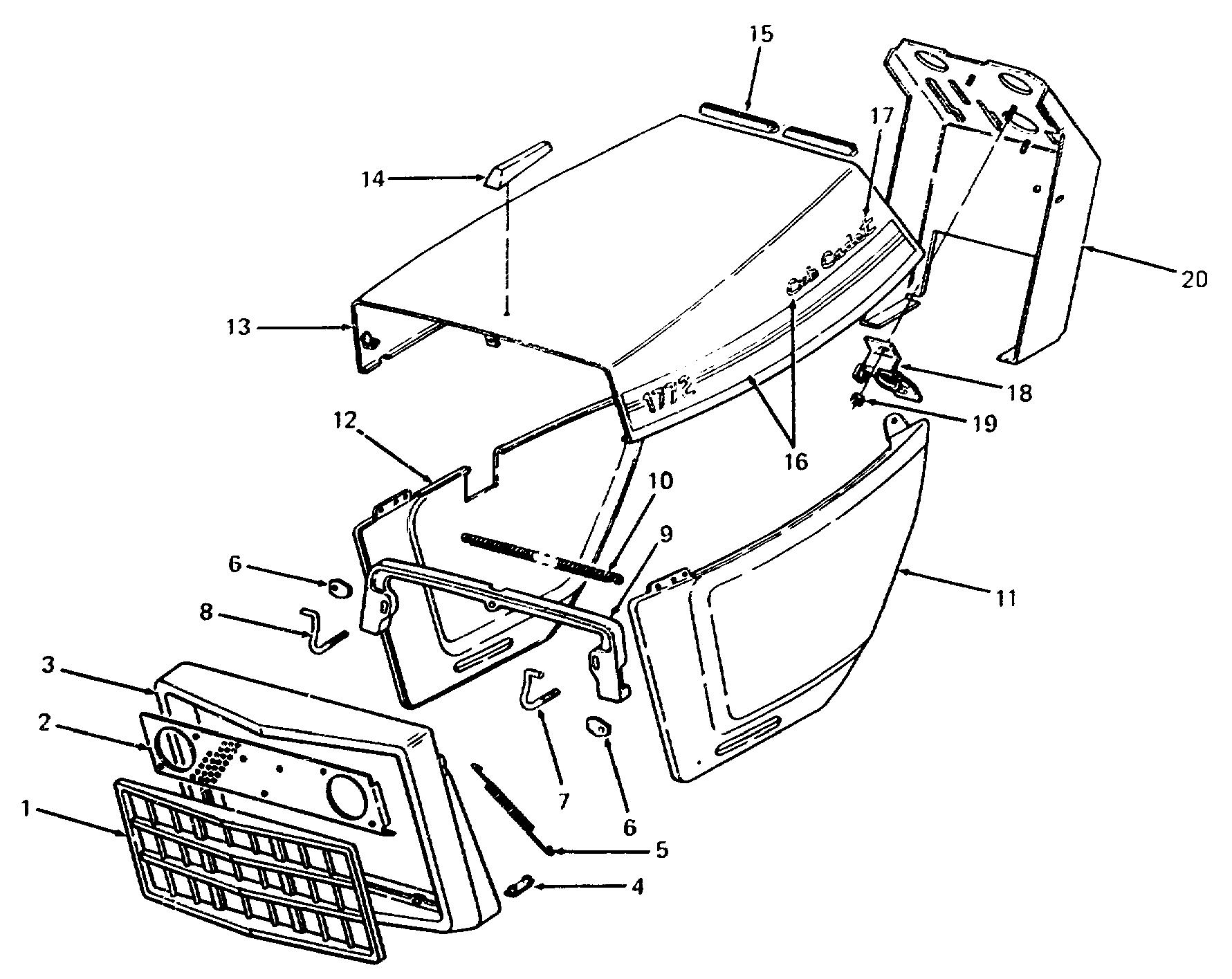

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG003_5200

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
726-3008 BRACKET £2.93 Add
710-3021 NO LONGER AVAILABLE N/A POA
736-0119 LOCK WASHER 5/16 £3.33 Add
710-3002 SCREW, HEX CAP, 5/16-18 X 1.0 LG GR5 £3.39 Add
710-3004 SCREW, HEX HD CUTTING, 5/16-18 X .75 LG GR5 £2.93 Add
736-0185 FLAT WASHER (RED) £3.59 Add
712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
736-0185 FLAT WASHER (RED) £3.59 Add
712-3008 NUT:JAM:3/8-16:GR5 £3.26 Add
712-3006 NUT £2.77 Add
710-0578 NO LONGER AVAILABLE N/A POA
736-0463 WASH:FLAT: .250 x .630 x .052 £3.31 Add
736-3006 WASH:LOCK:1/4:INTEXT £3.07 Add
736-0463 WASH:FLAT: .250 x .630 x .052 £3.31 Add
712-3044 NUT:WING:5/16-24 £3.76 Add
736-0463 WASH:FLAT: .250 x .630 x .052 £3.31 Add
712-3044 NUT:WING:5/16-24 £3.76 Add
710-3016 SCREW, PAN HD TAPP #8-18 X .25 LG £2.56 Add
710-0227 SCR:AB:#8-18:0.500:HXINDWH £3.07 Add
736-0142 WASHER:FLAT:.281 x.50 x.063 £3.59 Add
710-0111 NO LONGER AVAILABLE N/A POA
712-0324 HEX. INS L NUT £3.69 Add
736-0463 WASH:FLAT: .250 x .630 x .052 £3.31 Add
779-3496 LABEL, GENERAL INFORMATION & ADJUSTMENT N/A POA
779-3296 LABEL, BOOSTER BATTERY £8.17 Add
710-3008 HEX BOLT £3.03 Add
726-3009 CLIP, CABLE £5.80 Add
001 719-3003 INSERT-GRILLE £162.86 Add
002 703-0165 GRILLE ASSY £43.66 Add
003 719-3002 GRILLE £490.16 Add
004 703-0008 BRACKET-TRANS MTG £10.90 Add
005 732-3001 732-3001 £9.71 Add
006 703-0063 PLATE £3.69 Add
007 747-3009 BRACKET LH £9.07 Add
008 747-3010 BRACKET RH £9.07 Add
009 703-1753 SLEEVE HITCH BRACKET ASSEMBLY £67.63 Add
009 710-3015 SCREW HEX CAP £3.33 Add
010 732-3006 spring £21.87 Add
011 703-1076 PANEL-SIDE-LH £200.99 Add
012 703-1077 SEITENVERKLEIDUNG RE. £200.99 Add
013 703-0947 HOOD £456.53 Add
014 731-3059 NO LONGER AVAILABLE N/A POA
015 731-0511-29 TRIM, TANK PROTECTOR 731-3003 £42.91 Add
016 759-3442 KIT - HOOD LABEL [INCLUDES REF NO. 17 (QTY 2)] £112.15 Add
017 731-3053A GRAPHIC, CUB CADET SCRIPT W/ADHESIVE £26.94 Add
018 703-0260 NO LONGER AVAILABLE N/A POA
019 712-0324 HEX. INS L NUT £3.69 Add
020 703-1008 PLATE-BATTERY £218.66 Add
