FG003_0700

Please use your mouse to zoom in and out for more detailed view

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

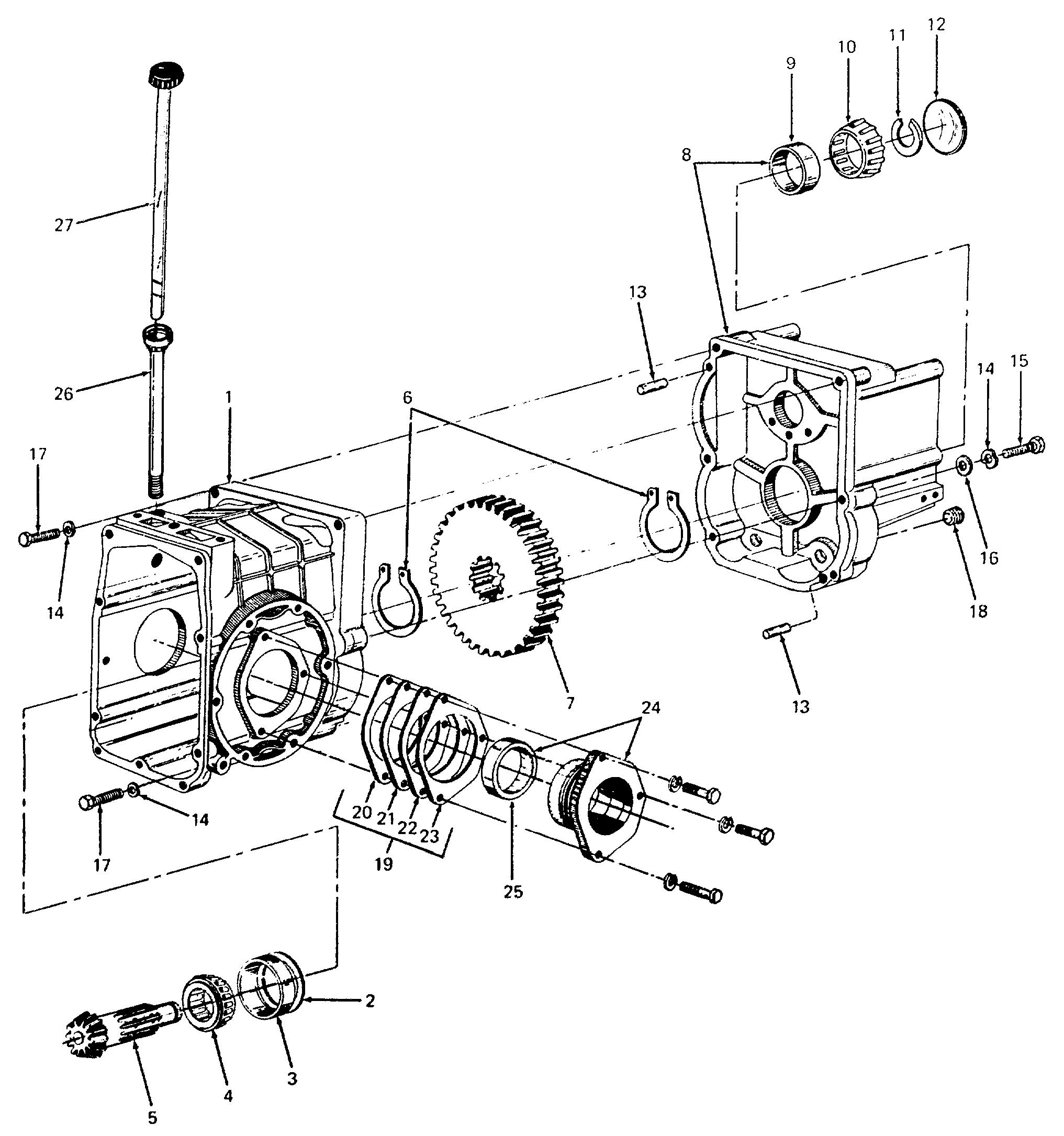

Ref	No	Description	Price
	723-3034	GASKET ELIMINATOR	£42.92	Add
	723-3036	N/A	£100.91	Add
	723-3035	GASKET REMOVER	£164.19	Add
	710-0514	HEX BOLT	£3.81	Add
	736-0169	L. WASHER	£2.89	Add
	721-0194	NO LONGER AVAILABLE	N/A	POA
001	717-3220	HOUSING ASSY REAR TRANSAXLE	£513.39	Add
002	717-3123	SPACER	£2.69	Add
002	717-3124	SPACER	£3.24	Add
002	717-3125	SHIM, REAR BEARING CUP, .007 THK	£2.69	Add
003	741-0370	HOUSING BEARING	£24.75	Add
004	741-0371	TAPER LK BUSHING	£59.38	Add
005	717-3070	717-3070	£436.13	Add
006	716-0138	RETAINER	£2.79	Add
007	717-3126	717-3126	£265.06	Add
008	717-3202	HOUSING ASSY HYDRO	£363.26	Add
009	741-0372	HOUSING-BRG	£27.24	Add
010	741-0373	BEARING-BALL	£63.01	Add
011	717-3127	717-3127	£5.91	Add
011	717-3128	717-3128/917-3128	£7.49	Add
011	717-3129	SICHERUNGSRING -.113	£7.63	Add
011	717-3130	SICHERUNGSRING -.107	£6.35	Add
011	717-3131	717-3131	£6.86	Add
011	717-3132	RETAINER, FRONT BEARING, .131 THK	£6.86	Add
012	726-0216	CAP	£4.02	Add
013	715-0146	NO LONGER AVAILABLE	N/A	POA
014	736-0141	WASH:SPR:.440 x.750 x.015	£3.39	Add
015	710-0850	SKT-SCHRAUBE 7/16-14X2,5	£4.14	Add
016	736-0226	WASHER:FLAT:.474 x.879 x.064	£3.39	Add
017	710-0844	SCREW-HEX	£4.14	Add
018	737-0177	NO LONGER AVAILABLE	N/A	POA
019	759-3430	SHIM PACKAGE [INCLUDES REF NO. 21 (QTY 3), 22 (QTY 4), 23 (QTY 2) & 24 (QTY 2)]	£34.09	Add
020	717-3097	SHIM	£3.69	Add
021	717-3098	SHIM	£4.02	Add
022	717-3099	SHIM	£4.14	Add
023	717-3100	SHIM	£8.24	Add
024	759-3803	BEARING, AERATOR 717-3203	£157.23	Add
025	741-0400	HOUSING BEARING	£32.77	Add
026	727-3042	LINE-FUEL	£32.13	Add
027	703-1496	PIPE-DIPSTICK	£22.40	Add
