FG006_6800

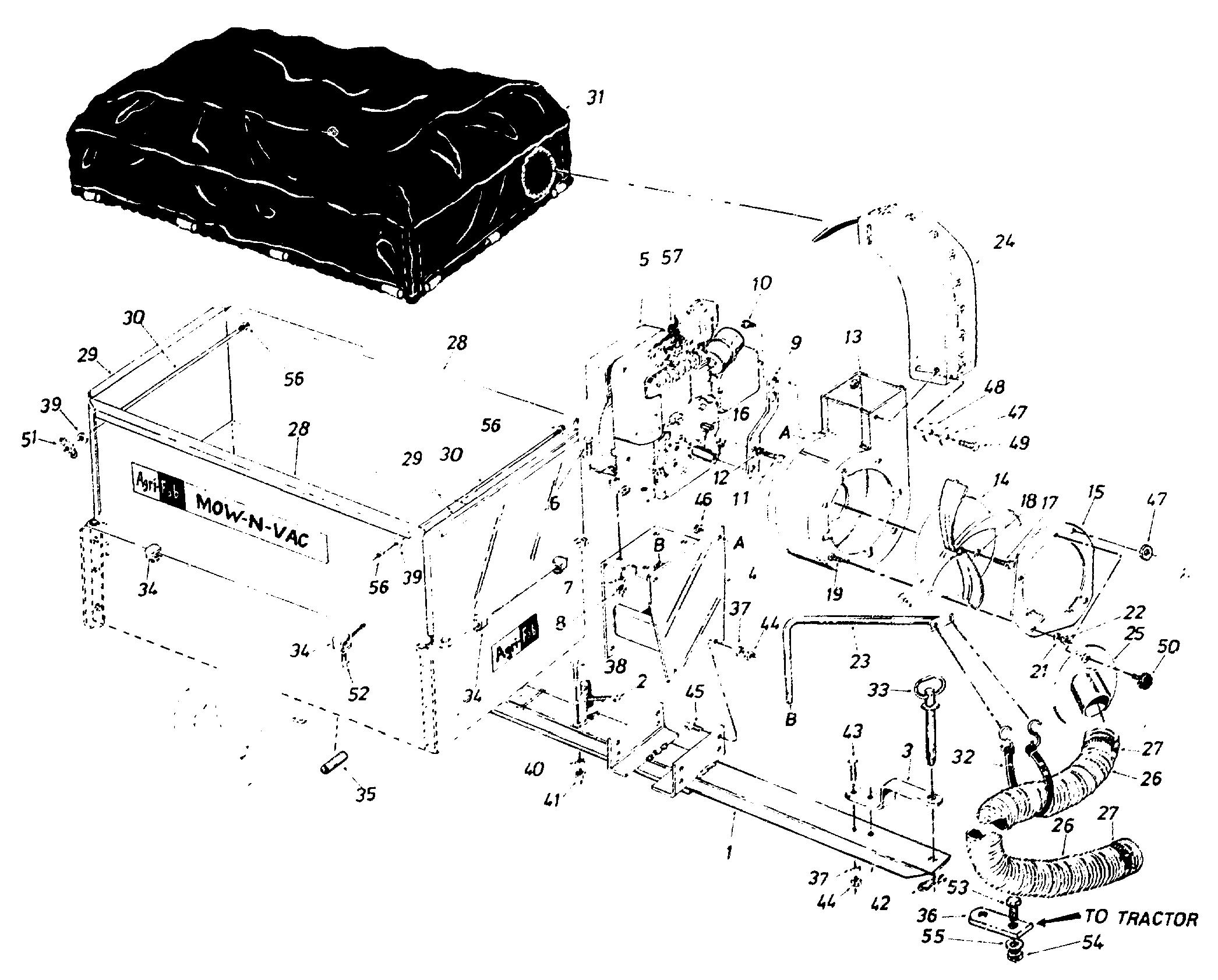

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

FG006_6800

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 62449 TONGUE (DRAW BAR ASSEMBLY) N/A POA
002 62455-AF ASS`Y, LATCH LOCK AF-62455 £53.63 Add
003 23475-AF HITCH BRACKET HD £33.80 Add
004 62450-AF ENGINE MOUNTING PLATE AF-62450 £264.71 Add
005 --------------- 5 H.P. B & S ENGINE (130212-1731-01) N/A POA
006 710-0442 Bolt, Hex 5/16-18 x 1-1/2" 43085 £10.13 Add
007 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
008 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
009 23474-AF BRACKET, ENG. TO BLOWER (MTG.) AF-23474 £33.01 Add
010 43749-AF BOLT, HEX 5/16 x 3/4 TD CUT AF-43749 £3.85 Add
011 710-0627 HEX SCREW £3.32 Add
012 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
013 62486-AF Deck Adapter Kit 62486 £280.80 Add
014 14536-AF ASS´Y, VANE PLATE (PUSH TYPE) AF-14536 £271.11 Add
015 AF-14563 ASSY, NOZZLE PLATE £63.40 Add
016 23477-AF Key, 1/4" Sq. 2" Long 23477 £9.28 Add
017 43795-AF BOLT, HEX HD 3/8-24x1-1/4 GR 5 AF-43795 £3.28 Add
018 736-0169 L. WASHER £2.89 Add
019 43080-AF CARRIAGE BOLT £3.49 Add
021 43086-AF Lock Washer, 5/16" 43086 £3.48 Add
022 43083-AF HEX NUT £3.32 Add
023 62451-AF BRACKET AF-62451 £97.86 Add
024 43788-AF ELBOW WITH DEFLECTOR (PLASTIC) AF-43788 £328.03 Add
025 43791-AF Hose Adapter 43791 £30.61 Add
026 43792-AF Hose 43792 £340.87 Add
027 43793-AF Hose Clamp 43793 £18.87 Add
028 23464 SIDE PANEL, CART EXT. N/A POA
029 23465 END PANEL, CART EXT. N/A POA
030 23476 TIE ROD, CART EXT. N/A POA
031 43789-AF COVER, CART EXT. £322.71 Add
032 43790-AF Tarp Strap, 25" 43790 £28.31 Add
033 43884-AF Hitch Pin 43884 £42.16 Add
034 23478-AF CLIP-BODY AF-23478 £21.76 Add
035 23539 TUBE SLEEVE 3/4*quot; I.D. N/A POA
036 23540-AF Hitch Plate 23540 £13.72 Add
037 736-0169 L. WASHER £2.89 Add
038 43796-AF BOLT, HEX HD 1/4-20x2-3/4 GR 5 AF-43796 £4.05 Add
039 43088-AF FLAT WASHER £3.11 Add
040 43177-AF Washer, Lock 1/4" I.D.* 43177 £3.08 Add
041 HG-43178 NUT (RED) £10.69 Add
042 43343-AF PIN COTTER £4.20 Add
043 43087-AF Hex Bolt, 3/8-16 x 1-1/4" Long 43087 £4.58 Add
044 43082-AF HEX LOCK NUT £4.12 Add
045 710-0514 HEX BOLT £3.81 Add
046 712-0158 NUT, HEX CENTER LOCK, 5/16-18 £9.35 Add
047 43572-AF WASHER AF-43572 £4.99 Add
048 43553-AF WASHER,NYLON1-1/2ODx5/16IDx1/8 AF-43553 £3.55 Add
049 43182-AF Hex Bolt, 5/16" x 3/4" 43182 £4.31 Add
050 720-0170 KNOB:ARM:THREE 5/16-18 £13.72 Add
051 43193-AF WING NUT 43193 £5.79 Add
052 43768-AF BOLT,HEX 3/8-16x1-1/2 FULL THD AF-43768 £5.68 Add
053 43351-AF Hex Bolt, 1/2-1 3 x 1-1/4" 43351 £5.18 Add
054 712-0384 NUT 1/2-13 HEX LOCK 43262 £14.44 Add
055 43352-AF Flat Washer, 7/16" 43352 £3.48 Add
056 712-0107 NO LONGER AVAILABLE N/A POA
057 731-0189 KNOB, THROTTLE £7.48 Add
