MTD009833

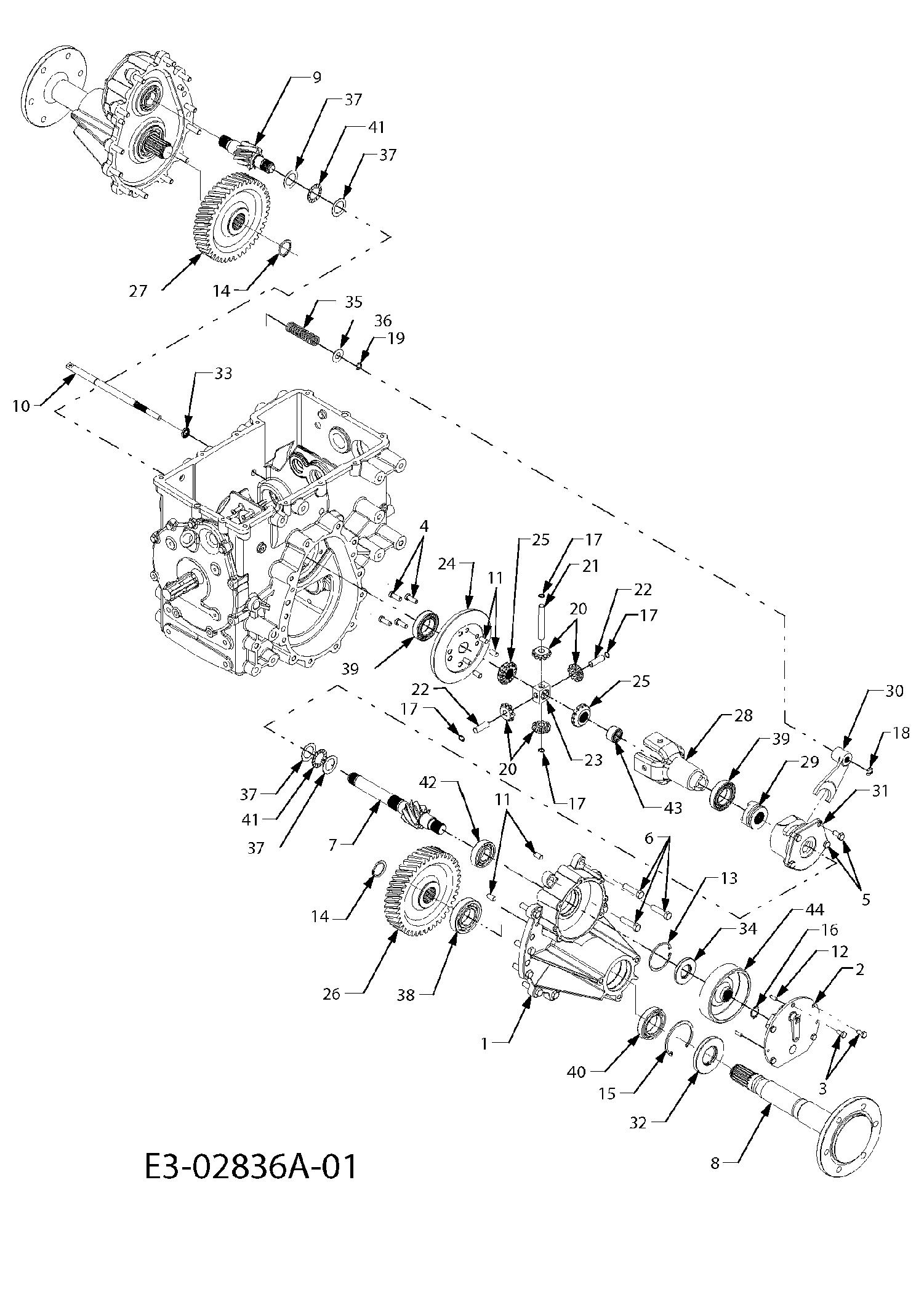

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	619-3060A	HOUSING, AXLE	£277.66	Add
002	661-3014	BRAKE ASM:YOKE:LH	£213.65	Add
003	710-0538	HEX L BOLT	£4.15	Add
004	710-1695B	SCREW SOCKET	£9.09	Add
005	710-3119	BOLT-HEX PATCH 3/8-16 X .75 GR	£17.82	Add
006	710-3238	710-3238	£6.72	Add
007	711-1326	SHAFT, AXLE STUB RH	£131.42	Add
008	711-1327	AXLE SHAFT	N/A	POA
009	711-1358	SHAFT, AXLE STUB LH	£124.14	Add
010	711-1389A	DIFFERENTIAL SHAFT	£90.66	Add
011	715-0226	PIN-DOWEL .375X.75	£14.88	Add
012	715-3010	PIN-DOWEL 1/4 X 3/4	£12.94	Add
013	716-0180	Circlip	£16.86	Add
014	716-0195	Circlip	£18.41	Add
015	716-0196	Circlip	£19.89	Add
016	716-0390	Circlip	£4.48	Add
017	716-0391	Circlip	£5.40	Add
018	716-0396	CLAMP	£17.94	Add
019	716-0397	Circlip	£9.68	Add
020	717-120		N/A	POA
021	717-1173	SHAFT-CROSS	£16.05	Add
022	717-1178	SHAFT-CROSS-SPECIAL	£8.17	Add
023	717-1180	BLOCK, DIFFERENTIAL PINION	£70.55	Add
024	717-3316	GEAR BEVEL 65 T	£217.30	Add
025	717-3317	GEAR MITER 14 T	£53.35	Add
026	717-3471	GEAR, RH BULL	£243.33	Add
027	717-3478	GEAR, LH BULL	£244.90	Add
028	718-0666	CARRIER, DIFFERENTIAL	£158.61	Add
029	718-3104	HINGE PIN	£97.99	Add
030	718-3105	FORK-SHIFT	£102.91	Add
031	718-3112	COVER, BEARING	£107.16	Add
032	721-0495	SEAL, OIL	£25.76	Add
033	721-0496	SEAL-OIL 7000 SER	£11.34	Add
034	721-3020A	OIL SEAL	£20.33	Add
035	732-0187	COMPRESSION SPRING	£6.03	Add
036	736-0355	WASHER	£3.19	Add
037	736-0715	WASHER-THRUST	£11.87	Add
038	741-0721	BALL BEARING	£21.81	Add
039	741-1104	BALL BEARING	£33.00	Add
040	741-1107	BEARING-BALL	£38.38	Add
041	741-1112	THRUST BEARING	£21.95	Add
042	741-3033A	BRG:BALL:30x62x16:6206:OPEN	£48.93	Add
043	741-3080	BRG:NDL:1.000 X 1.312	N/A	POA
044	761-3071	Brake drum	£71.64	Add
