Parts list

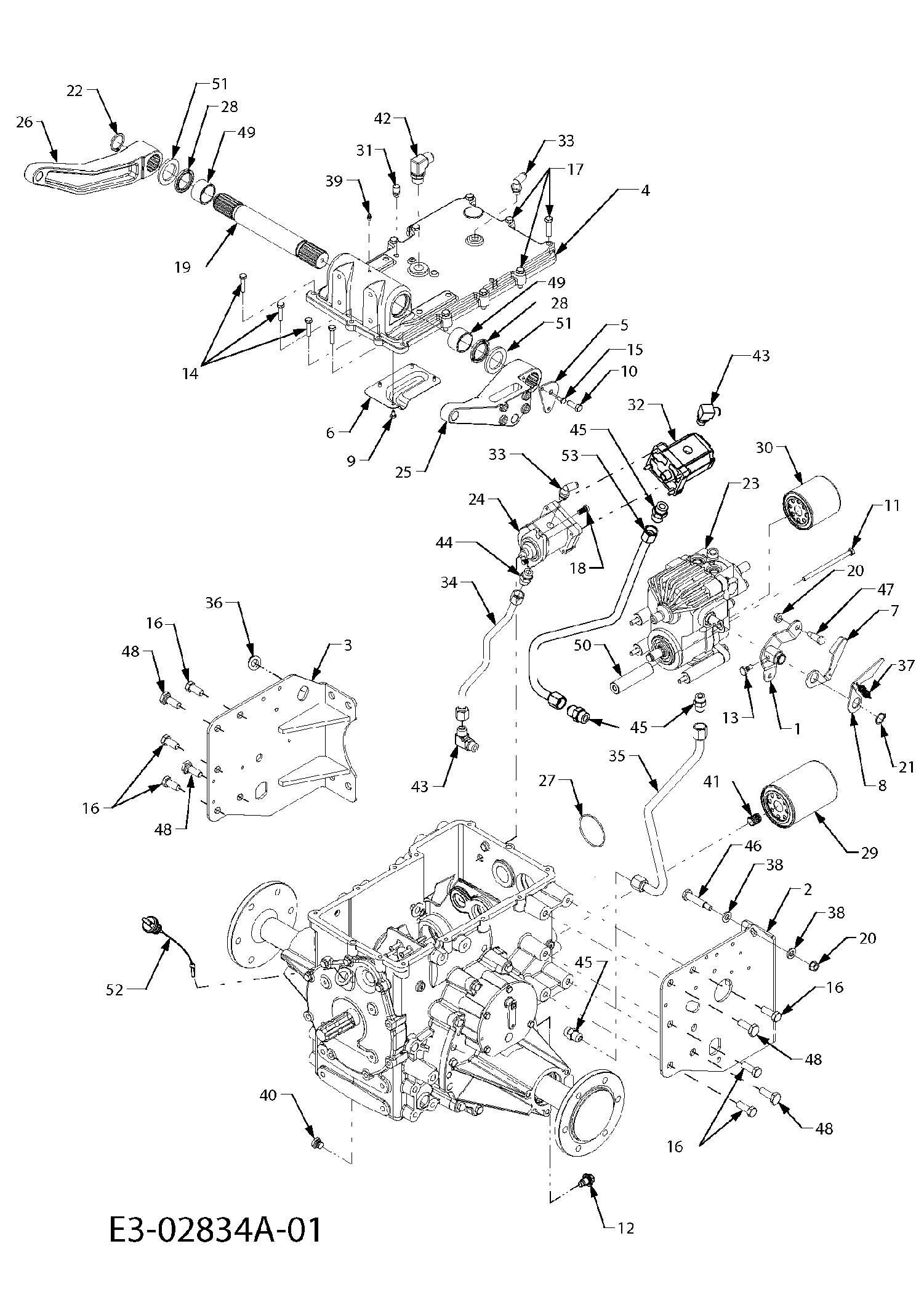

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
|
737-3025
|
HYDRO-OIL
|
£43.81
|
Add
|
|
|
737-3062
|
HYDRO-OIL
|
£123.20
|
Add
|
|
|
732-3035
|
spring
|
£17.35
|
Add
|
|
|
759-3964
|
PIN-DOWEL M4X8
|
£15.57
|
Add
|
|
|
759-3965
|
SCREW-SOCKET HEAD
|
£9.92
|
Add
|
|
|
759-3966
|
COUPLER PUMP
|
N/A
|
POA
|
|
001
|
603-0688A
|
ARM-HYDRO CONTROL
|
N/A
|
POA
|
|
002
|
603-0712A
|
FIXATION PLATE TRANSMISSION RH
|
£198.67
|
Add
|
|
003
|
603-0713A
|
TRANSMISSION FIXATION PLATE LH
|
£199.38
|
Add
|
|
004
|
619-04075
|
HOUSING ASSY-RIGHT HAND
|
N/A
|
POA
|
|
005
|
703-3577
|
PLATE-FEEDBACK BL
|
N/A
|
POA
|
|
006
|
703-3715
|
BAFFLE OIL
|
£43.92
|
Add
|
|
007
|
703-05041
|
ARM-NEUTRAL RH 7000 SER
|
£81.93
|
Add
|
|
008
|
703-05042
|
ARM-NEUTRAL LH 7000 SER
|
£81.93
|
Add
|
|
009
|
710-0294
|
SCREW-HEX CAP
|
£7.96
|
Add
|
|
010
|
710-0591
|
HHCS:3/8-24:1.00:GR5:LOCK
|
£9.23
|
Add
|
|
011
|
710-0833
|
SCREW-HEX
|
£22.44
|
Add
|
|
012
|
710-1633
|
DRAIN SCREW
|
£21.44
|
Add
|
|
013
|
710-1853
|
SCREW HEX CAP 5/16-18X.625"
|
N/A
|
POA
|
|
014
|
710-3005
|
BOLT
|
£3.24
|
Add
|
|
015
|
710-3013
|
HHCS:1/4-20:.50:GR5:STD
|
£3.39
|
Add
|
|
016
|
710-3032
|
BOLT-HEX 1/2-13X1-1/4
|
£10.97
|
Add
|
|
017
|
710-3120
|
BOLT-PATCH 3/8-16X1.5 GR5
|
£9.10
|
Add
|
|
018
|
710-3262
|
SCREW,LOW HD CAP,3/8-16X.75
|
£15.67
|
Add
|
|
019
|
711-1355
|
SHAFT, ROCK
|
N/A
|
POA
|
|
020
|
712-0431
|
NUT
|
£3.20
|
Add
|
|
021
|
716-0111
|
EXT:RET:RING:.875 SHFT
|
£2.98
|
Add
|
|
022
|
716-0195
|
Circlip
|
£18.41
|
Add
|
|
023
|
717-3507
|
PUMP-HYDROSTATIC TRANSMISSION
|
£1,840.51
|
Add
|
|
024
|
718-3131A
|
PUMP-HYDRAULIC
|
N/A
|
POA
|
|
025
|
719-3166
|
UPPER ARM R.H.
|
N/A
|
POA
|
|
026
|
719-3167
|
UPPER ARM L.H.
|
N/A
|
POA
|
|
027
|
721-0501
|
RING-O 2.987 ID X .103 DIA
|
£20.33
|
Add
|
|
028
|
721-0510
|
SEAL-OIL 1.5X2.0X.25
|
£15.57
|
Add
|
|
029
|
723-04032A
|
723-04032A
|
£90.02
|
Add
|
|
030
|
723-3014
|
FILTER,OIL
|
£30.42
|
Add
|
|
031
|
723-3021
|
BREATHER
|
£28.20
|
Add
|
|
032
|
718-3138
|
PUMP-AUXILIARY HYD VLV PKG7000
|
N/A
|
POA
|
|
033
|
727-3012
|
FITTING,90 DEGREE ELBOW
|
£38.54
|
Add
|
|
034
|
727-3176
|
TUBE-AUX PUMP SUCTION
|
N/A
|
POA
|
|
035
|
727-3181
|
TUBE-AUX HYDRO SUCTION 7000SER
|
£78.93
|
Add
|
|
036
|
731-04018
|
GROMMET VENT FITTING
|
£12.33
|
Add
|
|
037
|
732-1162
|
SPRING-EXTENSION 7000 SER
|
£26.47
|
Add
|
|
038
|
736-3052
|
WASH:FLAT:.406 X 1.00 X .105
|
£3.77
|
Add
|
|
039
|
737-0146
|
FITTING-GREASE
|
£4.11
|
Add
|
|
040
|
737-0349
|
KNOB
|
£36.13
|
Add
|
|
041
|
737-3105
|
FITTING FILTER NIPPLE
|
£23.29
|
Add
|
|
042
|
737-3108
|
FITTING,90 DEGREE
|
£48.87
|
Add
|
|
043
|
737-3111
|
FITTING,90 DEGREE
|
£32.99
|
Add
|
|
044
|
737-3112
|
FITTING, STRAIGHT 5/8 X 5/8
|
£28.37
|
Add
|
|
045
|
737-3113
|
FITTING, STRAIGHT 5/8 X 5/8
|
£29.89
|
Add
|
|
046
|
738-0108
|
SCREW-SHLD
|
£7.85
|
Add
|
|
047
|
738-0430
|
SHLD-SCR: .50 x .685:3/8-16
|
£8.01
|
Add
|
|
048
|
738-04001
|
NO LONGER AVAILABLE
|
N/A
|
POA
|
|
049
|
741-1110
|
BEARING SLEEVE
|
N/A
|
POA
|
|
050
|
750-1208
|
SPACER .40X1.0X
|
N/A
|
POA
|
|
051
|
750-1239
|
SPACER 1.52X2.25X
|
N/A
|
POA
|
|
052
|
737-04018
|
FILLER
|
£84.34
|
Add
|
|
053
|
727-3206
|
TUBE-TANDEM PUMP SUCTION
|
£109.50
|
Add
|
