Parts list

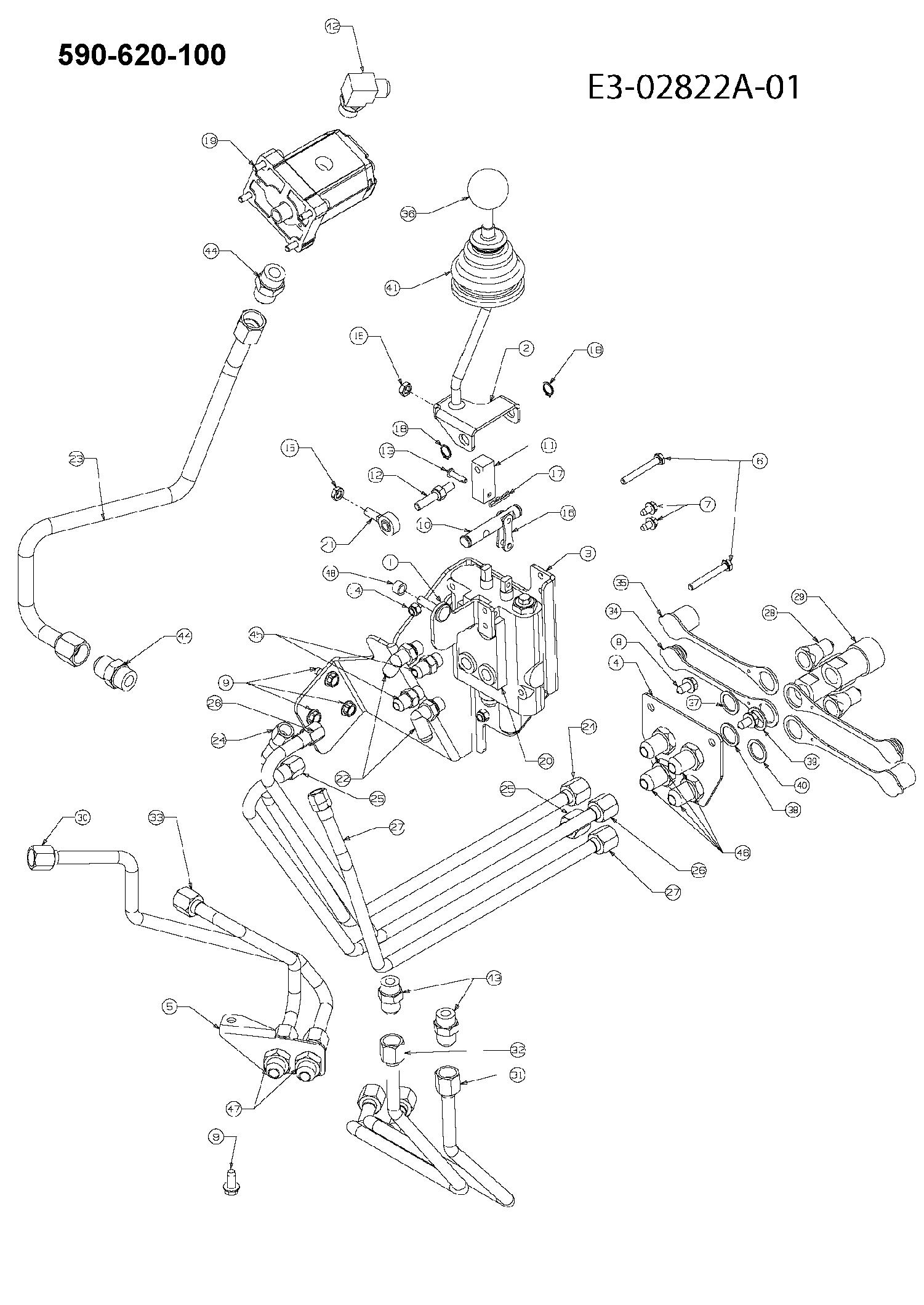

Match the number with the image on the left and click "Add" button to add the item to your basket
Please note, that the prices are for individual items
Items might appear more than once on the drawing, please check and adjust the quantity you require.
| Ref |
No |
Description |
Price |
|
|
001
|
603-0813A
|
BRKT ASM:PIV
|
N/A
|
POA
|
|
002
|
603-0862
|
gear lever
|
£110.23
|
Add
|
|
003
|
703-3598
|
BRACKET-VALVE MTG
|
N/A
|
POA
|
|
004
|
703-3972
|
DISK:REINFORCEMENT
|
N/A
|
POA
|
|
005
|
703-3973
|
REAR FITTING MOUNT PLATE
|
£53.49
|
Add
|
|
006
|
710-0501
|
HHCS:1/4-20:2.0:GR5:STD
|
£3.91
|
Add
|
|
007
|
710-0599
|
HEX TT SCREW 1/4-20
|
£4.95
|
Add
|
|
008
|
710-0604A
|
SCREW
|
£3.62
|
Add
|
|
009
|
710-1260A
|
SCREW
|
£4.00
|
Add
|
|
010
|
711-1611
|
VALVE PIVOT SHAFT
|
£59.03
|
Add
|
|
011
|
711-1624
|
LINK:SPOOL:VALVE
|
£79.39
|
Add
|
|
012
|
711-1637
|
STUD-ACTUATOR
|
£19.77
|
Add
|
|
013
|
711-1642
|
Bolt
|
£32.45
|
Add
|
|
014
|
712-0324
|
HEX. INS L NUT
|
£3.69
|
Add
|
|
015
|
712-3025
|
HEX JAM NUT 5/16-24 GR 5
|
£4.37
|
Add
|
|
016
|
713-3000
|
CHAIN LINK
|
£7.98
|
Add
|
|
017
|
714-0104
|
PIN INTERNAL COTTER
|
£2.78
|
Add
|
|
018
|
716-0865
|
RING-SNAP
|
£11.34
|
Add
|
|
019
|
718-3138
|
PUMP-AUXILIARY HYD VLV PKG7000
|
N/A
|
POA
|
|
020
|
718-3140
|
LOADER CONTROL VALVE
|
£684.94
|
Add
|
|
021
|
WM-489089
|
JOINT-ROD END BALL
|
£129.43
|
Add
|
|
022
|
727-3012
|
FITTING,90 DEGREE ELBOW
|
£38.54
|
Add
|
|
023
|
727-3206
|
TUBE-TANDEM PUMP SUCTION
|
£109.50
|
Add
|
|
024
|
727-3210
|
TUBE:LOADER:BOOM:LIFT
|
N/A
|
POA
|
|
025
|
727-3211
|
TUBE:BOOM:RETURN
|
N/A
|
POA
|
|
026
|
727-3212
|
TUBE:BUCKET:LIFT
|
N/A
|
POA
|
|
027
|
727-3213
|
TUBE:BUCKET:RETURN
|
N/A
|
POA
|
|
028
|
727-3224
|
COUPLING, MALE HYDRAULIC
|
£71.07
|
Add
|
|
029
|
727-3225
|
COUPLING, FEMALE HYDR.
|
£92.51
|
Add
|
|
030
|
727-3226
|
TUBE, AUXITIARY PUMP PRESSURE
|
£70.30
|
Add
|
|
031
|
727-3227
|
TUBE, VALVE PRESSURE
|
£90.66
|
Add
|
|
032
|
727-3228
|
TUBE, VALVE RETURN
|
£87.73
|
Add
|
|
033
|
727-3229
|
TUBE, VALVE RETURN
|
N/A
|
POA
|
|
034
|
727-3261
|
PLUG, HYD. COUPLER MALE
|
£62.43
|
Add
|
|
035
|
727-3262
|
PLUG, HYD. COUPLER FEMALE
|
£77.41
|
Add
|
|
036
|
731-3353
|
KNOB
|
£36.06
|
Add
|
|
037
|
731-3374
|
WASHER, INDICATOR - RED
|
N/A
|
POA
|
|
038
|
731-3375
|
WASHER, INDICATOR - YELLOW
|
N/A
|
POA
|
|
039
|
731-3376
|
WASHER, INDICATOR - GREEN
|
£17.81
|
Add
|
|
040
|
731-3377
|
WASHER, INDICATOR - BLUE
|
£17.81
|
Add
|
|
041
|
735-0696
|
BOOT, JOYSTICK
|
£61.13
|
Add
|
|
042
|
737-3111
|
FITTING,90 DEGREE
|
£32.99
|
Add
|
|
043
|
737-3112
|
FITTING, STRAIGHT 5/8 X 5/8
|
£28.37
|
Add
|
|
044
|
737-3113
|
FITTING, STRAIGHT 5/8 X 5/8
|
£29.89
|
Add
|
|
045
|
737-3125
|
FITTING, STRAIGHT
|
£22.05
|
Add
|
|
046
|
737-3129
|
FITTING, BULKHEAD
|
£55.19
|
Add
|
|
047
|
737-3130
|
FITTING, BULKHEAD
|
£37.93
|
Add
|
|
048
|
750-0845
|
SLEEVE
|
£5.80
|
Add
|
