MTD009961

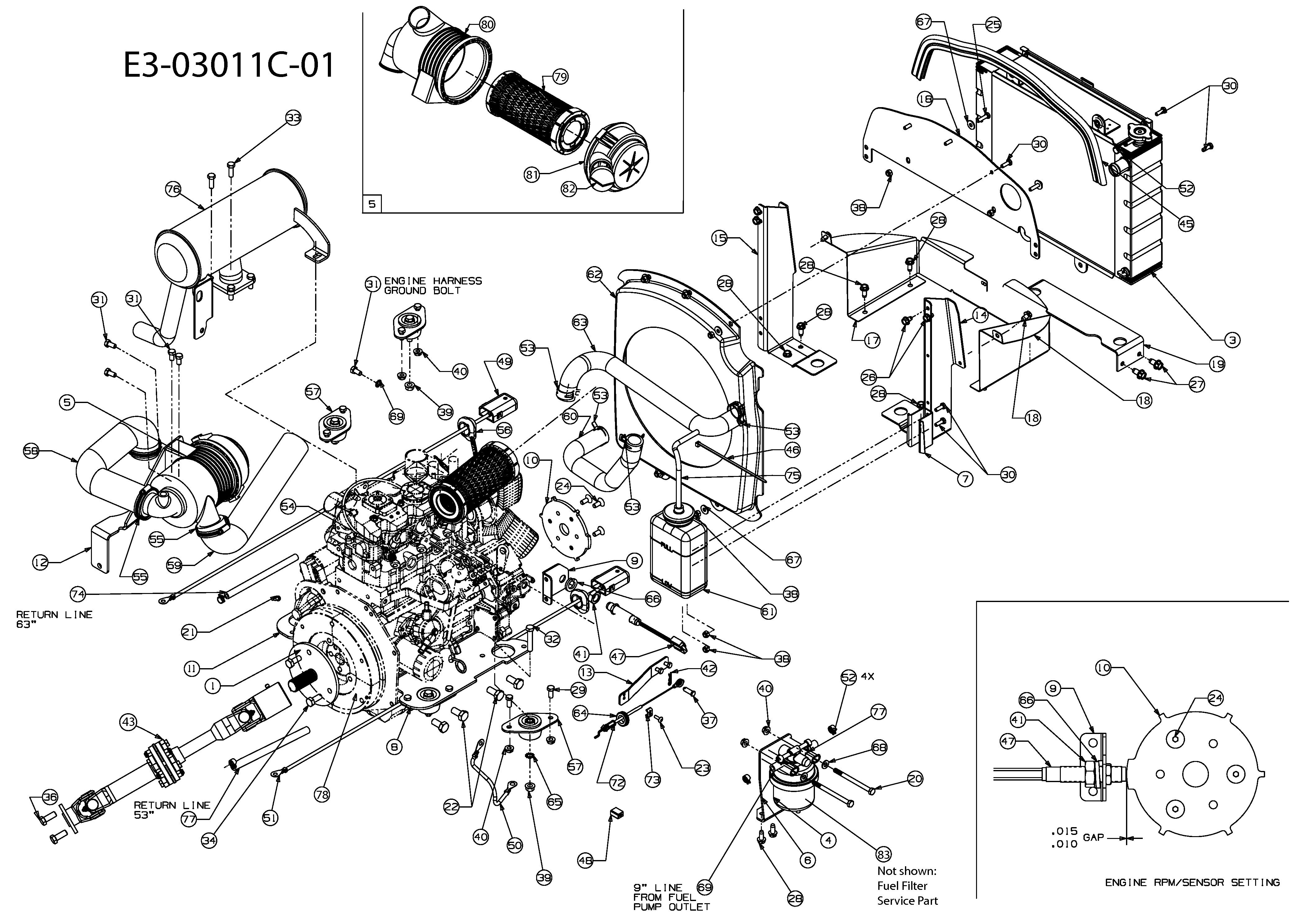

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009961

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-04371637 PLATE ASSY 603-04371 (OBSOLETE) N/A
002 629-04080 HARNESS ASM-ENGINE £306.75 Add
003 651-04002A - N/A POA
004 651-04044 FILTER FUEL £181.51 Add
005 651-04051 ROD PARK BRAKE RETAINING N/A POA
006 703-05454 BRACKET, FILTER N/A POA
007 703-05461 BRACKET, OVER FLOW BOTTLE N/A POA
008 703-05529A BRACKET £58.15 Add
009 703-05534A N/A POA
010 703-05544A GUIDE PLATE N/A POA
011 703-05553A BRACKET LH ENGINE N/A POA
012 703-05708A N/A POA
013 703-05765 BRACKET, CABLE N/A POA
014 703-05834 BRACKET RADIATOR RH N/A POA
015 703-05835 BRKT-LH RADIATOR N/A POA
016 703-05836 PLATE-RH BAFFLE N/A POA
017 703-05837 PLATE-LH BAFFLE N/A POA
018 703-3483A PLATE-RAD BAFFLE N/A POA
019 703-3741 BRACKET, RADIATOR N/A POA
020 710-0190 HHCS:5/16-18:4.00:GR5:STD £4.54 Add
021 710-0224 SCR:AB:#10-16:0.500:HXINDWSH N/A POA
022 710-04177A HEX CAP SCREW M12-1.25X25 £6.71 Add
023 710-0425 SCR:MACH:#10-24:0.625:TRUSPHI £6.07 Add
024 710-04315 SCREW, TORX M8X1.25X20 £5.43 Add
025 710-0597 HEX SEMS SCREW £2.52 Add
026 710-0607 SELF TAP SCREW £3.97 Add
027 710-0623 SCR:TT:3/8-16:.750 HXINDWSH £5.77 Add
028 710-1260A SCREW £3.37 Add
029 710-3008 HEX BOLT £2.57 Add
030 710-3015 SCREW HEX CAP £2.82 Add
031 710-3138 HHCS:M8-1.25:16MM:GR8.8:STD N/A POA
032 710-3144 SCREW £2.94 Add
033 710-3206A HHCS:M8-1.25:25.0:GR8.8:STD £4.22 Add
034 710-3208 SCREW HHCS:M10-1.5:25mm:GR8.8 £2.97 Add
035 710-3209 HHCS:M6-1.0:10MM:GR8.8:STD £4.48 Add
036 710-3218 SOCKET SCREW £2.85 Add
037 711-0653 CLEVIS PIN £16.49 Add
038 712-0324 HEX. INS L NUT £1.36 Add
039 712-0431 NUT £2.71 Add
040 712-3004A HEX FLANGE NUT £2.52 Add
041 712-3056 NUT:JAM:5/8-18:GR5 £4.18 Add
042 714-0104 PIN INTERNAL COTTER £2.36 Add
043 717-04193 DRIVE SHAFT £427.35 Add
045 111.11.114 SRAP:CHUTE 723-0617 £9.20 Add
046 725-0157 NYLON CABLE TIE 3/16 X .05 X 7.4 N/A POA
047 725-04212 SENSOR, ENGINE £185.53 Add
048 725-04615 N/A POA
049 725-3281 POSITIVE BATTERY CABLE £40.06 Add
050 725-3283 WIRE, GROUND £33.41 Add
051 725-3287 NEGATIVE BATTERY CABLE £37.43 Add
052 726-0205 HOSE CLAMP 1/2 INCH DIA. £2.90 Add
053 726-04026 CLAMP-HOSE N/A POA
054 726-04041 CLAMP-HOSE N/A POA
055 726-0476 CLAMP-HOSE N/A POA
056 731-04018 GROMMET VENT FITTING £11.30 Add
057 731-04667 MOUNT, ENGINE £48.54 Add
058 731-04695 HOSE, AIR INLET £89.14 Add
059 731-04696 HOSE, AIR FILTER £93.31 Add
060 731-04704 HARNESS, RADIATOR TO ENGINE £57.82 Add
061 731-04731 EQUALIZING TANK £83.81 Add
062 731-04946A SHROUD-FAN 5000 MF N/A POA
063 731-04966 TUBE £62.21 Add
064 735-0226 GROM:RUBR:.66 ID/1.125 OD/.09 £3.21 Add
065 736-0148 WASH:LOCK:3/8 EXT TOOTH N/A POA
066 736-0158 WASHER:LOCK:5/8:SPLT:REG £3.44 Add
067 736-0173 WASH:FL:.28ID:.74OD:.063 £3.57 Add
068 736-0275 WASH:FLAT:.344 x .688 x.065 £2.66 Add
069 736-0607 WASH:LOCK:5/16 EXT TOOTH £2.61 Add
072 746-04126 THROTTLE CABLE £37.37 Add
073 751B221535 CLAMP-CASING £2.38 Add
074 751-0535-MET FUEL LINE HOSE BLACK £9.79 Add
075 751-10151 HOSE-OVERFLOW N/A POA
076 751-10159A EXHAUST N/A POA
077 751-3130 HOSE-FUEL £43.40 Add
078 852PHD70601 N/A POA
079 751-3194 AIR CLEANER ELEMENT £56.81 Add
080 751-10066 CANISTER, AIR CLEANER N/A POA
081 751-3195 CAP, AIR CLEANER £55.20 Add
082 751-3197 DUST, VALVE £47.22 Add
083 EPB5635 FILTER SAFTEY ELEMENT 759-04027 £28.68 Add
