MTD009954

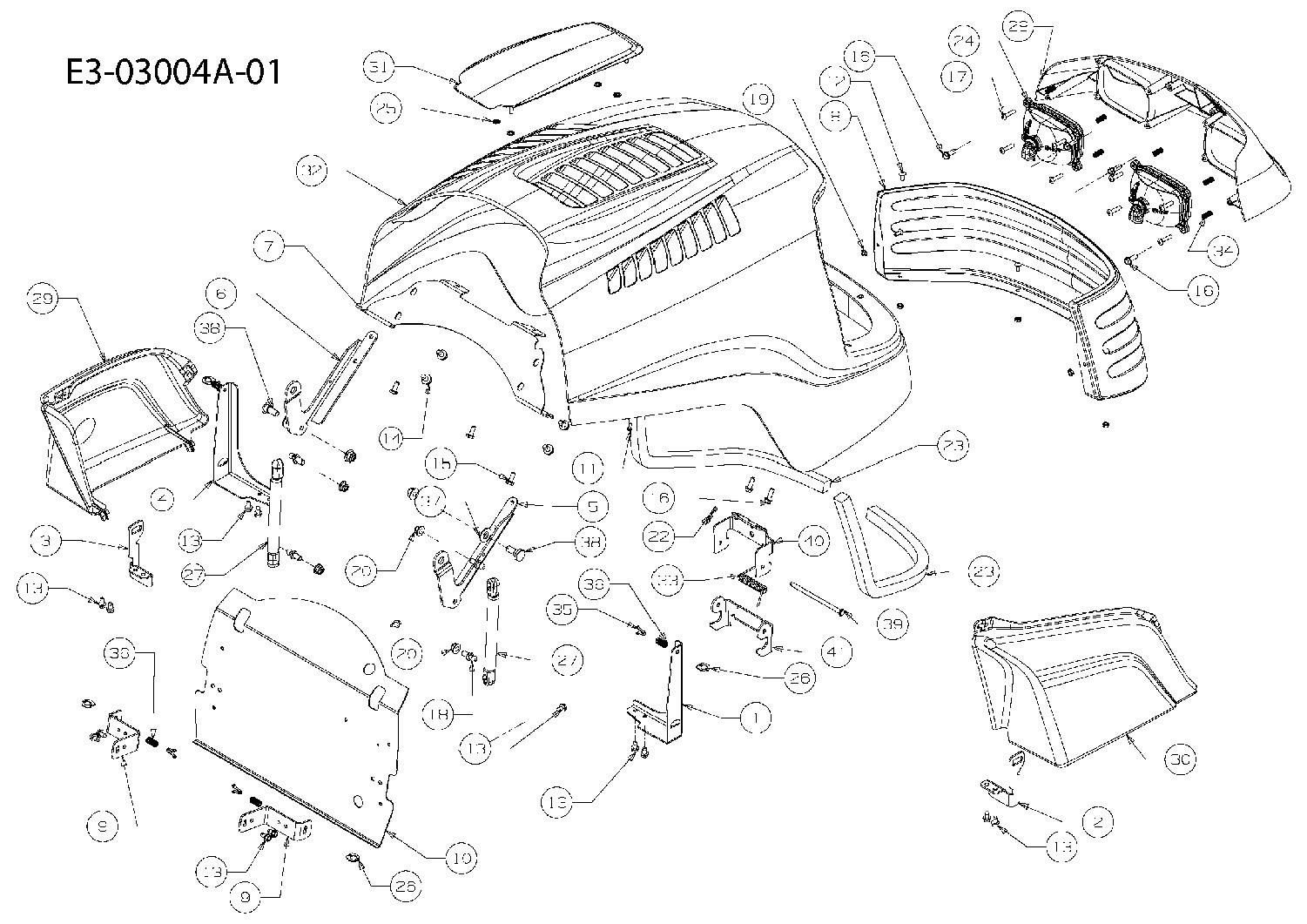

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	703-05281	BRKT-RH PANEL MTG POWDER BLACK	£97.36	Add
002	703-05284	BRKT SIDE PANEL MTG. RH REAR	£77.85	Add
003	703-05293	BRKT SIDE PANEL MTG LH REAR	£75.23	Add
004	703-05295	BRKT SIDE PANEL MTG LH	£97.36	Add
005	703-05652	BRKT-RH HINGE POWDER BLACK	£75.06	Add
006	703-05653	BRKT-LH HINGE POWDER BLACK	£75.06	Add
007	703-05655	BRKT-HOOD MTG POWDER BLACK	£73.36	Add
008	703-3394	SCREEN-INTAKE:6000	£126.49	Add
009	703-3764	BRACKET-PANEL MTG	£41.32	Add
010	703-3765	SHIELD-LOWER HEAT	N/A	POA
011	710-04164	SCREW	£5.95	Add
012	710-0473	SCR:MACH:#10-24:0.500:TRUSPHI	£4.62	Add
013	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
014	710-0607	SELF TAP SCREW	£4.71	Add
015	710-0751	BOLT 069	£3.39	Add
016	710-0895	SCR:HL:1/4-10:0.750:HXINDWSH	£3.51	Add
017	710-0969	SCREW	£3.35	Add
018	710-3170	BALL SCREW, 5/16-18X.56	£4.76	Add
019	712-0272	NUT SEMS:#10-24	£3.39	Add
020	712-04063	FLANGED NUT	£4.20	Add
021	712-04065	NUT	£4.02	Add
022	714-0104	PIN INTERNAL COTTER	£2.78	Add
023	721-04162	FAOM	£74.24	Add
024	725-04250	USE 725-1672	£112.71	Add
025	726-0233	NUT:PUSH:.25 ID X .50 OD	£3.58	Add
026	726-3056	LATCH 1/4 TURN	£13.39	Add
027	727-04142	CYLINDER-GAS/SPRING	£39.49	Add
028	731-04211	BEZEL-HEAD LIGHT:5000	£77.68	Add
029	731-04540	PANEL-LH SIDE BLK 5/6000 SER	£60.75	Add
030	731-04541	PANEL-RH SIDE BLK 5/6000 SER	£60.75	Add
031	731-05161	COVER:HOOD	£51.32	Add
032	731-05301	HOOD-CUB W/LOUVERS 5/6000SER	£322.46	Add
033	732-04281A	SPR: TORSION:.290 ID X 1.95	£15.75	Add
034	732-04414	COMP.SPRING:.310 X .710 X .041	£5.55	Add
035	732-0936	CLIP-SPRING	£12.34	Add
036	732-0937	COMPRESSION SPRING	£11.98	Add
037	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
038	738-0380	SCR:SHLDR:.500x.270:3/8-16	£10.48	Add
039	747-1323A	ROD:.250 DIA x 4.55 LG	£8.22	Add
040	783-04714	PLATE-LATCH	£18.49	Add
041	783-04717A	BRKT-LATCH PIVOT PLTD 5/6000	£24.55	Add
