MTD009952

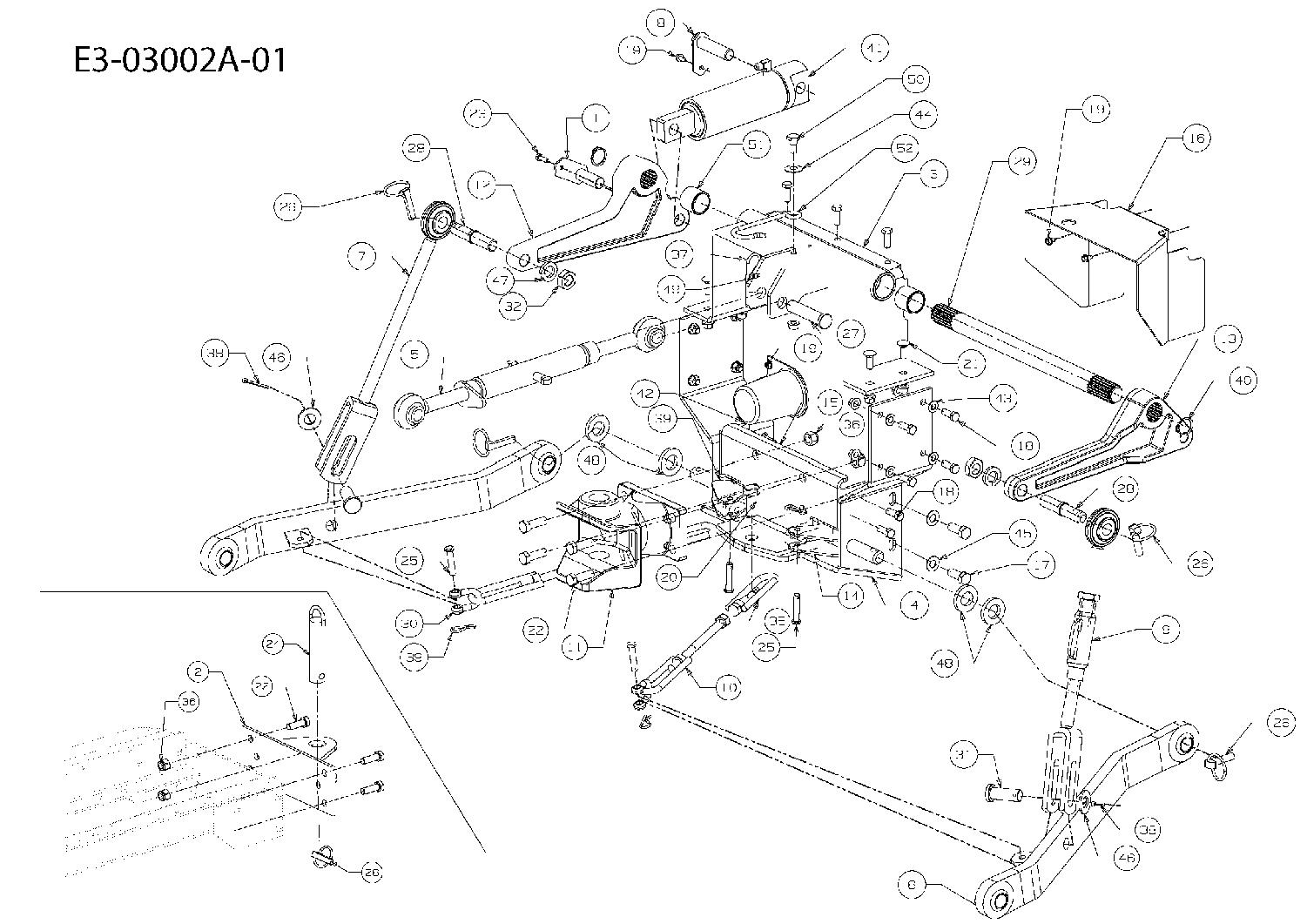

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	603-04062	PIN-CYL LIFT ARM	£94.41	Add
002	603-04108	BRKT ASM:SHFT:PIVOT	£122.54	Add
003	603-04332	BRKT-UPPER HITCH	£188.79	Add
004	603-04333	BRKT-LOWER HITCH	£207.78	Add
005	603-0964	LINK ASM:UPPER	£235.69	Add
006	603-0965	LINK ASM:LOWER	£253.72	Add
007	603-0970	LINK ASM-FIXED LIFT	£186.26	Add
008	603-0972	PIN-LIFT CYL MTG	£89.41	Add
009	903-0973	LINK ASM-ADJUSTABLE 603-0973	£121.46	Add
010	603-0977	CHAIN ASM-CHECK	£51.02	Add
011	619-04100	HITCH ASM:REAR:CE	N/A	POA
012	619-3095	ARM-LH UPPER HITCH	£118.49	Add
013	619-3096	ARM-RH UPPER HITCH	£121.34	Add
014	703-05945	BRKT:MT:CHAIN 5000 CE	N/A	POA
015	703-05946	BRKT:MT:HITCH 5000 CE	N/A	POA
016	703-4137	SHIELD-REAR PTO	£72.15	Add
017	710-04186	SCREW	£25.02	Add
018	710-0514	HEX BOLT	£3.81	Add
019	710-0599	HEX TT SCREW 1/4-20	£4.95	Add
020	710-1515	SCREW-HEX CAP 5/8-11X1.5 GR5	£9.43	Add
021	710-3168	CARRIAGE BOLT 3/8 INCH X 1 INCH	£7.01	Add
022	710-3181	HHCS:1/2-13:1.50:GR5:STD	£4.50	Add
023	710-3296	HEX SCREW	£10.74	Add
024	711-04175	CLEVIS PIN	£43.30	Add
025	711-0679A	CLEVIS PIN	£6.70	Add
026	711-1105	PIN-KLIK 1.75 LG	£11.05	Add
027	711-1733	CLEVIS PIN 19MM X 84MM	£73.32	Add
028	711-1743	STUD-ACTUATOR	£33.90	Add
029	711-1750	SHAFT	£135.79	Add
030	711-1753	CLEVIS-CHECK CHAIN	£83.55	Add
031	711-1761	CLEVIS PIN	£78.88	Add
032	712-0301	NUT-HEX JAM	£17.52	Add
033	712-04065	NUT	£4.02	Add
034	712-0431	NUT	£3.20	Add
035	712-3016	NUT:HEXLK:5/8-11:GR5:NYLON	£11.98	Add
036	712-3083	NUT	£2.79	Add
037	714-0117	PIN:COT:INT: .148 x 3.00	£4.87	Add
038	714-0142	PIN-COTTER	£3.76	Add
039	714-0149B	COTTER PIN	£3.58	Add
040	716-04004	RING	£30.28	Add
041	717-3532A	CYLINDER-HITCH LIFT	£394.19	Add
042	731-04114	COVER	£30.48	Add
043	736-0185	FLAT WASHER (RED)	£3.59	Add
044	736-0255	WASHER, BELL, .515 X 1.14 X .04 THK	£3.90	Add
045	736-0272	WASHER:FL:.510 X 1.000 X .060	£3.16	Add
046	736-0315	WASHER FLAT	£12.14	Add
047	736-0364	washer	£3.48	Add
048	736-04177	WASHER-FLAT .938X1	£13.11	Add
049	737-3000	FITTING LUBE 3/16 DRIVE TYPE	£3.87	Add
050	738-0143	SHOULDER BOLT	£12.24	Add
051	741-04084	BEARING-SLEEVE 1.25X1.50X1.25	£17.12	Add
052	747-04122	ROD	£27.91	Add
