MTD009950

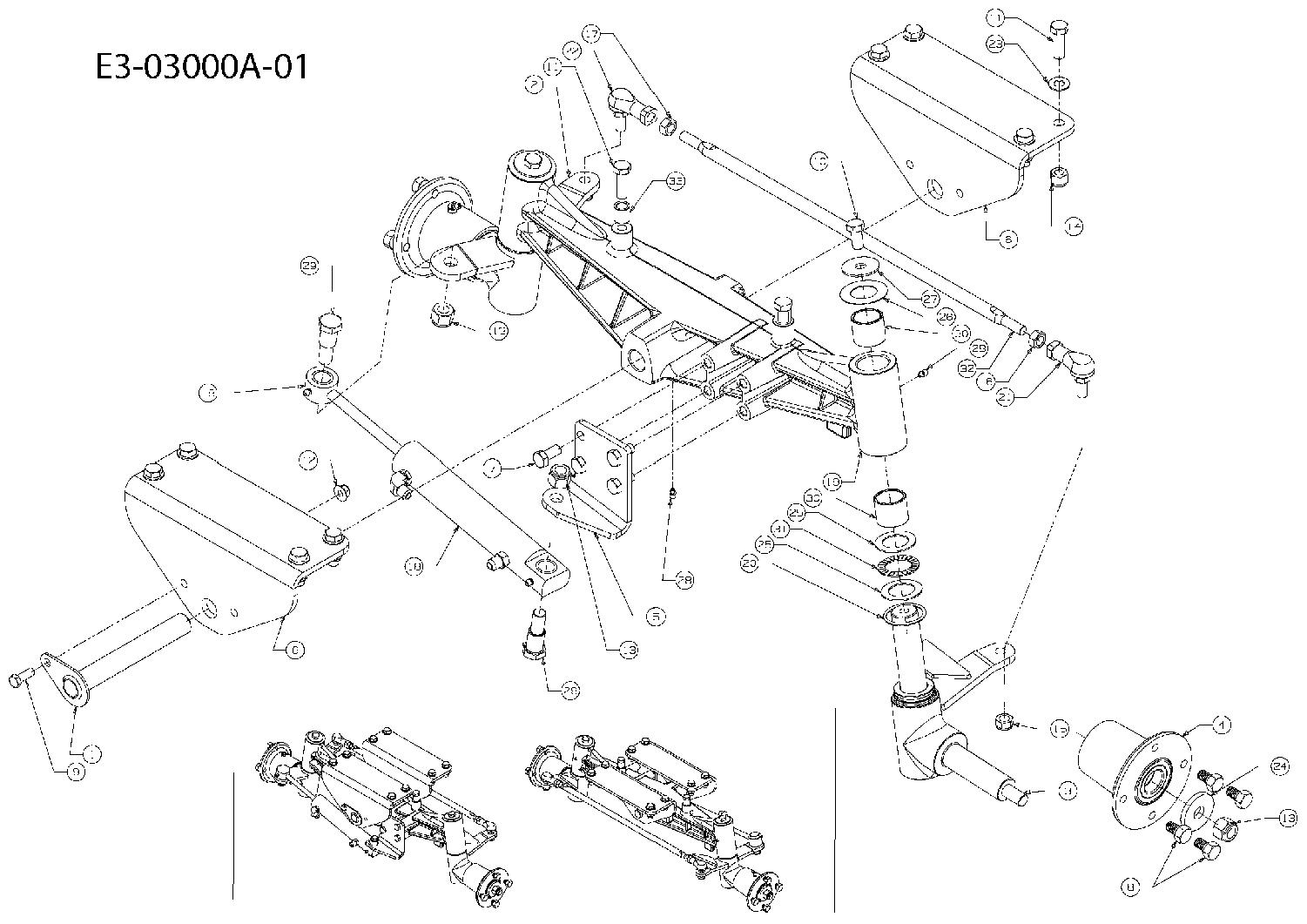

Assembly drawing

Please use your mouse to zoom in and out for more detailed view

MTD009950

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref No Description Price
001 603-0721 PIN ASM-AXLE PIVOT £56.94 Add
002 603-0908B AXLE ASSY.LH.750 DIA. £161.70 Add
003 603-0909A AXLE ASSY.RH.750 DIA. £161.70 Add
004 619-3078A HUB ASM FRONT WHEEL N/A POA
005 703-05188 BRKT-CYLINDER £64.92 Add
006 703-05204 BRACKET £98.21 Add
007 710-04208 SCREW-HEX CAP M12-1.75X25 GR8 £57.36 Add
008 710-1808 BOLT-WHEEL LUG M12X1.75X14.48 £10.05 Add
009 710-3118 HHCS:3/8-16:1.00:GR5:LOCK £3.57 Add
010 710-3126 SCREW,HEX CAP N/A POA
011 710-3181 HHCS:1/2-13:1.50:GR5:STD £3.90 Add
012 712-04065 NUT £3.39 Add
013 712-3016 NUT:HEXLK:5/8-11:GR5:NYLON £19.34 Add
014 712-3083 NUT £2.38 Add
015 712-3103 NUT-FLANGED LOCK £11.95 Add
016 712-3104 NUT-FLANGED LOCK £4.97 Add
017 712-3105 NUT-FLANGED LOCK £4.97 Add
018 717-3502 CYLINDER-STEERING £295.79 Add
019 719-3163 AXLE-FRONT PIVOT £154.63 Add
020 721-0526 O-RING 1.374 X .139 £21.23 Add
021 723-0462 JOINT-RH THREAD BALL £71.38 Add
022 723-0463 JOINT-LH THREAD BALL £71.38 Add
023 736-0272 WASHER:FL:.510 X 1.000 X .060 £2.67 Add
024 736-0746 WASHER-THRUST .66X1.94X.25 £43.11 Add
025 736-0748 WASHER-THRUST 1.25X1.94X.063 £29.91 Add
026 736-0869 WASHER-FLAT 1.25X2.25X.04 £27.96 Add
027 736-3027 WASH:FL:.531 X 1.75 X .090 £3.64 Add
028 737-3000 FITTING LUBE 3/16 DRIVE TYPE £3.00 Add
029 738-04049 BOLT-SHOULDER .75X1.03 5000SER £60.48 Add
030 741-3110 BEARING-SLEEVE 1.25X1.50X1.25 £26.73 Add
031 741-3115 BEARING-THRUST 1.25X1.94X.78 £25.62 Add
032 747-3421 ROD-TIE LH/RH THRD £69.15 Add
033 750-04375 SPACER £18.39 Add
